MAGNETO (E24)
TS100ER 1980 (T) (E01 E02 E09 E24 E30)

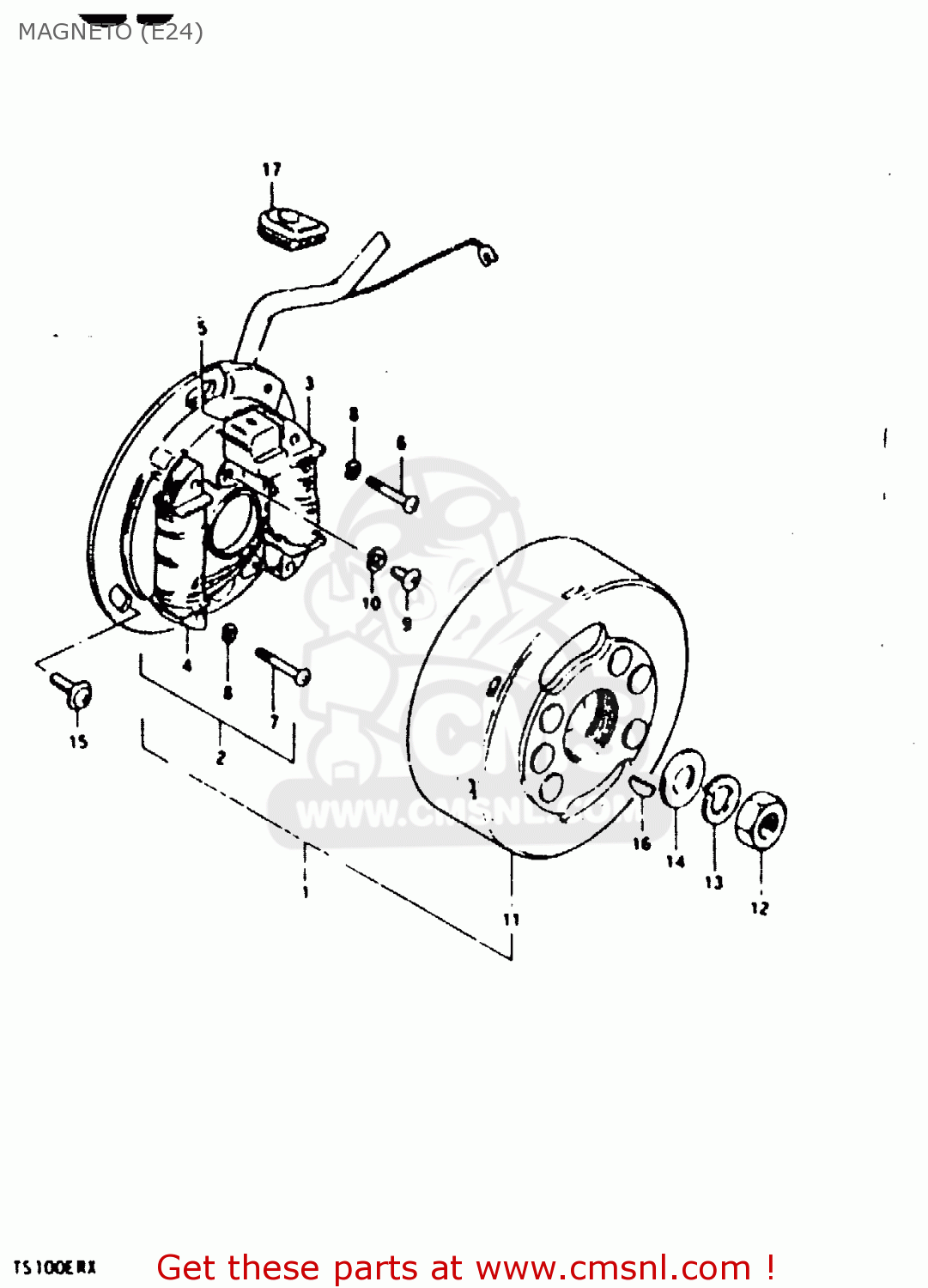

Magneto (e24) diagram TS100ER 1980 (T) (E01 E02 E09 E24 E30)
MAGNETO (E24) TS100ER 1980 (T) (E01 E02 E09 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210048530
ref: 1-1
MAGNETO ASSY
€ 233.50
1-2
3210048531
ref: 1-2
F.NO. TS1002-311072~
MAGNETO ASSY
€ 233.50
2-1
3210148530
ref: 2-1
STATOR ASSY
€ 233.50
2-2
3210148531
ref: 2-2
F.NO. TS1002-311072~
STATOR ASSY
€ 233.50
3-1
3212048530
ref: 3-1
COIL, LIGHTING
€ 0.00
3-2
3212048531
ref: 3-2
F.NO. TS1002-311072~
COIL, LIGHTING
€ 0.00
4
3214048530
ref: 4
COIL
€ 0.00
5
3215048520
ref: 5
COIL,PULSER
€ 26.50
6
0211204258
ref: 6
SCREW 4X25
€ 2.00
7
0211204168
ref: 7
SCREW
€ 1.00
8
0832121048
ref: 8
LOCK WASHER
€ 2.00
9
0211205088
ref: 9
SCREW
€ 2.00
10
0832121058
ref: 10
LOCK WASHER
€ 2.00
11
3210248530
ref: 11
ROTOR
€ 233.50
12
0914010003
ref: 12
NUT (10MM)
€ 3.50
13
0832121106
ref: 13
LOCK WASHER
€ 3.00
14
0832221108
ref: 14
WASHER
€ 2.50
15
0913906011
ref: 15
SCREW
€ 2.00
16
0834131039
ref: 16
KEY
€ 2.00
17
0930909007
ref: 17
GROMMET
€ 2.50
