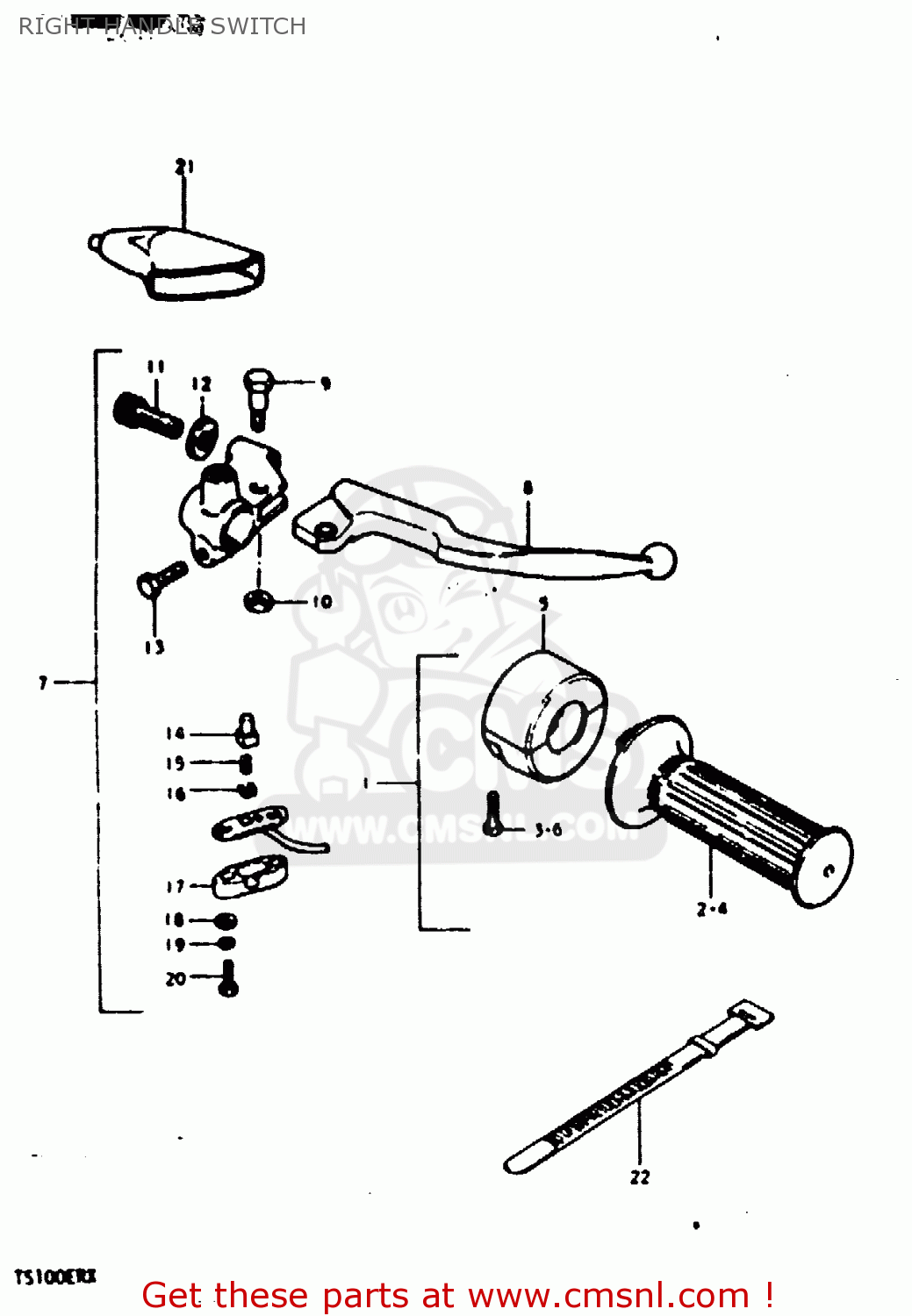

RIGHT HANDLE SWITCH

ref

part #

description

quantity

1

5710048000
ref: 1
MODEL T

GRIP ASSY, THROTTLE

€ 57.50

2

5711030501
ref: 2
MODEL T

GRIP,THROTTLE

€ 22.50

3

0211205258
ref: 3
MODEL T

SCREW

€ 2.00

4

5711030501
ref: 4
MODEL X

GRIP,THROTTLE

€ 22.50

5

5710030550
ref: 5
MODEL X

CASE ASSY,THROTTLE

€ 35.00

6

0211205258
ref: 6
MODEL X

SCREW

€ 2.00

7

5730048500
ref: 7

LEVER ASSY,BRAKE

€ 52.00

8

5742026500
ref: 8

LEVER,BRAKE

€ 29.00

9

5743111011
ref: 9

BOLT,LEVER

€ 6.00

10

0831921068
ref: 10

NUT 6MM

€ 2.00

11

5744126010
ref: 11

ADJUSTER,CABLE

€ 4.00

12

5744211010
ref: 12

NUT,CABLE ADJUSTER

€ 4.00

13

0110706208
ref: 13

BOLT

€ 2.00

14

5746118600
ref: 14
TS100ERT(E2, E24, E3

HOLDER

€ 4.50

15

5746218600
ref: 15
TS100ERT(E2, E24, E3

SPRING

€ 4.50

16

5746318600
ref: 16
TS100ERT(E2, E24, E3

PLATE

€ 4.50

17

5748133010
ref: 17
TS100ERT(E2, E24, E3

COVER,FR BK TERMINAL BASE

€ 19.50

18

0832221038
ref: 18
TS100ERT(E2, E24, E3

WASHER

€ 2.00

19

0832121038
ref: 19
TS100ERT(E2, E24, E3

LOCK WASHER

€ 1.50

20

0912503105
ref: 20
TS100ERT(E2, E24, E3

SCREW

€ 2.50

21

5734140001
ref: 21

COVER,CLUTCH LEVER

€ 7.50

22

0940712402
ref: 22

CLAMP(L:120)

€ 3.00

all assemblies
