LEFT HANDLE SWITCH (TS100ERT)

TS100ER 1980 (T) (E01 E02 E09 E24 E30)

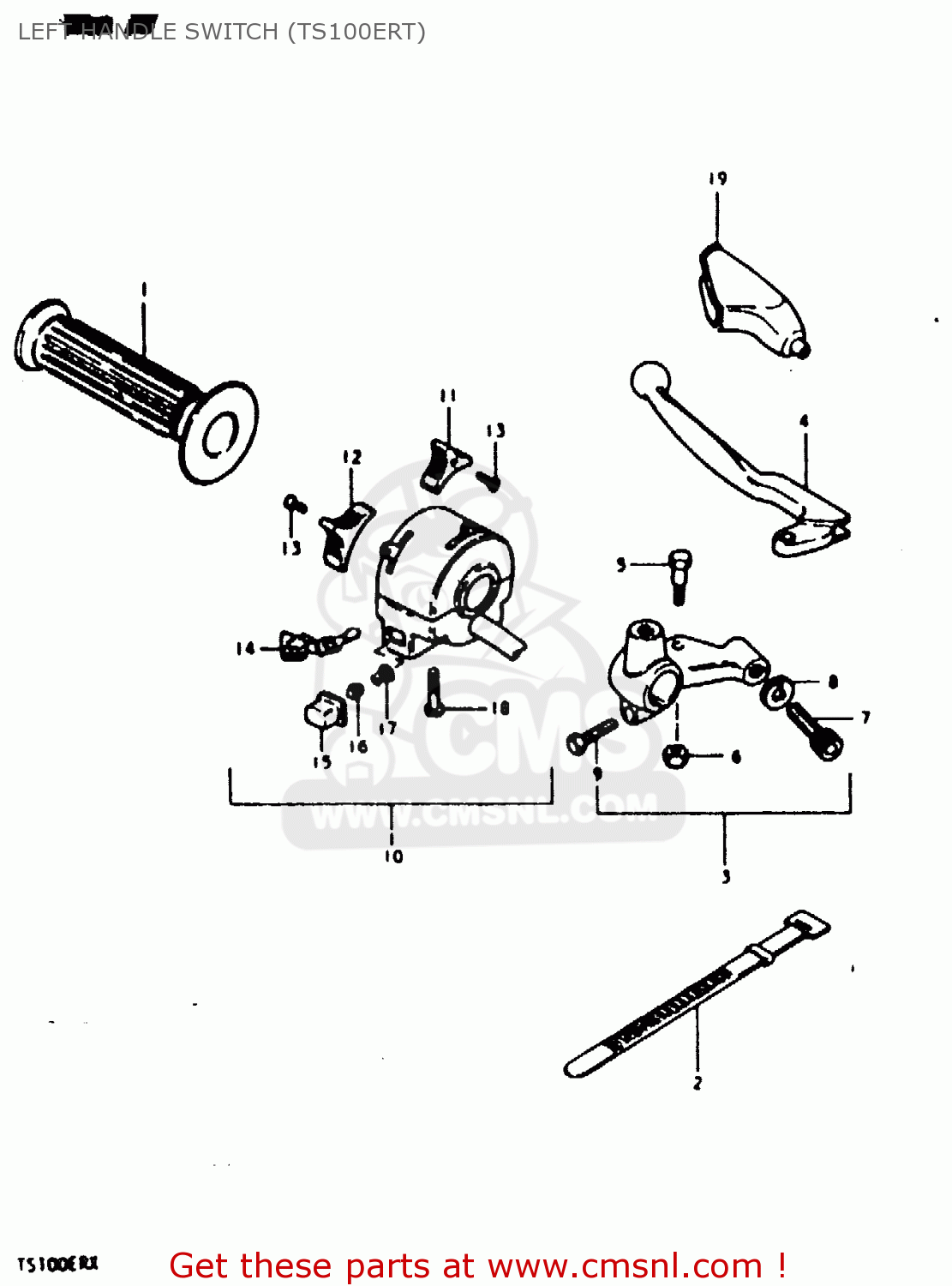

Left handle switch (ts100ert) diagram TS100ER 1980 (T) (E01 E02 E09 E24 E30)

prices are in EUR

ref

part #

description

quantity

5721145020
ref: 1

GRIP,L

€ 9.00

0940712402
ref: 2

CLAMP(L:120)

€ 3.00

5750048500
ref: 3

LEVER ASSY,CLUTCH

€ 50.50

5762026500
ref: 4

LEVER,CLUTCH

€ 28.50

5743111011
ref: 5

BOLT,LEVER

€ 6.00

0831921068
ref: 6

NUT 6MM

€ 2.00

5744126010
ref: 7

ADJUSTER,CABLE

€ 4.00

5744211010
ref: 8

NUT,CABLE ADJUSTER

€ 4.00

0110706208
ref: 9

BOLT

€ 2.00

3740048001
ref: 10

SWITCH ASSY,HANDLE,L

€ 126.00

3741145012
ref: 11

KNOB,LIGHTING SWITCH

€ 4.50

3742145012
ref: 12

KNOB,DIMMER SWITCH

€ 5.50

0212203068
ref: 13

SCREW

€ 1.00

3751345011
ref: 14

KNOB,TURNSIGNAL

€ 6.50

5737145000
ref: 15

BUTTON,HORN

€ 3.00

5737245000
ref: 16

CONTACT

€ 3.00

5738245000
ref: 17

SPRING

€ 2.50

0211205258
ref: 18

SCREW

€ 2.00

5734140001
ref: 19

COVER,CLUTCH LEVER

€ 7.50
