MAGNETO (E8)
TS100ER 1980 (T) (E01 E02 E09 E24 E30)

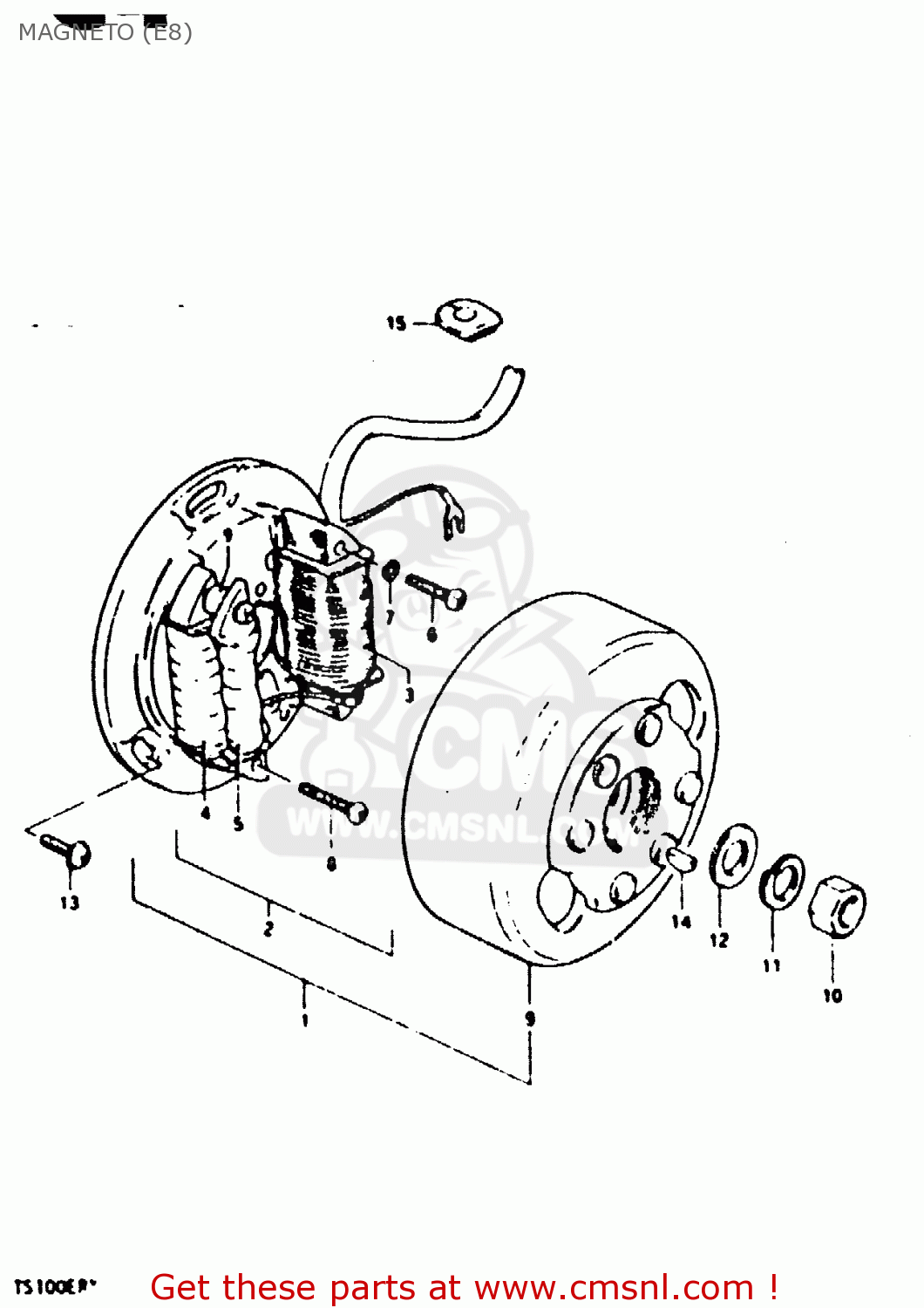

Magneto (e8) diagram TS100ER 1980 (T) (E01 E02 E09 E24 E30)
MAGNETO (E8) TS100ER 1980 (T) (E01 E02 E09 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1
3210039230
ref: 1
MAGNETO ASSY
€ 0.00
2
3210139230
ref: 2
STATOR ASSY
€ 0.00
3
3212048010
ref: 3
COIL,LIGHTING
€ 32.50
4
3214039230
ref: 4
COIL,PRIMARY
€ 52.00
5
3215039230
ref: 5
COIL,PULSER
€ 0.00
6
0211204258
ref: 6
SCREW 4X25
€ 2.00
7
0832121048
ref: 7
LOCK WASHER
€ 2.00
8
3235139210
ref: 8
SCREW
€ 2.50
9
3210239230
ref: 9
ROTOR
€ 0.00
10
0914010003
ref: 10
NUT (10MM)
€ 3.50
11
0832121108
ref: 11
LOCK WASHER
€ 2.00
12
0832221108
ref: 12
WASHER
€ 2.50
13
0913905011
ref: 13
SCREW(5X14)
€ 3.00
14
0834131039
ref: 14
KEY
€ 2.00
15
0930909007
ref: 15
GROMMET
€ 2.50
