SEAT
TS100ER 1980 (T) (E01 E02 E09 E24 E30)

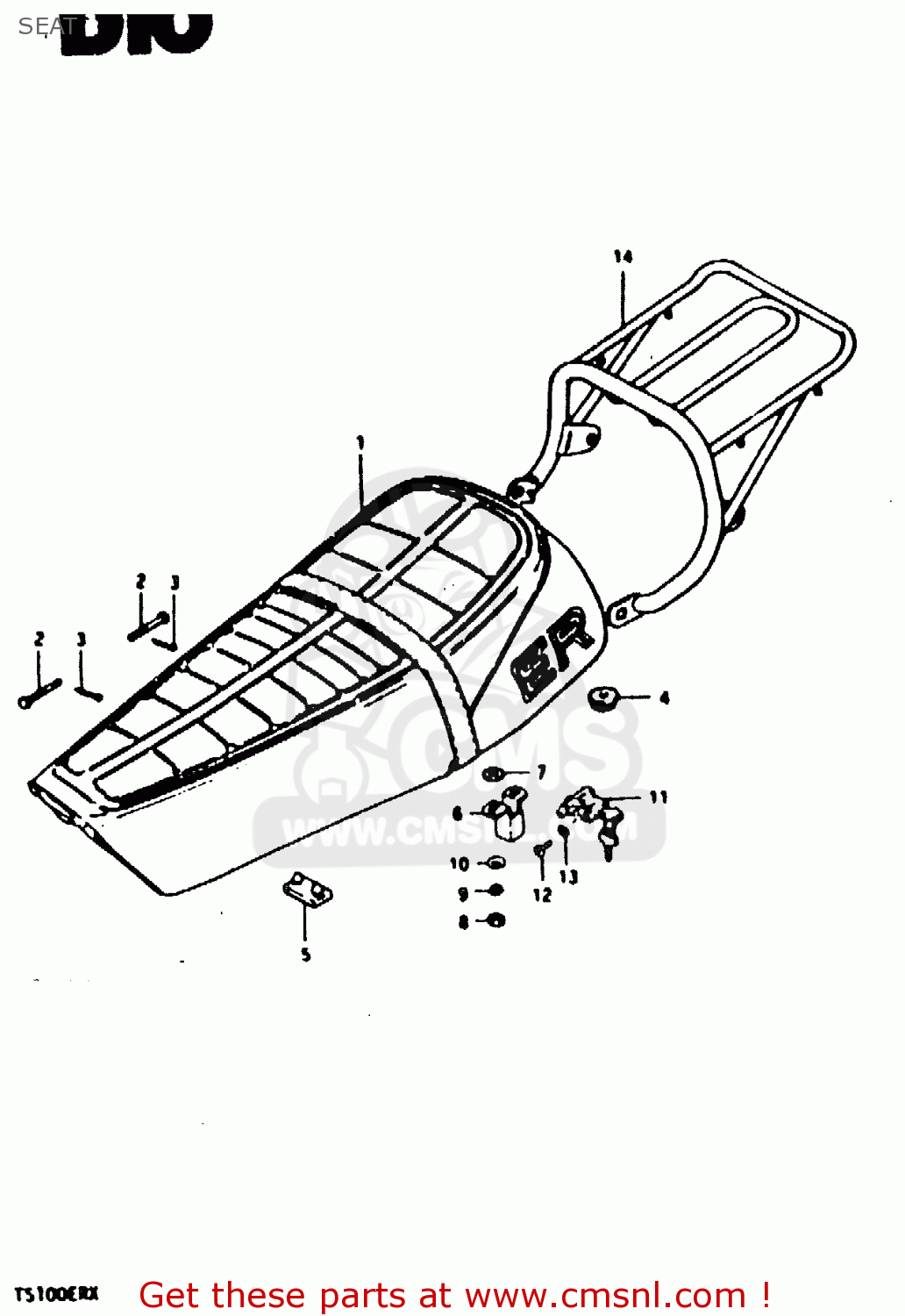

Seat diagram TS100ER 1980 (T) (E01 E02 E09 E24 E30)
SEAT TS100ER 1980 (T) (E01 E02 E09 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1
4510048500866
ref: 1
SEAT ASSY (BLACK)
€ 204.00
2
0920006018
ref: 2
PIN
€ 2.00
3
0411120158
ref: 3
PIN
€ 1.50
4
0932020004
ref: 4
CUSHION
€ 4.50
5
0932108010
ref: 5
CUSHION
€ 4.00
6
4521329300
ref: 6
PLATE,CLAMP GUIDE
€ 7.00
7
0916008043
ref: 7
WASHER(8.5X18X1)
€ 1.50
8
0831011068
ref: 8
NUT
€ 2.50
9
0832131068
ref: 9
LOCK WASHER
€ 2.50
10
0832221068
ref: 10
WASHER
€ 2.00
11
9570030832
ref: 11
LOCK ASSY,SEAT
€ 54.00
12
0211205128
ref: 12
SCREW
€ 2.50
13
0832121058
ref: 13
LOCK WASHER
€ 2.00
14
4631048500
ref: 14
OPT
CARRIER,SPORT
€ 156.50
