AIR CLEANER

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

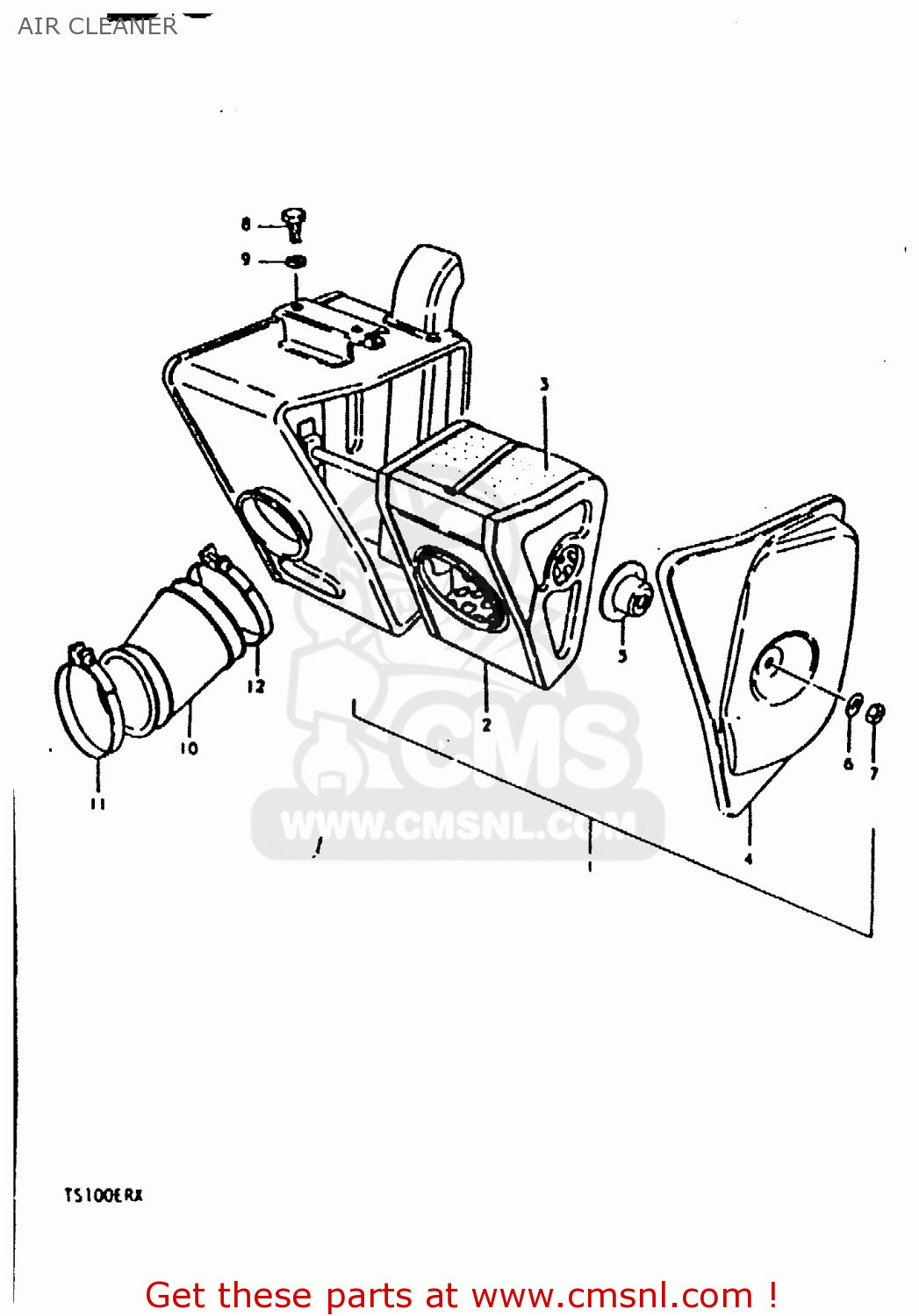

Air cleaner diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

AIR CLEANER TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

AIR CLEANER TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

1370048510
ref: 1

CLEANER ASSEMBLY,AIR

€ 137.00

2

1378029310
ref: 2

FILTER ASSY,AIR CLEANER

€ 25.00

3

1378129310
ref: 3

FILTER

€ 5.50

4

1377129310
ref: 4

CAP

€ 12.00

5

1379029310
ref: 5

SPACER

€ 7.00

6

0832221068
ref: 6

WASHER

€ 2.00

7

0831011068
ref: 7

NUT

€ 2.50

8

0110706128
ref: 8

BOLT

€ 2.00

9

0832221068
ref: 9

WASHER

€ 2.00

10

1388148000
ref: 10

HOSE,CARBURETOR AIR INLET

€ 15.00

11

0940252306
ref: 11

CLAMP

€ 6.00

12

0940260306
ref: 12

CLAMP

€ 4.50
