FUEL COCK

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

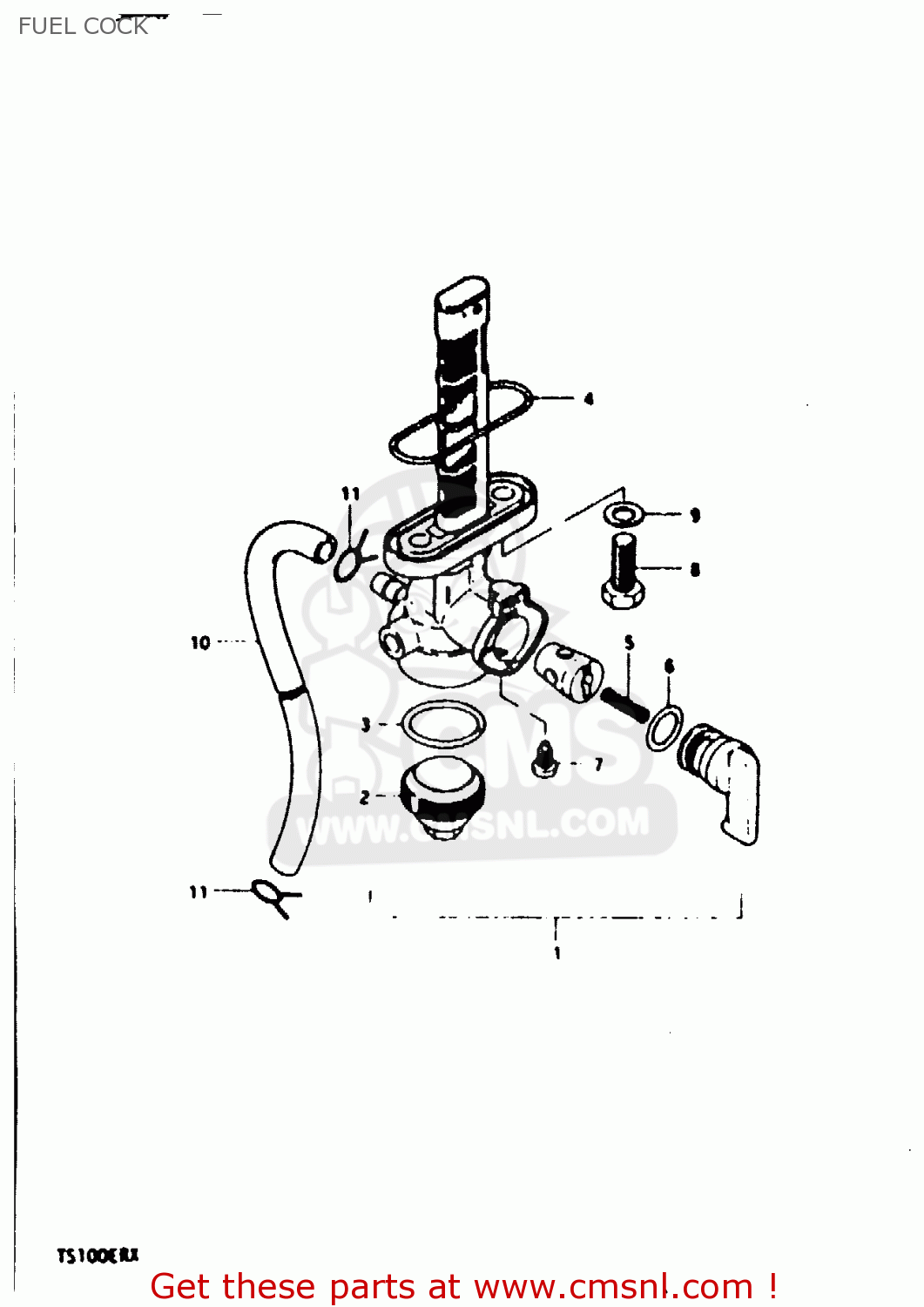

Fuel cock diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

FUEL COCK TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

FUEL COCK TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

4430022071
ref: 1

COCK ASSEMBLY,FUEL

€ 65.50

2

4434728071
ref: 2

CUP,STRAINER

€ 7.50

3

4434628070
ref: 3

GASKET,FILTER (NAS)

€ 2.50

4

4434828070
ref: 4

O RING,FUEL COCK

€ 4.50

5

4435732470
ref: 5

SPRING

€ 2.00

6

4435332470
ref: 6

O-RING

€ 7.50

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806006
ref: 8

BOLT(6X20)

€ 2.00

9

0916806010
ref: 9

GASKET

€ 2.00

10

0934305129
ref: 10

HOSE

€ 13.00

11

0940108402
ref: 11

CLIP

€ 1.50
