REAR BRAKE

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

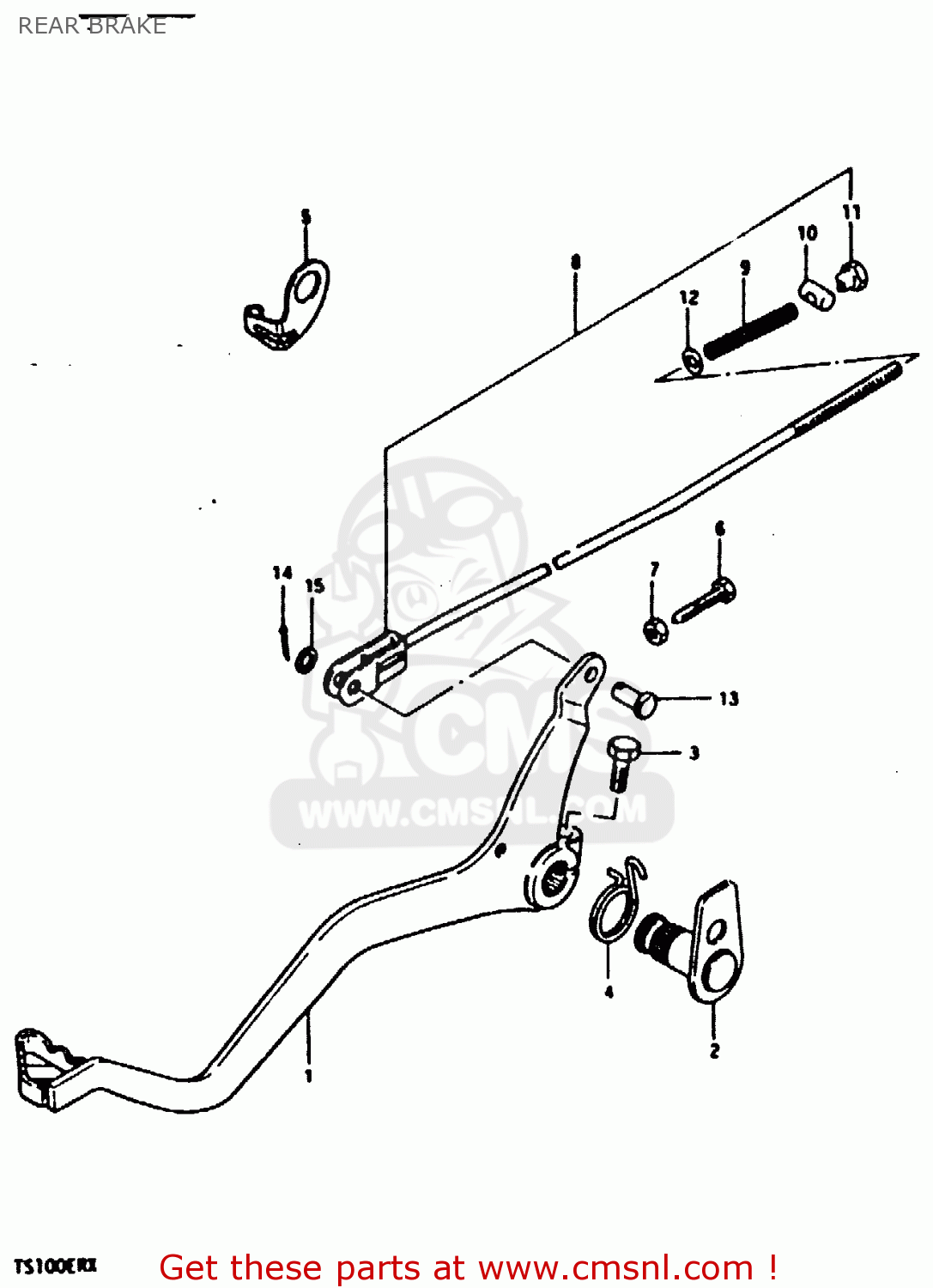

Rear brake diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

prices are in EUR

ref

part #

description

quantity

4311048210
ref: 1

PEDAL,BRAKE

€ 36.50

4312048210
ref: 2

ARM,BRAKE PEDAL

€ 19.00

0110706208
ref: 3

BOLT

€ 2.00

0944825001
ref: 4

SPRING

€ 20.50

4313448210
ref: 5

HOOK,STOP LAMP SWITCH SPRING

€ 0.00

0910006009
ref: 6

BOLT(6X23)

€ 1.50

0831011068
ref: 7

NUT

€ 2.50

4330048500
ref: 8

ROD ASSY,RR BRAKE

€ 14.50

0944009004
ref: 9

SPRING

€ 2.00

0920913003
ref: 10

PIN

€ 3.50

0915006001
ref: 11

NUT

€ 3.50

0832221068
ref: 12

WASHER

€ 2.00

0920006013
ref: 13

PIN(L:13.5)

€ 2.00

0411120208
ref: 14

PIN 20X20

€ 1.50

0832221068
ref: 15

WASHER

€ 2.00
