BATTERY

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

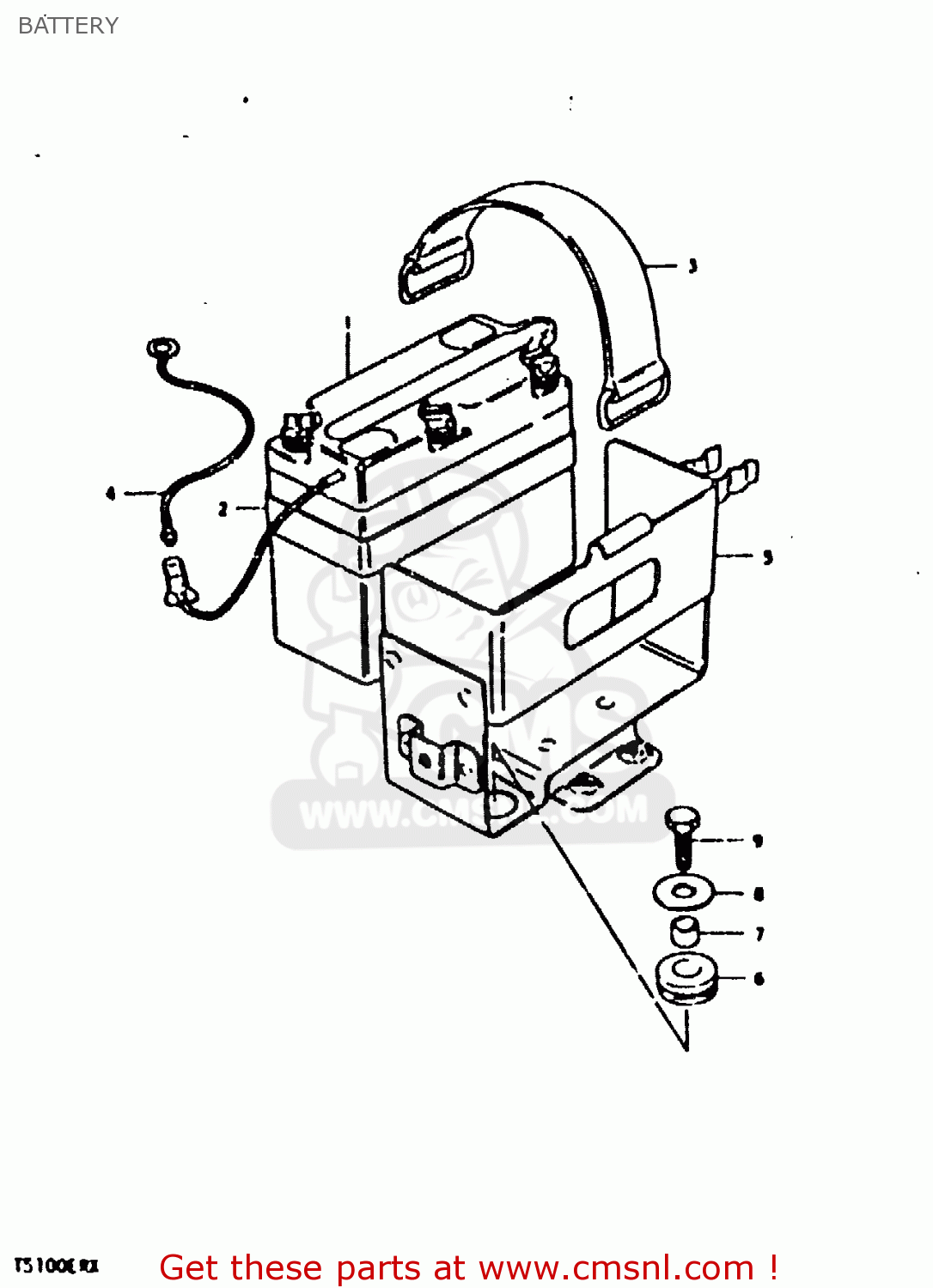

Battery diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

BATTERY TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

BATTERY TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

3361003610
ref: 1

BATTERY(6N4B-2A,6V4.2AH)

€ 49.50

2

3365130000
ref: 2

PROTECTOR,BATTERY

€ 9.00

3

0946200043
ref: 3

BAND

€ 4.50

4

3686227690
ref: 4

LEAD WIRE

€ 9.00

5-1

4154048001
ref: 5-1

HOLDER,BATTERY

€ 44.00

5-2

NOTUSED
ref: 5-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6

0932008007
ref: 6

CUSHION

€ 4.00

7

0918007006
ref: 7

SPACER (7*9*7)

€ 0.00

8

0916006027
ref: 8

WASHER (6.5X20X1.2)

€ 2.00

9

0110706168
ref: 9

BOLT, UPPER

€ 3.00
