MAGNETO (TS100ERT)

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

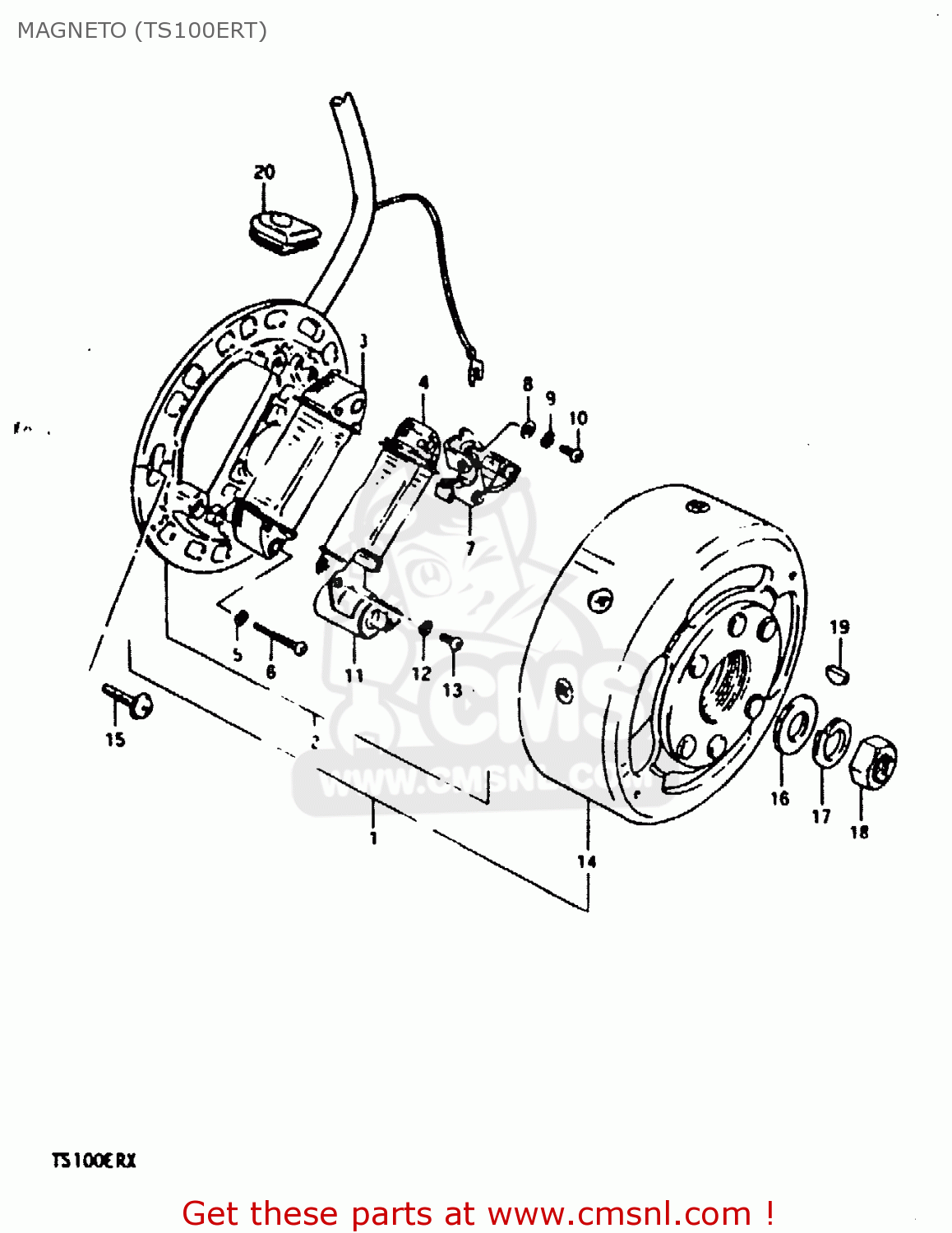

Magneto (ts100ert) diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

prices are in EUR

ref

part #

description

quantity

3210048010
ref: 1

MAGNETO ASSY

€ 84.00

3210148010
ref: 2

STARTER ASSY

€ 84.00

3212048010
ref: 3

COIL,LIGHTING

€ 32.50

3214048010
ref: 4

COIL,PRIMARY

€ 60.50

0832121048
ref: 5

LOCK WASHER

€ 2.00

0211204308
ref: 6

SCREW (4X30)

€ 1.50

3224043012
ref: 7

POINT ASSY,CONTACT

€ 18.50

0832221048
ref: 8

WASHER

€ 2.00

0832121048
ref: 9

LOCK WASHER

€ 2.00

0912504001
ref: 10

SCREW(4X10)

€ 4.50

3234143012
ref: 11

CONDENSER

€ 12.50

0832121048
ref: 12

LOCK WASHER

€ 2.00

0211204088
ref: 13

SCREW

€ 1.50

3210248010
ref: 14

ROTOR

€ 211.50

0913905011
ref: 15

SCREW(5X14)

€ 3.00

0832221108
ref: 16

WASHER

€ 2.50

0832121108
ref: 17

LOCK WASHER

€ 2.00

0914010003
ref: 18

NUT (10MM)

€ 3.50

0834131039
ref: 19

KEY

€ 2.00

0930909007
ref: 20

GROMMET

€ 2.50
