SEAT

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

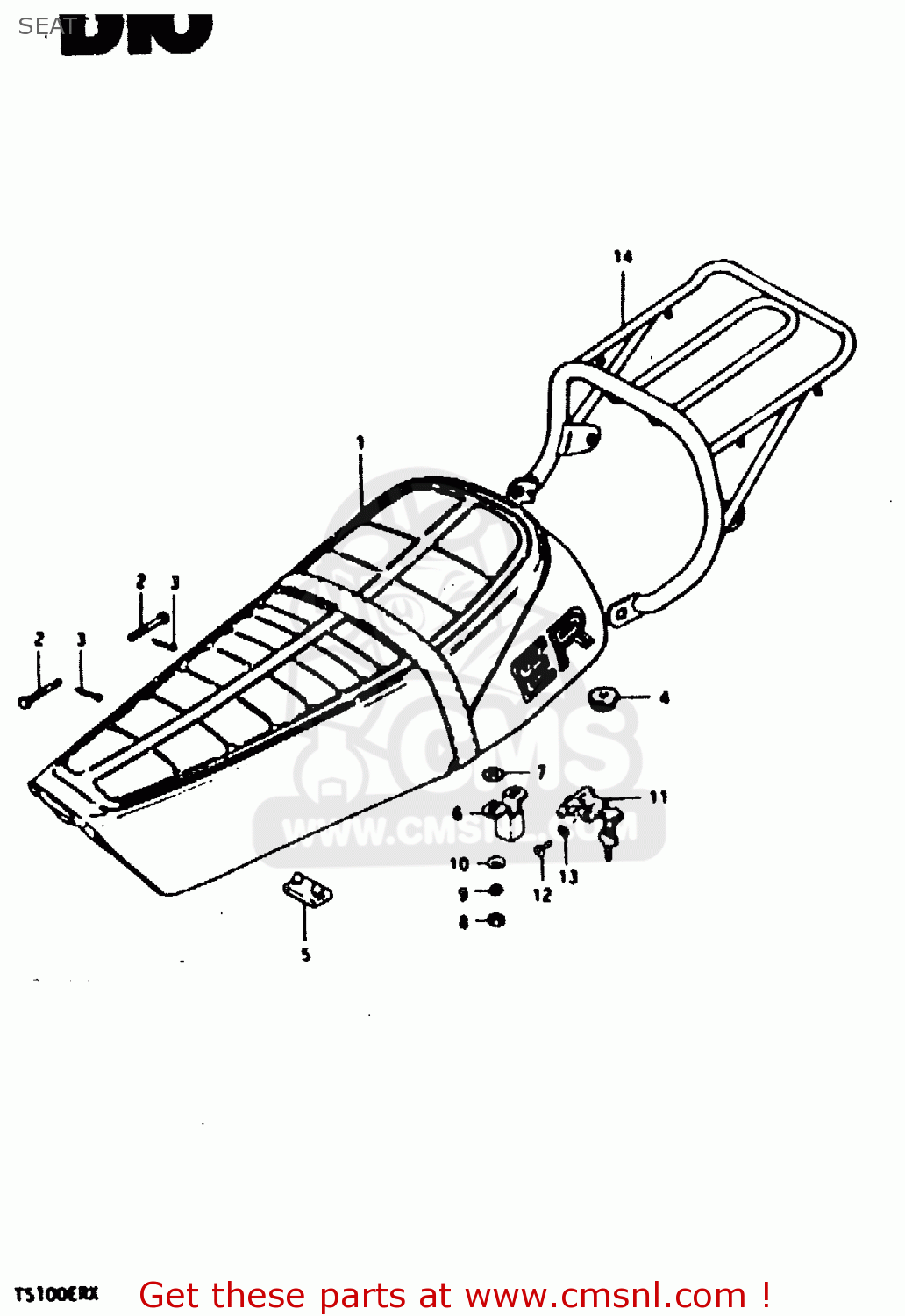

Seat diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

prices are in EUR

ref

part #

description

quantity

4510048500866
ref: 1

SEAT ASSY (BLACK)

€ 204.00

0920006018
ref: 2

PIN

€ 2.00

0411120158
ref: 3

PIN

€ 1.50

0932020004
ref: 4

CUSHION

€ 4.50

0932108010
ref: 5

CUSHION

€ 4.00

4521329300
ref: 6

PLATE,CLAMP GUIDE

€ 7.50

0916008043
ref: 7

WASHER(8.5X18X1)

€ 1.50

0831011068
ref: 8

NUT

€ 2.50

0832131068
ref: 9

LOCK WASHER

€ 2.50

0832221068
ref: 10

WASHER

€ 2.00

9570030832
ref: 11

LOCK ASSY,SEAT

€ 54.00

0211205128
ref: 12

SCREW

€ 2.50

0832121058
ref: 13

LOCK WASHER

€ 2.00

4631048500
ref: 14
OPT

CARRIER,SPORT

€ 156.50
