HEADLAMP HOUSING - FRONT FENDER

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

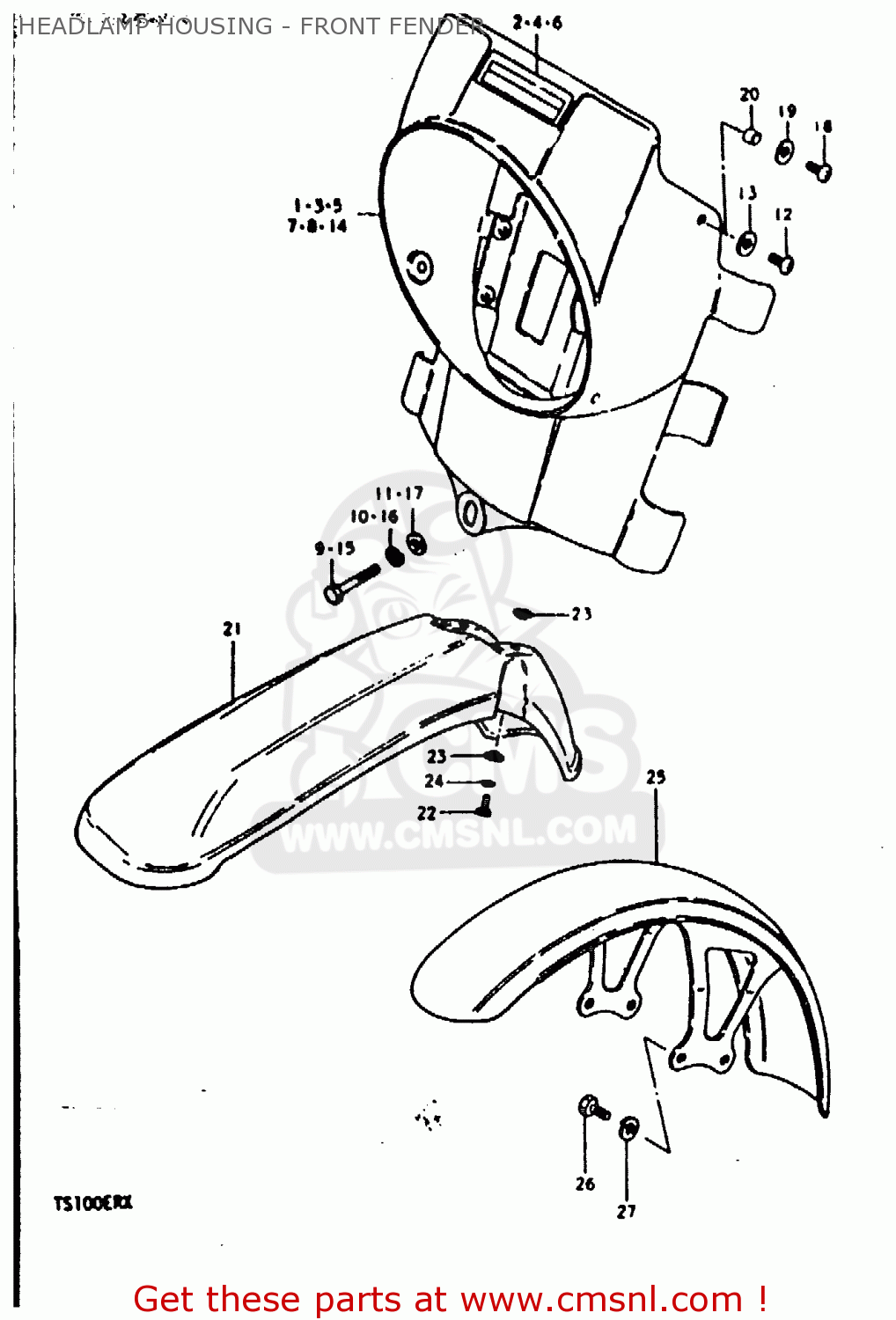

Headlamp housing - front fender diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

HEADLAMP HOUSING - FRONT FENDER TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)
HEADLAMP HOUSING - FRONT FENDER TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)
HEADLAMP HOUSING - FRONT FENDER TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
518104850207P
ref: 1
MODEL T @r51810-4850
HOUSING, HEADLAMP (RED)
€ 62.00
2
682754850069F
ref: 2
MODEL T
TAPE, HOUSING
€ 5.00
3
518104850208Y
ref: 3
MODEL T @r51810-4850
HOUSING,HEADLAMP
€ 71.50
4
682754850069G
ref: 4
MODEL T
TAPE, HOUSING
€ 5.00
5
5181048502189
ref: 5
MODEL T @r51810-4850
HOUSING, HEADLAMP (WHITE)
€ 71.50
6
682754850067H
ref: 6
MODEL T
TAPE, HOUSING
€ 4.50
7
518104850205K
ref: 7
MODEL T @r51810-4850
HOUSING, HEADLAMP (BLUE)
€ 71.50
8
5181048502163
ref: 8
MODEL T @r51810-4850
HOUSING, HEADLAMP (YELLOW)
€ 71.50
9
0110706128
ref: 9
MODEL T
BOLT
0110706128
€ 2.00
10
0832121068
ref: 10
MODEL T
LOCK WASHER
0832121068
€ 2.50
11
0916006020
ref: 11
MODEL T
WASHER
0916006020
€ 2.00
12
0211205128
ref: 12
MODEL T
SCREW
€ 2.50
13
0916005017
ref: 13
MODEL T
WASHER (5.5X16X1.2)
0916005017
€ 2.50
14-1
518104850407P
ref: 14-1
MODEL X
HOUSING, HEADLAMP (RED)
518104850407P
€ 62.00
14-2
518104850408Y
ref: 14-2
MODEL X
HOUSING,HEADLAMP
518104850408Y
€ 71.50
14-3
5181048504189
ref: 14-3
MODEL X
HOUSING, HEADLAMP (WHITE)
€ 71.50
14-4
5181048504163
ref: 14-4
MODEL X
HOUSING, HEADLAMP (YELLOW)
€ 71.50
15
0110706128
ref: 15
MODEL X
BOLT
0110706128
€ 2.00
16
0832121068
ref: 16
MODEL X
LOCK WASHER
0832121068
€ 2.50
17
0916006020
ref: 17
MODEL X
WASHER
0916006020
€ 2.00
18
0211205128
ref: 18
MODEL X
SCREW
€ 2.50
19
0916005006
ref: 19
MODEL X
WASHER (5.5X18X1.6)
0916005006
€ 4.00
20
0918005015
ref: 20
MODEL X
SPACER (5.5X8X4)
0918005015
€ 3.00
21-1
531112650007P
ref: 21-1
FENDER, FRONT (RED)
€ 112.00
21-2
531112650008Y
ref: 21-2
FENDER,FRONT
€ 112.00
21-3
5311126500189
ref: 21-3
FENDER, FRONT (WHITE)
5311126500189
€ 112.00
21-4
NOTUSED
ref: 21-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21-5
NOTUSED
ref: 21-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
22
0110706168
ref: 22
BOLT, UPPER
€ 3.00
23
0918006048
ref: 23
SPACER
0918006048
€ 2.00
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
25
NOTUSED
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
26
NOTUSED
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
