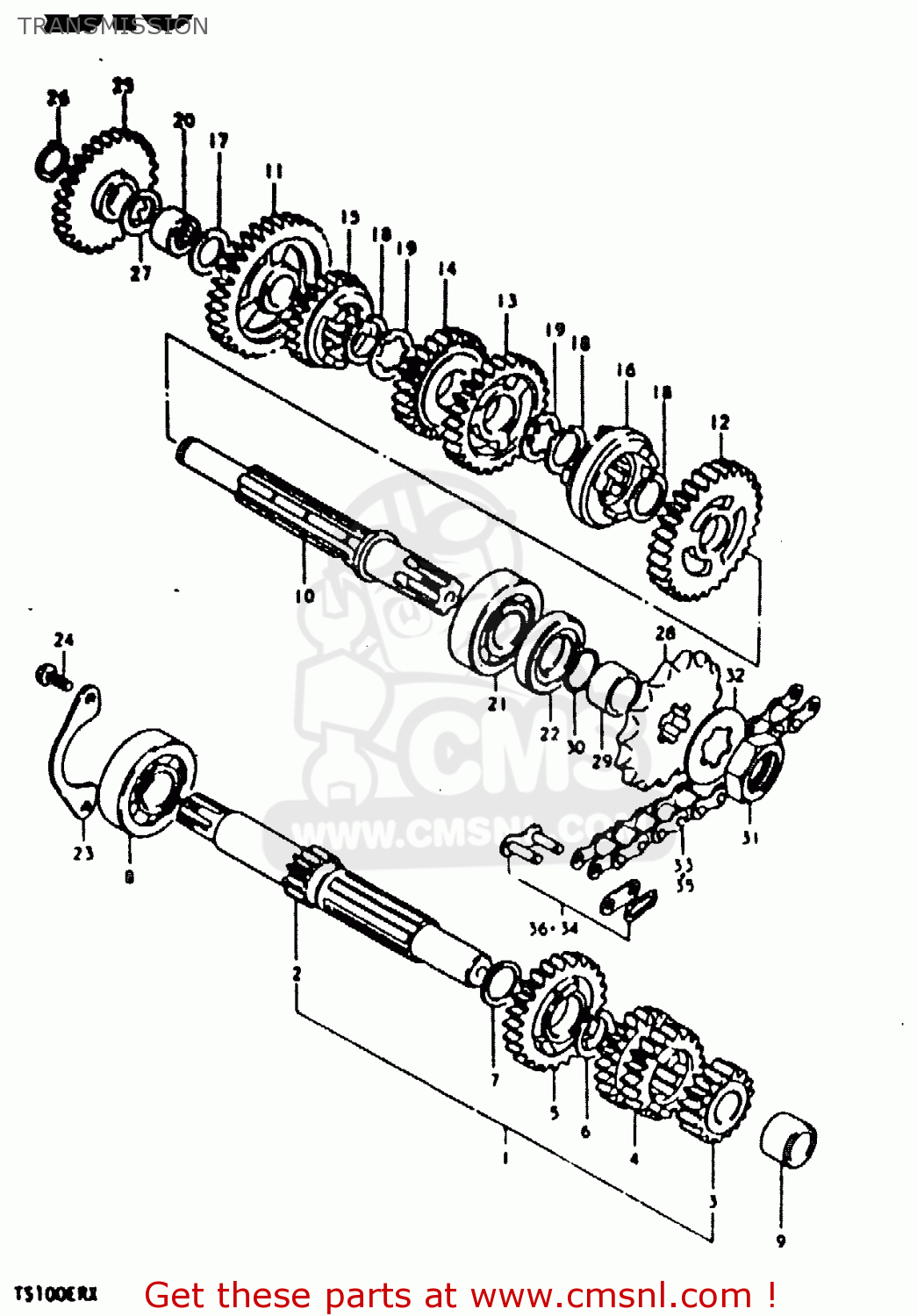

TRANSMISSION

ref

part #

description

quantity

1

2412048001
ref: 1

SHAFT ASSEMBLY,COUNTER

€ 0.00

2

2412148001
ref: 2

SHAFT,COUNTER

€ 71.50

3

2422148000
ref: 3

GEAR,SECOND DRIVE

€ 31.50

4

2423148000
ref: 4
NT:19/21

GEAR,THIRD/FOURTH DRIVE

€ 71.50

5

2425148001
ref: 5

GEAR,FIFTH DRIVE

€ 0.00

6

0938020007
ref: 6

CIRCLIP

€ 3.00

7

0821120261
ref: 7

WASHER

€ 2.50

8

0811362040
ref: 8

Bearing

€ 28.00

9

0930015009
ref: 9

BUSH(15X22X15)

€ 10.00

10

2413148000
ref: 10

SHAFT,GEAR SHIFT

€ 104.50

11

2431048001
ref: 11

GEAR,1ST DRIVEN

€ 54.50

12

2432148002
ref: 12

GEAR,SECOND DRIVEN

€ 48.00

13

2433148000
ref: 13

GEAR,THIRD DRIVEN

€ 50.00

14

2434148000
ref: 14

GEAR,FOURTH DRIVEN

€ 47.50

15

2435148000
ref: 15

GEAR,FIFTH DRIVEN

€ 44.00

16

2442148000
ref: 16

WHEEL,SECOND DRIVEN GEAR

€ 0.00

17

0821115261
ref: 17

WASHER,THRUST

€ 2.50

18

0938020007
ref: 18

CIRCLIP

€ 3.00

19

0916720011
ref: 19

WASHER,LOCK

€ 2.50

20

0926315012
ref: 20

BEARING(15X22X12)

€ 11.50

21

0811362040
ref: 21

Bearing

€ 28.00

22

0928325035
ref: 22

SEAL,OIL(25X40X7)

€ 6.50

23

2474148000
ref: 23

RETAINER,CNTR SHAFT BEARING

€ 5.50

24

0211206128
ref: 24

SCREW 6X12

€ 2.00

25

2626028002
ref: 25

GEAR,KICK STARTER IDLE

€ 38.00

26

0833131159
ref: 26

CIRCLIP,15MM

€ 2.00

27

0821115261
ref: 27

WASHER,THRUST

€ 2.50

28

2751148100
ref: 28

SPROCKET,ENGINE

€ 33.00

29

0918020039
ref: 29

SPACER(20X25X12.5)

€ 9.50

30

0928020001
ref: 30

O RING(D:1,ID:19.5)

€ 2.00

31

0914020001
ref: 31

NUT

€ 3.50

32

0916720006
ref: 32

WASHER,LOCK

€ 3.00

33

2760025010
ref: 33
MODEL T, 428*114L

CHAIN ASSEMBLY,DRIVE

€ 46.50

34

2762020210
ref: 34
MODEL T, TO 27620-12

JOINT ASSEMBLY,CHAIN

€ 7.00

35

2760025050
ref: 35
MODEL X, 428*114L

CHAIN ASSEMBLY,DRIVE

€ 46.50

36

2762028011
ref: 36
MODEL X

JOINT ASSEMBLY,CHAIN

€ 3.00

all assemblies
