CRANKCASE

TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

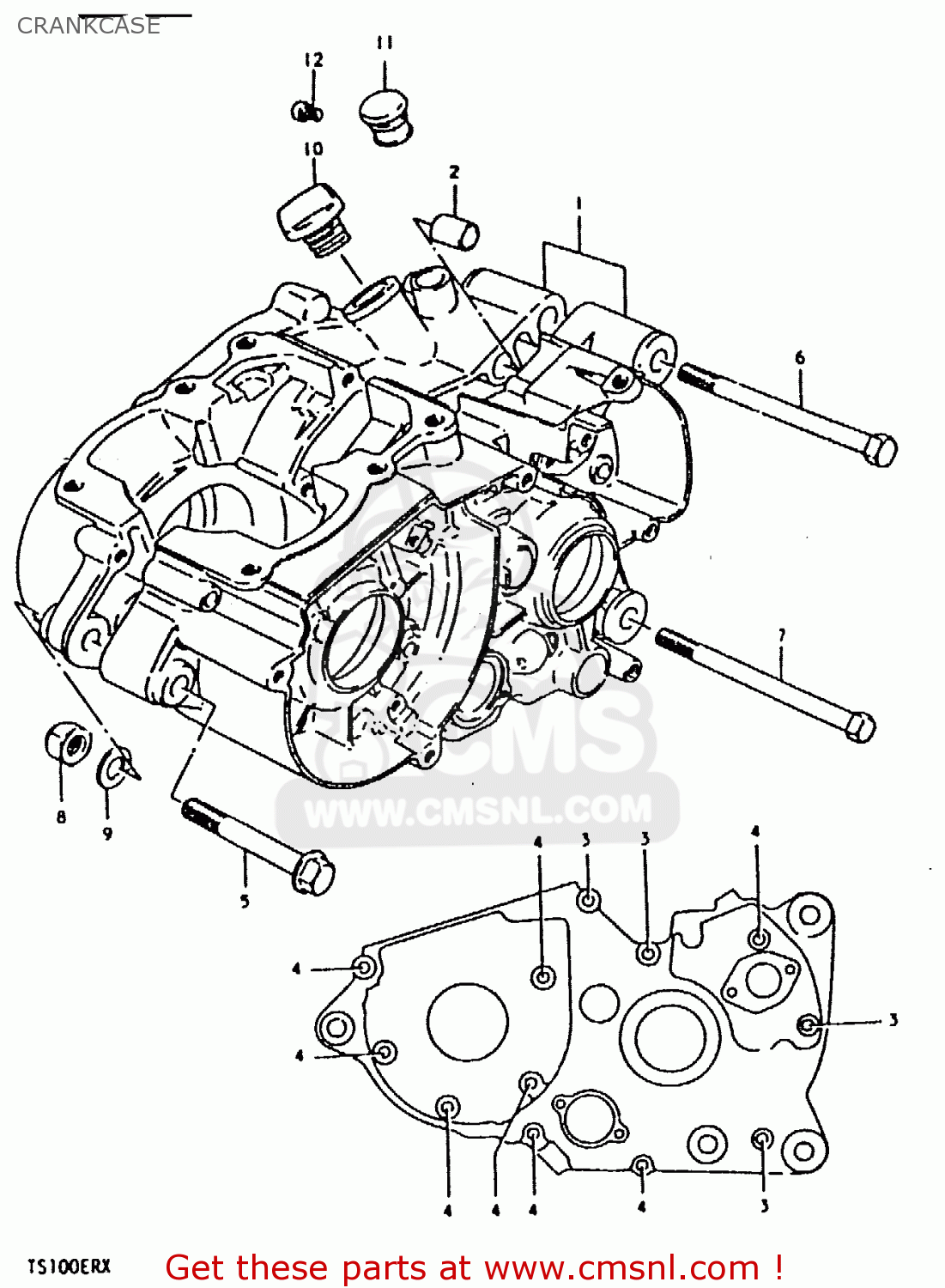

Crankcase diagram TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

CRANKCASE TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

CRANKCASE TS100ERX 1981 (ERX) (E01 E02 E08 E09 E10 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

1130048812
ref: 1

CRANKCASE ASSEMBLY

€ 497.00

2

0920613001
ref: 2

PIN

€ 2.50

3

0211206508
ref: 3

SCREW

€ 2.50

4

0211206608
ref: 4

SCREW 6X60

€ 2.50

5

0151710758
ref: 5

BOLT (10X75)

€ 4.50

6

0910010009
ref: 6

BOLT(10X110)

€ 3.50

7

0910010016
ref: 7

BOLT

€ 3.00

8

0915910011
ref: 8

NUT

€ 3.00

9

0832211108
ref: 9

WASHER

€ 2.50

10

0925919001
ref: 10

PLUG

€ 6.00

11

0925014002
ref: 11

Plug

€ 4.50

12

0211206068
ref: 12

SCREW,6X6

€ 2.00
