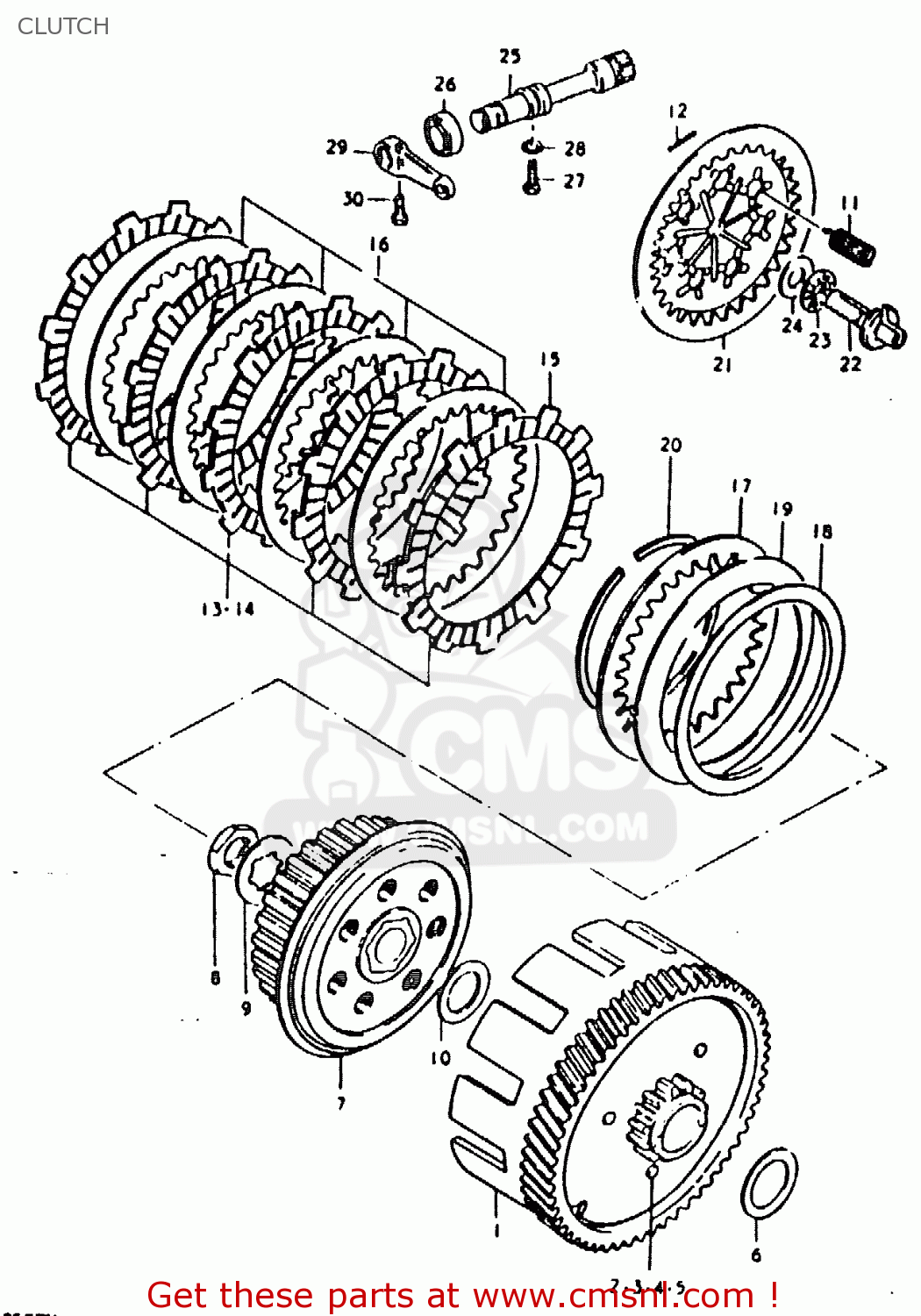

CLUTCH

ref

part #

description

quantity

1

2120048001
ref: 1
NT:57/17

GEAR ASSEMBLY,PRIMARY DRIVE

€ 178.00

2

2123128040
ref: 2

DAMPER,PRIMARY DRIVEN

€ 2.50

3

2123228040
ref: 3

DAMPER,PRI DRIVEN GEAR NO.2

€ 5.00

4

2124128001
ref: 4

PLATE

€ 10.00

5

0502205249
ref: 5

RIVET

€ 1.00

6

0821120323
ref: 6
20X32X1

WASHER

€ 2.50

7-1

2141028000
ref: 7-1
~F.NO.302345

HUB,CLUTCH SLEEVE

€ 68.50

7-2

2141048000
ref: 7-2
F.N1 02346~

HUB,CLUTCH SLEEVE

€ 54.00

8

0914016001
ref: 8

NUT

€ 4.50

9

0916717002
ref: 9

WASHER,LOCK

€ 2.00

10

0821117282
ref: 10
17X28X1.5

WASHER

€ 3.00

11

0944312018
ref: 11

SPRING

€ 3.00

12

0926102001
ref: 12

PIN(2.5X19.8)

€ 1.50

13

2144128300
ref: 13

PLATE,CLUTCH DRIVE

€ 8.50

14

2144128300
ref: 14
F.NO.302346~

PLATE,CLUTCH DRIVE

€ 8.50

15

2144136200
ref: 15
F.NO.302346~

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

16

2145128000
ref: 16

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

17

2145136200
ref: 17
F.NO.302346~

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 5.00

18

2147136200
ref: 18
F.NO.302346~

SEAT,WAVE WASHER

€ 43.50

19

0916498001
ref: 19
F.NO.302346~

WASHER

€ 8.50

20

0938191001
ref: 20
F.NO.302346~

CIRCLIP

€ 10.00

21-1

2146028200
ref: 21-1
~F.NO.302345

PLATE,CLUTCH PRESSURE

€ 21.50

21-2

2146028000
ref: 21-2
F.NO.302346~

PLATE,CLUTCH PRESSURE

€ 21.50

22

2316548000
ref: 22

BACK,CLUTCH RELEASE

€ 20.00

23

0926310002
ref: 23

BEARING(10X22X2.8)

€ 8.50

24

0916010021
ref: 24
10.1X21.5X0.8

WASHER(10.1X21.4X0.8)

€ 3.00

25

2326148000
ref: 25

PINION,CLUTCH RELEASE

€ 28.50

26

0928512002
ref: 26

OIL SEAL

€ 7.00

27

0913506009
ref: 27

BOLT(6X12)

€ 2.00

28

0832221068
ref: 28

WASHER

€ 2.00

29

2327129300
ref: 29

ARM,CLUTCH RELEASE

€ 23.50

30

0110706208
ref: 30

BOLT

€ 2.00

all assemblies
