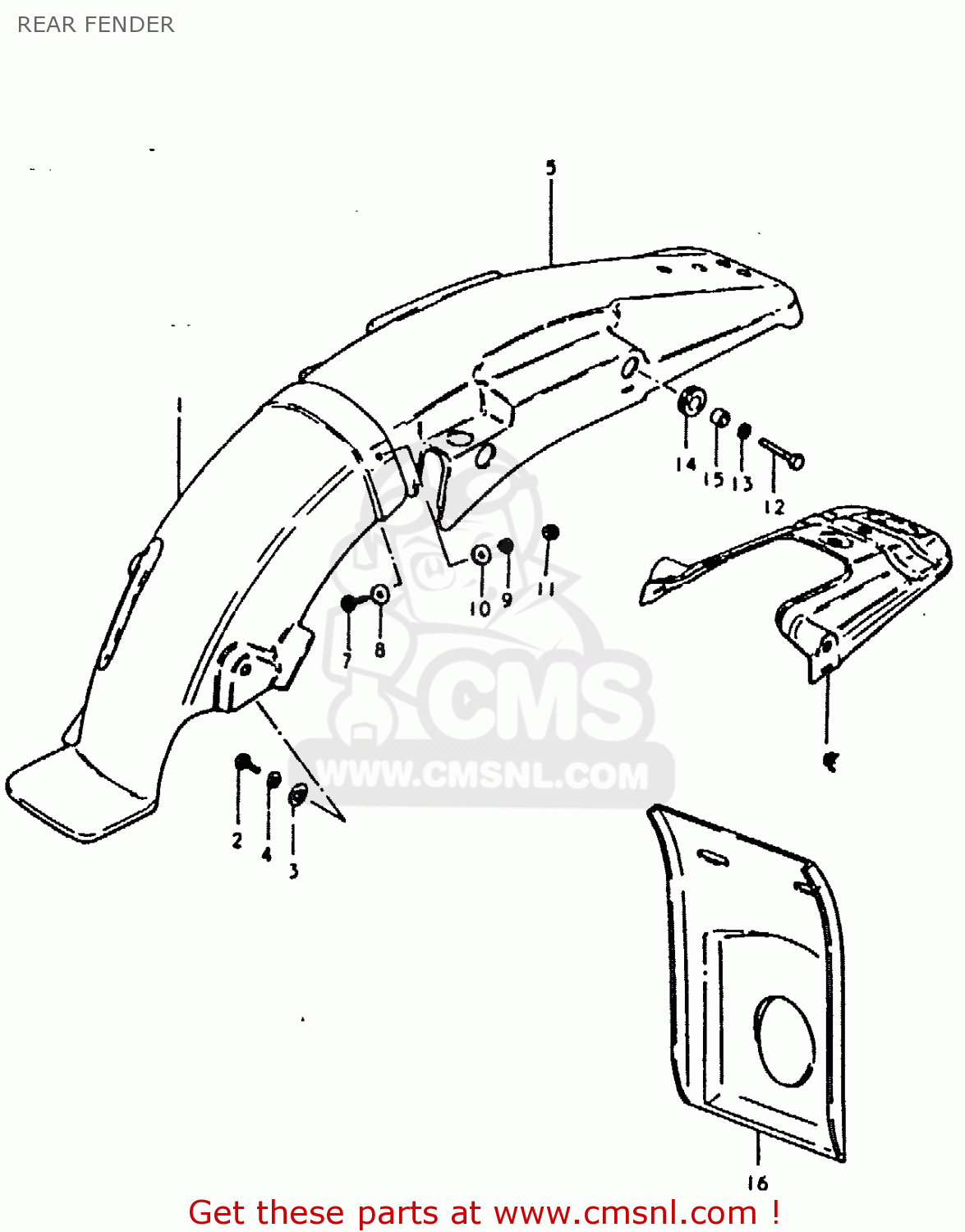

REAR FENDER

ref

part #

description

quantity

1

6311248500
ref: 1

BODY,REAR FENDER,FRONT

€ 0.00

2

0110706168
ref: 2

BOLT, UPPER

€ 3.00

3

0916906010
ref: 3

WASHER

€ 3.00

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5-1

631134850007P
ref: 5-1

FENDER, REAR

€ 261.50

5-2

631134850008Y
ref: 5-2

FENDER, REAR

€ 86.00

5-3

6311348500189
ref: 5-3

FENDER, REAR

€ 92.00

6

6312048500
ref: 6

REINFORCEMENT

€ 33.50

7

0110405168
ref: 7

BOLT

€ 1.50

8

0916005017
ref: 8
5.5X16X1.2

WASHER (5.5X16X1.2)

€ 2.50

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

0916005013
ref: 10
5.2X16X1

WASHER(5.2X16X1)

€ 1.50

11

0831011058
ref: 11

NUT

€ 2.50

12

0110708308
ref: 12

BOLT (8X30)

€ 2.50

13

0832121088
ref: 13

LOCK WASHER

€ 2.00

14

0932012011
ref: 14

CUSHION

€ 3.00

15

0918008021
ref: 15
8.2X11.8X7.5

SPACER (8.2X12X7.5)

€ 3.00

16

6333130601
ref: 16
OPT

FLAP,RR FENDER MUD

€ 0.00
