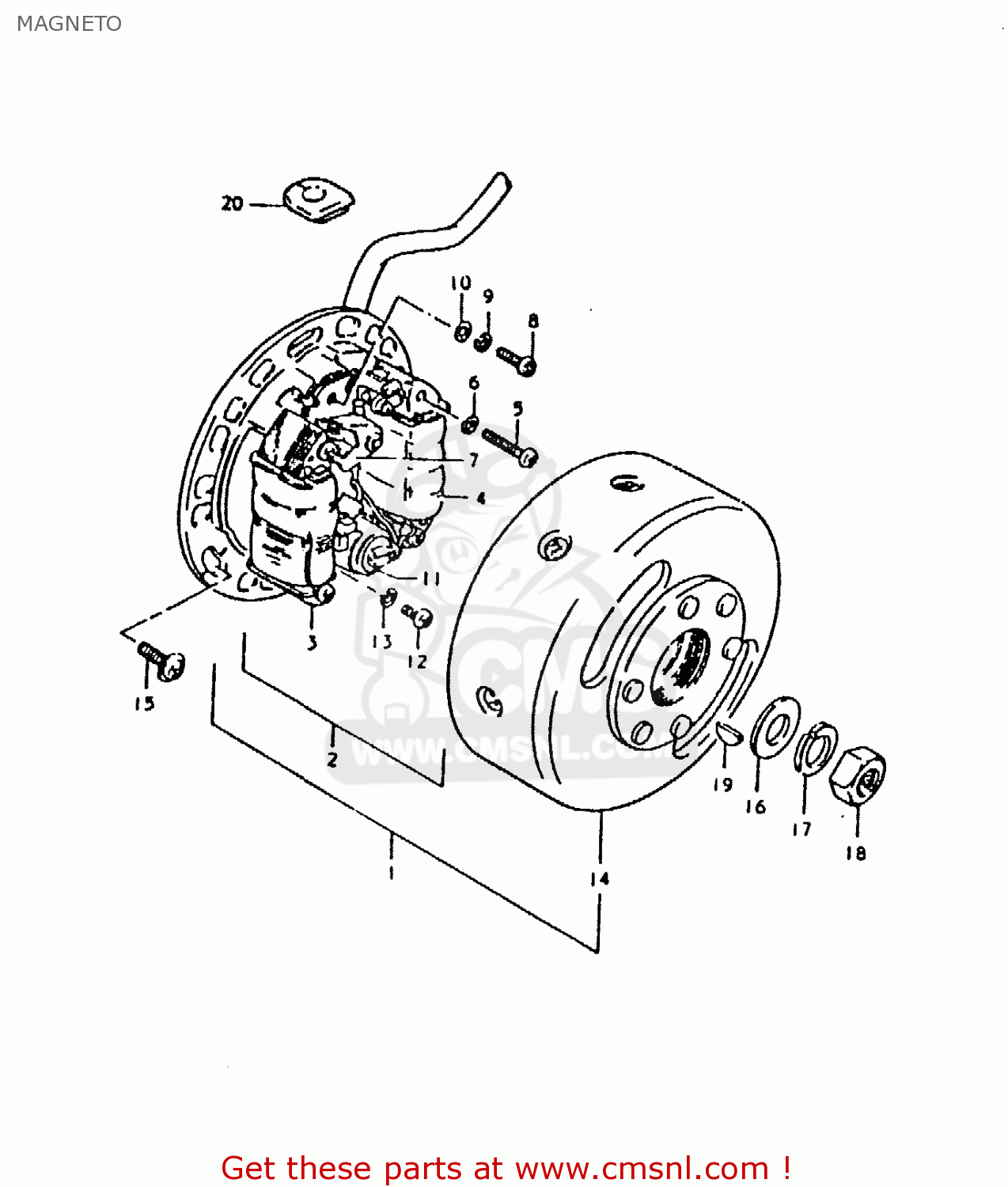

MAGNETO

ref

part #

description

quantity

1

3210048010
ref: 1

MAGNETO ASSY

€ 84.00

2

3210148010
ref: 2

STARTER ASSY

€ 84.00

3

3212048010
ref: 3

COIL,LIGHTING

€ 32.50

4

3214048010
ref: 4

COIL,PRIMARY

€ 60.50

5

0211104308
ref: 5

SCREW

€ 1.50

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7

3224043012
ref: 7

POINT ASSY,CONTACT

€ 18.50

8

0912504001
ref: 8

SCREW(4X10)

€ 4.50

9

0832121048
ref: 9

LOCK WASHER

€ 2.00

10

0832221048
ref: 10

WASHER

€ 2.00

11

3234143012
ref: 11

CONDENSER

€ 12.50

12

0211204088
ref: 12

SCREW

€ 1.50

13

0832121048
ref: 13

LOCK WASHER

€ 2.00

14

3210248010
ref: 14

ROTOR

€ 211.50

15

0913905011
ref: 15

SCREW(5X14)

€ 3.00

16

0832221108
ref: 16

WASHER

€ 2.50

17

0832121108
ref: 17

LOCK WASHER

€ 2.00

18

0914010003
ref: 18

NUT (10MM)

€ 3.50

19

0834131039
ref: 19

KEY

€ 2.00

20

0930909007
ref: 20

GROMMET

€ 2.50

all assemblies
