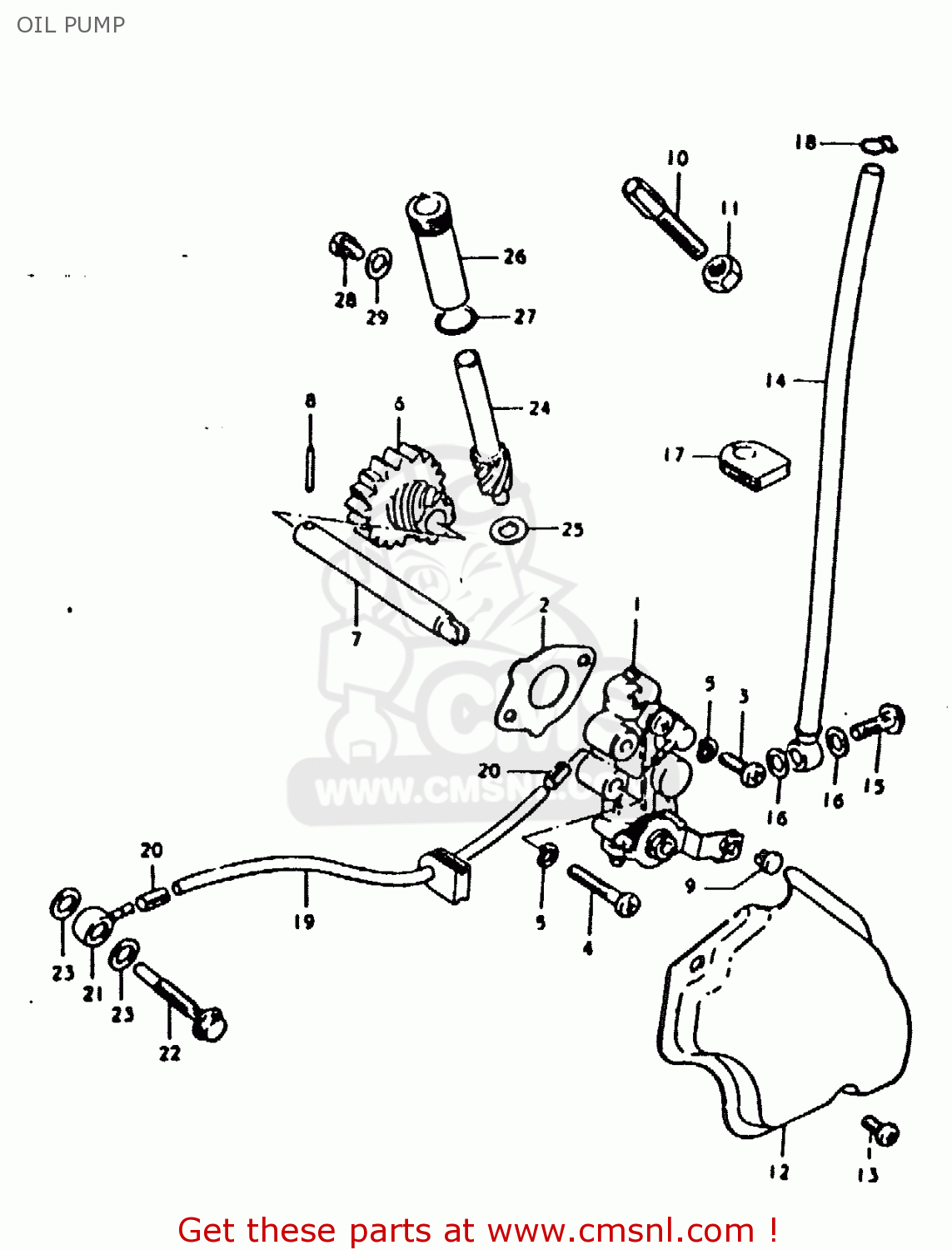

OIL PUMP

ref

part #

description

quantity

1

1610048010
ref: 1

PUMP ASSEMBLY,OIL

€ 245.50

2

1673103101
ref: 2

GASKET,OIL PUMP (NAS)

€ 2.50

3

0211205168
ref: 3

SCREW

€ 2.50

4

0211205308
ref: 4

SCREW

€ 1.50

5

0832121058
ref: 5

LOCK WASHER

€ 2.00

6

1632148030
ref: 6
NT:17

GEAR,OIL PUMP DRIVE

€ 14.50

7

1632248000
ref: 7

SHAFT,OIL PUMP DRIVE

€ 10.00

8

0926102001
ref: 8

PIN(2.5X19.8)

€ 1.50

9

1629203111
ref: 9

TERMINAL,CABLE

€ 3.50

10

0911908014
ref: 10

BOLT

€ 3.50

11

0831012088
ref: 11

NUT

€ 2.00

12

1138548000
ref: 12

CAP,OIL PUMP INSPECTION

€ 11.50

13

0211206108
ref: 13

SCREW

€ 1.50

14

1681030500
ref: 14

HOSE,OIL NO.1

€ 17.50

15

0936006003
ref: 15

UNION BOLT

€ 5.00

16

0916806004
ref: 16

GASKET(6.2X11X1).2 (NAS)

€ 1.50

17

0930908002
ref: 17

GROMMET

€ 3.00

18

0940108401
ref: 18

CLIP

€ 1.50

19

1682048001
ref: 19

HOSE,OIL NO.2

€ 6.00

20

0940104401
ref: 20

CLIP

€ 2.50

21

0936302001
ref: 21

UNION

€ 8.00

22

0936006009
ref: 22

UNION

€ 7.00

23

0916806004
ref: 23

GASKET(6.2X11X1).2 (NAS)

€ 1.50

24

2643148000
ref: 24
NT:10

GEAR,TACHOMETER DRIVEN(NT:10)

€ 19.50

25

0916008003
ref: 25
8X13.7X1

WASHER(8X13.7X1)

€ 2.00

26

2644148000
ref: 26

SLEEVE,TACHOMETER DRIVE GEAR

€ 15.00

27

0928010001
ref: 27

O RING(D:1.3,ID:9.6)

€ 2.00

28

0913506002
ref: 28

BOLT

€ 2.50

29

0832221068
ref: 29

WASHER

€ 2.00
