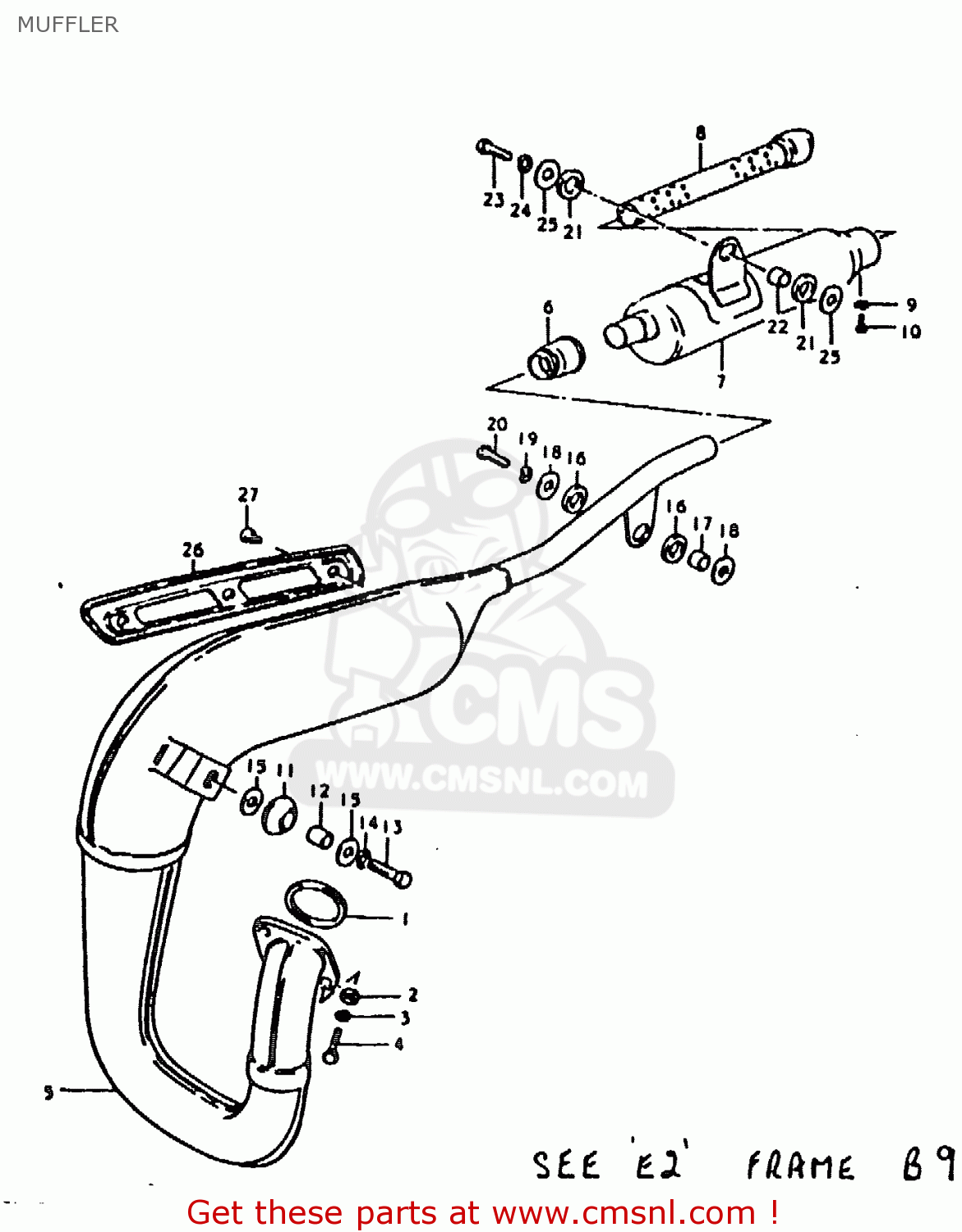

MUFFLER

ref

part #

description

quantity

1

1418111010
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

0832221068
ref: 2

WASHER

€ 2.00

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

0912806012
ref: 4

SCREW

€ 2.50

5

1431048500
ref: 5

BODY,MUFFLER

€ 520.50

6

1477148001
ref: 6

CONNECTOR,MUFFLER

€ 8.00

7

1430348001
ref: 7

MUFFLER ASSY, 2ND

€ 266.00

8

1451048000
ref: 8

PIPE,BAFFLE

€ 40.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0211206088
ref: 10

SCREW

€ 2.00

11

1477230500
ref: 11

DAMPER,MUFFLER,FR

€ 3.00

12

0918008048
ref: 12
8X12X15

SPACER (8X12X15)

€ 3.50

13

0110708358
ref: 13

BOLT

€ 3.50

14

0832121088
ref: 14

LOCK WASHER

€ 2.00

15

0916008007
ref: 15
8.7X22X2

WASHER (8.7X22X2)

€ 2.00

16

0932014006
ref: 16

CUSHION

€ 3.50

17

0918008075
ref: 17

SPACER (8.6X13.8X9.8)

€ 3.00

18

0916008005
ref: 18
8.2X26X1.6

WASHER

€ 2.50

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0110708258
ref: 20

BOLT

€ 2.50

21

0932014006
ref: 21

CUSHION

€ 3.50

22

0918008050
ref: 22
8.6X13.8X9

SPACER (8.6X13.8X9)

€ 2.50

23

0110708258
ref: 23

BOLT

€ 2.50

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0916008005
ref: 25
8.2X26X1.6

WASHER

€ 2.50

26

1478148500
ref: 26

COVER,MUFFLER

€ 17.00

27

0211206088
ref: 27

SCREW

€ 2.00
