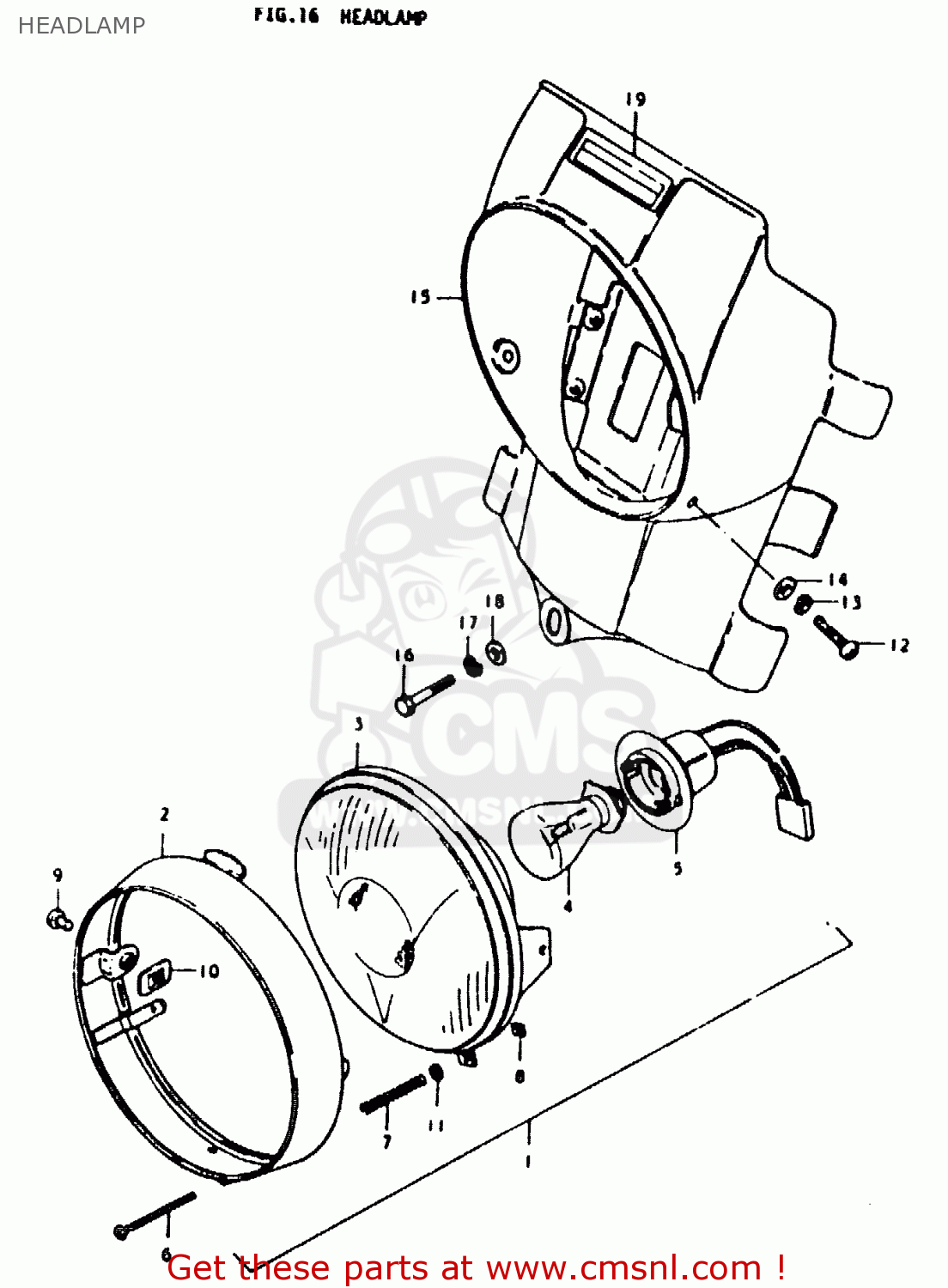

HEADLAMP

ref

part #

description

quantity

1

3510048510
ref: 1

HEADLAMP ASSY

€ 136.50

2

3511148510
ref: 2

RIM

€ 34.00

3

3512148510
ref: 3

LAMP UNIT

€ 51.00

4

0947106029
ref: 4
6V, 25/25W

BULB(6V25/25W,STANLEY,A7007)

€ 9.00

5

3517125320
ref: 5

SOCKET,HEADLAMP

€ 15.50

6

3515148510
ref: 6

SCREW,HEADLAMP ADJUST

€ 3.50

7

3515448510
ref: 7

SPRING

€ 2.50

8

3515248510
ref: 8

NUT,HEADLAMP ADJUSTER

€ 3.00

9

0211205088
ref: 9

SCREW

€ 2.00

10

3515548510
ref: 10

NUT

€ 2.00

11

3515748510
ref: 11

WASHER

€ 2.50

12

0211205168
ref: 12

SCREW

€ 2.50

13

0832121058
ref: 13

LOCK WASHER

€ 2.00

14

0832221058
ref: 14

WASHER

€ 2.50

15-1

518104850007P
ref: 15-1

HOUSING, HEADLAMP

€ 62.00

15-2

518104850008Y
ref: 15-2

HOUSING, HEADLAMP

€ 71.50

15-3

5181048500189
ref: 15-3

HOUSING, HEAD LAMP

€ 71.50

16

0110706128
ref: 16

BOLT

€ 2.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

0916006020
ref: 18
6.5X20X1.6

WASHER

€ 2.00

19-1

682754850069F
ref: 19-1

TAPE, HOUSING

€ 5.00

19-2

682754850069G
ref: 19-2

TAPE, HOUSING

€ 5.00

19-3

682754850067H
ref: 19-3

TAPE, HOUSING

€ 4.50

all assemblies
