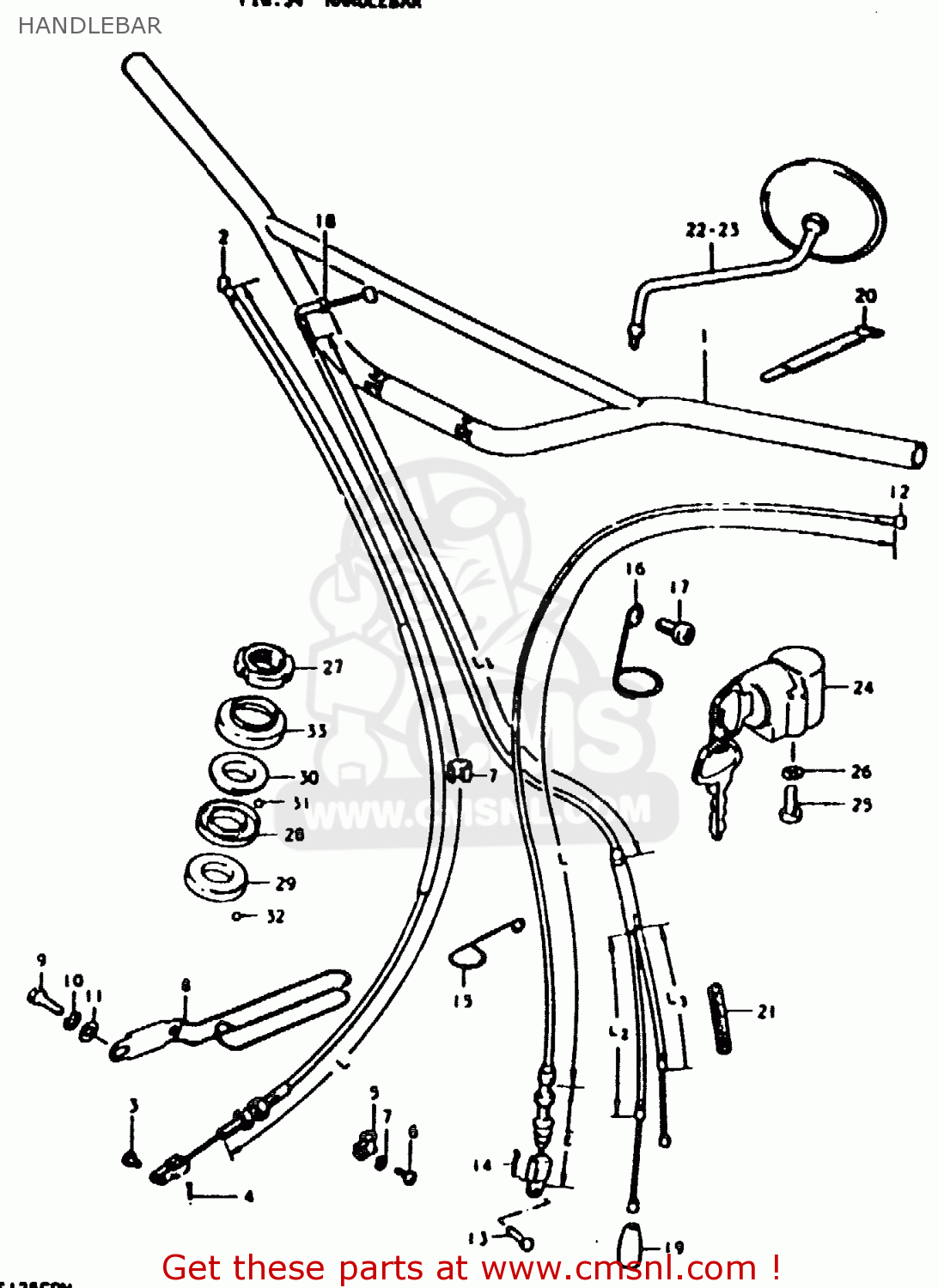

HANDLEBAR

ref

part #

description

quantity

1

5611048500291
ref: 1

HANDLEBAR

€ 59.50

2

5811048500
ref: 2

CABLE,FR BRAKE

€ 35.50

3

0920006013
ref: 3

PIN(L:13.5)

€ 2.00

4

0411120158
ref: 4

PIN

€ 1.50

5

5862132400
ref: 5

GUIDE,CABLE

€ 3.50

6

0211206108
ref: 6

SCREW

€ 1.50

7

0832121068
ref: 7

LOCK WASHER

€ 2.50

8

5862030501
ref: 8

GUIDE,CABLE

€ 16.00

9

0110708128
ref: 9

BOLT 8X12

€ 2.50

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

0832211088
ref: 11

WASHER

€ 2.00

12

5820048000
ref: 12
L:90 &:136

CABLE ASSEMBLY,CLUTCH

€ 19.00

13

0920006011
ref: 13

PIN(L:15)

€ 2.50

14

0411120158
ref: 14

PIN

€ 1.50

15

5862648500
ref: 15

CLAMP

€ 7.50

16

3494930002
ref: 16

CLIP

€ 15.50

17

0211206108
ref: 17

SCREW

€ 1.50

18

5830048001
ref: 18
L1:630 L2:330 L3:210

CABLE ASSEMBLY,THROTTLE

€ 32.00

19

0928707002
ref: 19

SEAL,DUST(7X18X30)

€ 2.50

20

0940711302
ref: 20
L:110

CLAMP

€ 6.00

21

5839927100
ref: 21

PROTECTOR,CABLE

€ 10.50

22

5650045012
ref: 22

MIRROR ASSEMBLY,RIGHT

€ 72.50

23

5660045012
ref: 23

MIRROR ASSEMBLY,LEFT

€ 73.00

24

5191025310
ref: 24

LOCK ASSEMBLY,STEERING

€ 22.50

25

0211205128
ref: 25

SCREW

€ 2.50

26

0832121058
ref: 26

LOCK WASHER

€ 2.00

27

5163128000
ref: 27

NUT,STEERING STEM(25X44X10)

€ 12.50

28

5161120002
ref: 28

RACE,STEERING INNER UPR

€ 5.50

29

5161133002
ref: 29

LACE,STEERING INNER LWR

€ 7.00

30

5162128000
ref: 30

RACE,STEERING OUTER UPR

€ 7.00

31

0611106003
ref: 31

BALL

€ 1.50

32

0611108003
ref: 32

BALL

€ 1.50

33

5164325001
ref: 33

DUST SEAL,STEERING UPR

€ 4.50
