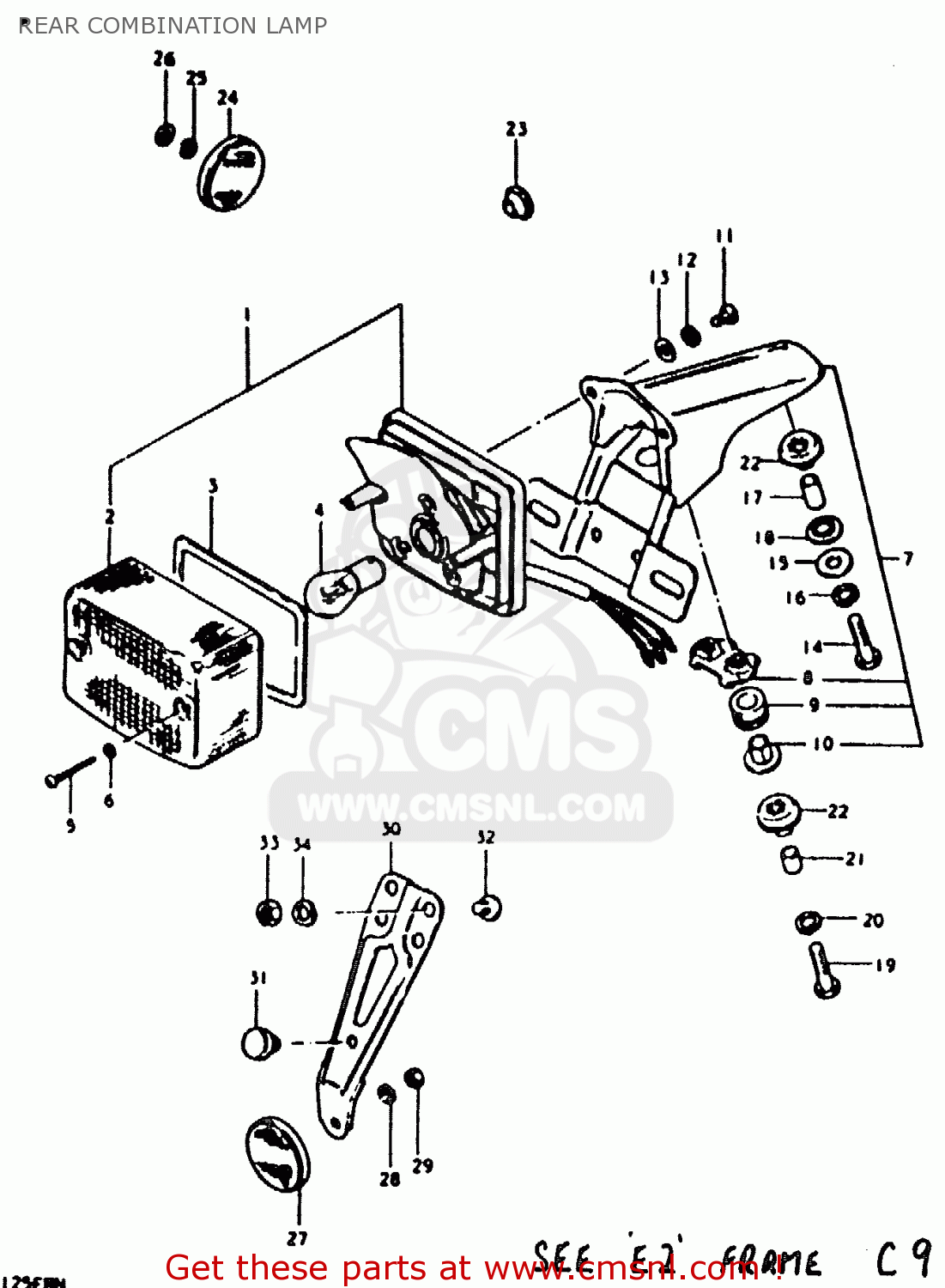

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3572048510
ref: 1

LAMP UNIT, REAR COMBINATION

€ 118.50

2

3571248510
ref: 2

LENS

€ 80.50

3

3571348510
ref: 3

GASKET (NAS)

€ 8.50

4

0947106008
ref: 4
6V, 10/3W

BULB(6V10/3W,STANLEY,A4854H)

€ 4.50

5

3562549030
ref: 5

BOLT

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3573048510
ref: 7

BRACKET ASSY

€ 61.00

8

3571630950
ref: 8

PLATE

€ 10.50

9

3576530950
ref: 9

CUSHION

€ 18.00

10

3576630950
ref: 10

SPACER

€ 2.00

11

0211205125
ref: 11

SCREW

€ 1.50

12

0832121055
ref: 12

WASHER,LOCK

€ 3.00

13

3572746110
ref: 13

WASHER

€ 2.00

14

0110706358
ref: 14

BOLT

€ 2.50

15

0916006027
ref: 15
6.5X20X1.2

WASHER (6.5X20X1.2)

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0918006072
ref: 17
6.4X9X18

SPACER

€ 2.00

18

0932009003
ref: 18

CUSHION

€ 2.00

19

0110706408
ref: 19

BOLT 6X40

€ 2.00

20

0832121068
ref: 20

LOCK WASHER

€ 2.50

21

0918006006
ref: 21
6.8X10X11.5

SPACER (6.8X10X11.5)

€ 3.00

22

0932009010
ref: 22

CUSHION

€ 2.50

23

0930807004
ref: 23

GROMMET

€ 2.50

24

3595035011
ref: 24

REFLEX REFLECTOR,FR

€ 11.00

25

0832121058
ref: 25

LOCK WASHER

€ 2.00

26

0832221058
ref: 26

WASHER

€ 2.50

27

3597008400
ref: 27

REFLEX REFLECTOR,RR

€ 7.00

28

0832121058
ref: 28

LOCK WASHER

€ 2.00

29

0831011058
ref: 29

NUT

€ 2.50

30

3597448510
ref: 30

BRACKET

€ 4.50

31

0932105010
ref: 31

CUSHION

€ 3.50

32

0214206088
ref: 32

SCREW, PLATE

€ 1.00

33

0831022068
ref: 33

NUT 6MM

€ 2.50

34

0832121068
ref: 34

LOCK WASHER

€ 2.50
