PILOTLAMP

TS125ER 1979 (N)

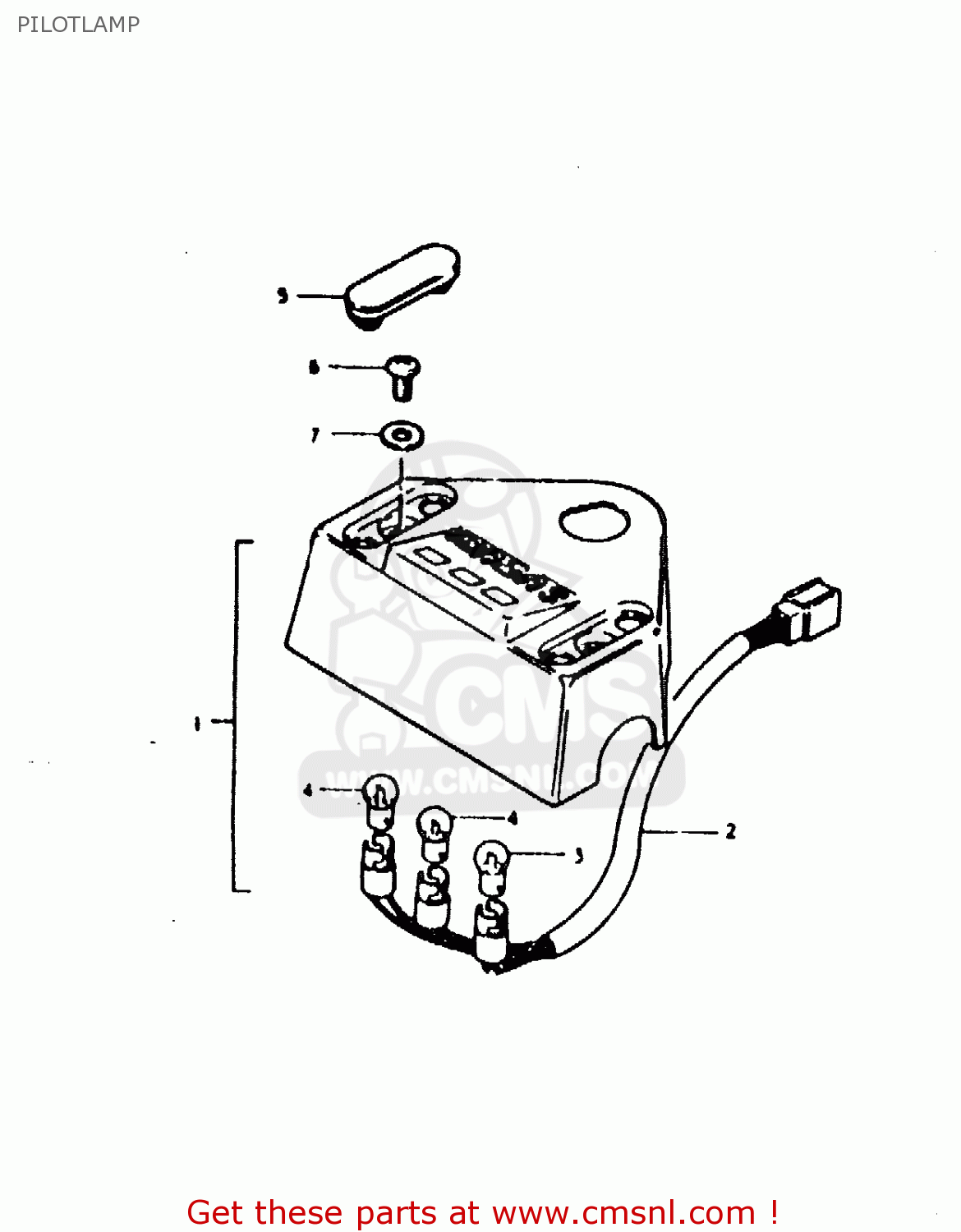

Pilotlamp diagram TS125ER 1979 (N)

PILOTLAMP TS125ER 1979 (N)

PILOTLAMP TS125ER 1979 (N)

prices are in EUR

ref

part #

description

quantity

1

3638048500
ref: 1

CASE,PILOT BULB

€ 85.50

2

3632548500
ref: 2

SOCKET

€ 22.00

3

0947106001
ref: 3
6V, 1.7W

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

4

0947106002
ref: 4
6V, 3W

BULB(6V/3W)

€ 2.50

5

3638848500
ref: 5

CAP,PILOT BOX BOLT

€ 4.50

6

0211206128
ref: 6

SCREW 6X12

€ 2.00

7

0832221068
ref: 7

WASHER

€ 2.00
