BATTERY
TS250 1981 (X) USA (E03)

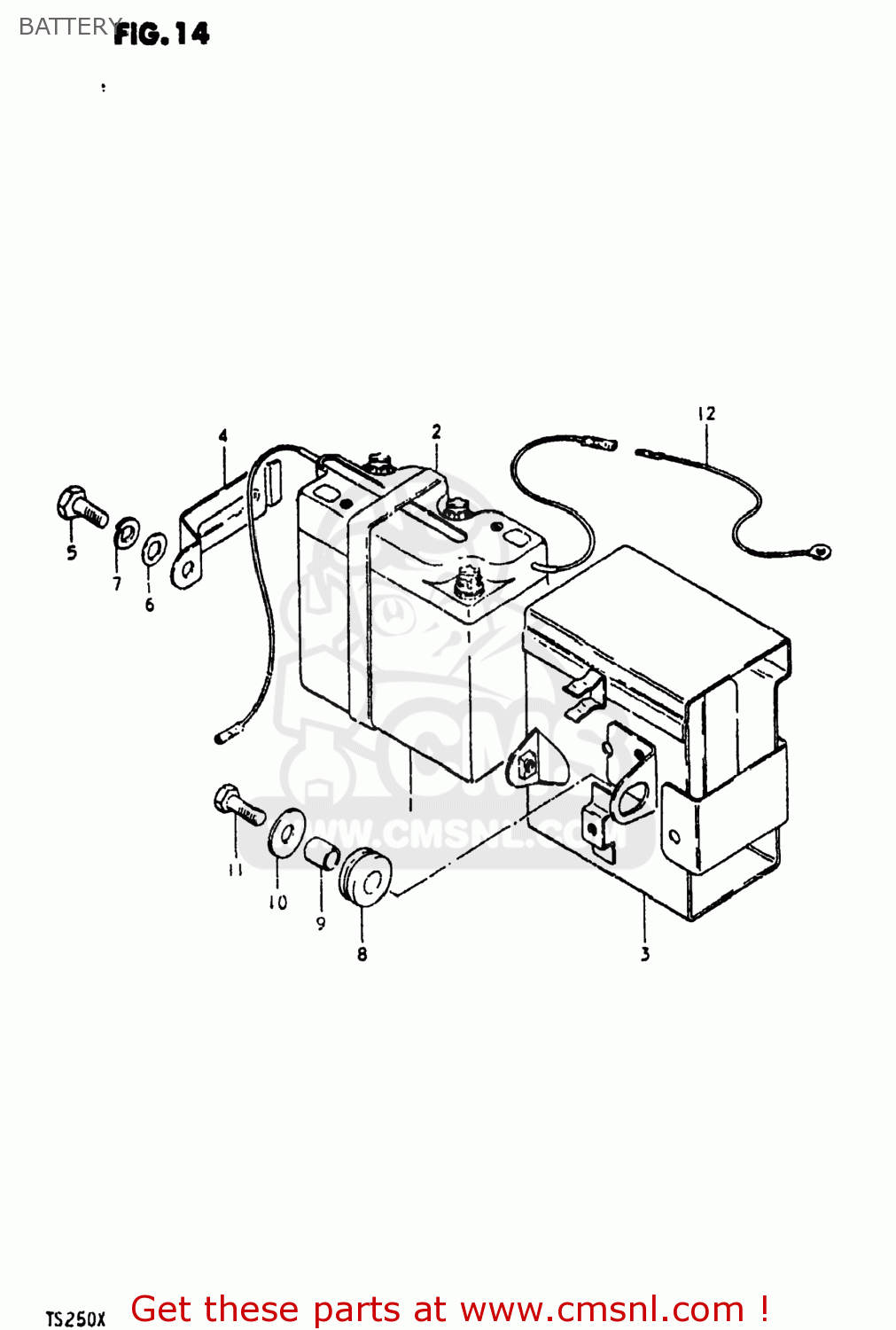

Battery diagram TS250 1981 (X) USA (E03)
BATTERY TS250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361003610
ref: 1
BATTERY(6N4B-2A,6V4.2AH)
€ 49.50
2
3365130000
ref: 2
PROTECTOR,BATTERY
€ 9.00
3
4154030501
ref: 3
41540-30560
HOLDER,BATTERY
€ 33.00
4
4156129901
ref: 4
PLATE,BATTERY HOLDER
€ 4.50
5
0912806004
ref: 5
09128-06044
SCREW(6X10)
€ 1.50
6
0832221068
ref: 6
08322-01067
WASHER
€ 2.00
7
0832121068
ref: 7
08321-01067
LOCK WASHER
€ 2.50
8
0932008007
ref: 8
09320-08021
CUSHION
€ 4.00
9
0918007005
ref: 9
09180-06259
SPACER (7X9X7)
€ 2.50
10
0916006027
ref: 10
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
11
0912806005
ref: 11
02162-0616B
SCREW
€ 2.50
12
3686227690
ref: 12
LEAD WIRE
€ 9.00
