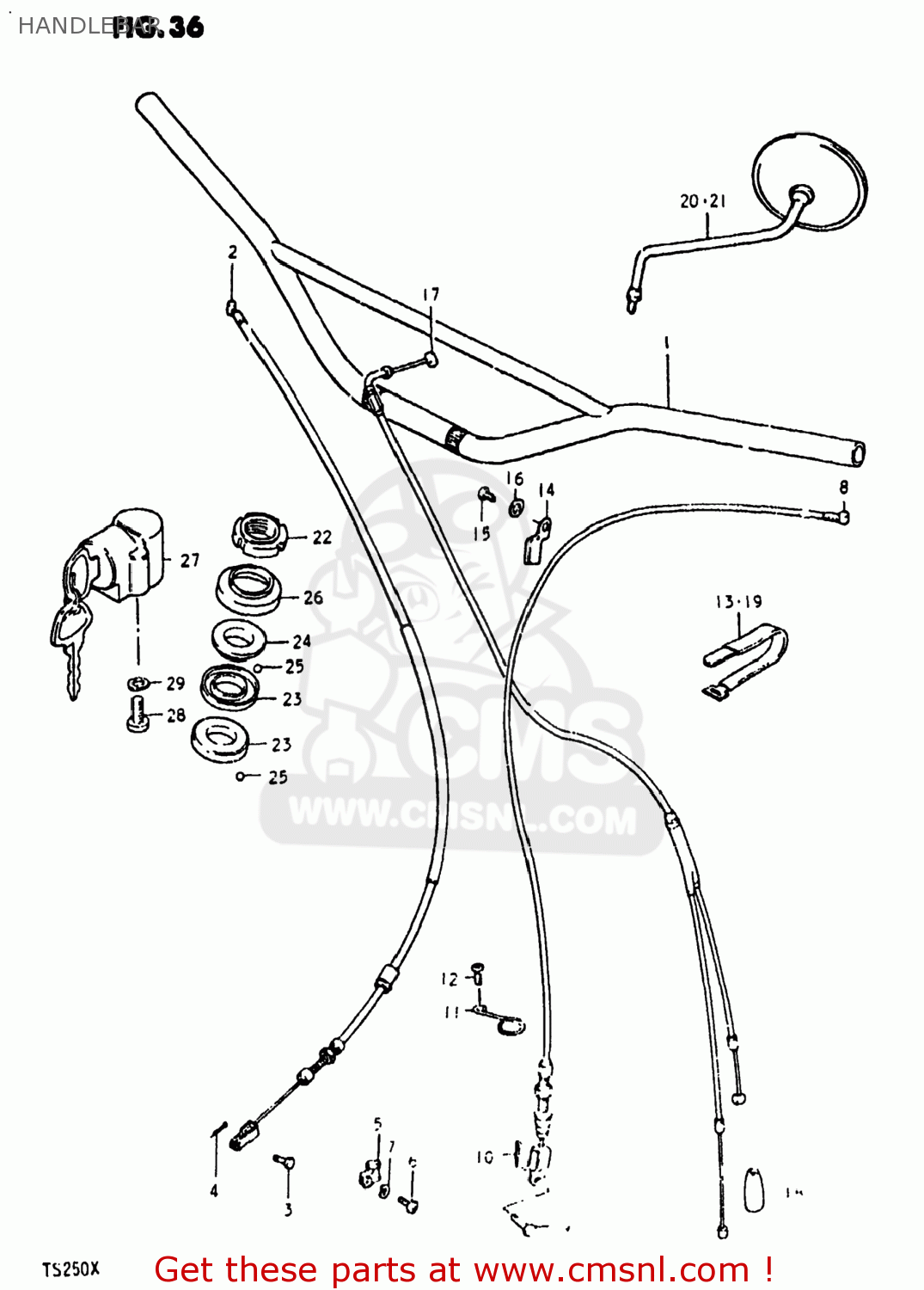

HANDLEBAR

ref

part #

description

quantity

1-1

5611048203291
ref: 1-1
56110-48003-08C

HANDLEBAR

€ 49.00

1-2

5611030900
ref: 1-2
56110-48003-08C

HANDLEBAR

€ 49.00

2-1

5810032400
ref: 2-1
58100-32401

CABLE ASSEMBLY,FRONT BRAKE

€ 30.00

2-2

5810032401
ref: 2-2

CABLE ASSY,FR BRAKE

€ 30.00

3

0920005001
ref: 3

PIN(L:17.5)

€ 1.50

4

0411120158
ref: 4
04111-2015A

PIN

€ 1.50

5-1

5862132400
ref: 5-1
58621-40401

GUIDE,CABLE

€ 3.50

5-2

5862140401
ref: 5-2

GUIDE,CABLE

€ 3.50

6

0211206108
ref: 6
02112-06107

SCREW

€ 1.50

7

0832121068
ref: 7
08321-01067

LOCK WASHER

€ 2.50

8

5820030501
ref: 8

CABLE ASSY,CLUTCH

€ 25.50

9

0920006011
ref: 9

PIN(L:15)

€ 2.50

10

0411120158
ref: 10
04111-2015A

PIN

€ 1.50

11

0940313401
ref: 11

CLIP

€ 3.50

12

0211206088
ref: 12
02112-06087

SCREW

€ 2.00

13

0940718301
ref: 13

CLAMP

€ 6.00

14

0940306302
ref: 14
09403-06301

CLAMP

€ 2.00

15

0211206128
ref: 15
02112-06127

SCREW 6X12

€ 2.00

16

0832221068
ref: 16
08322-01067

WASHER

€ 2.00

17-1

5830030900
ref: 17-1
58300-30902

CABLE ASSEMBLY,THROTTLE

€ 30.50

17-2

5830030901
ref: 17-2
58300-30902

CABLE ASSEMBLY,THROTTLE

€ 30.50

18

0928707002
ref: 18

SEAL,DUST(7X18X30)

€ 2.50

19

0940718301
ref: 19

CLAMP

€ 6.00

20

5650045012
ref: 20
56500-45013

MIRROR ASSEMBLY,RIGHT

€ 72.50

21

5660045012
ref: 21
56600-45013

MIRROR ASSEMBLY,LEFT

€ 73.00

22

5163128000
ref: 22

NUT,STEERING STEM(25X44X10)

€ 12.50

23

5161133002
ref: 23

LACE,STEERING INNER LWR

€ 7.00

24

5162130001
ref: 24

LACE,STEERING OUTER UPR

€ 14.00

25

0611108003
ref: 25

BALL

€ 1.50

26

5164330000
ref: 26

DUST SEAL,STEERING UPR

€ 15.50

27

5191025310
ref: 27
51910-25311

LOCK ASSEMBLY,STEERING

€ 22.50

28

0211205128
ref: 28
02112-05127

SCREW

€ 2.50

29

0832121058
ref: 29
08321-0105A

LOCK WASHER

€ 2.00

all assemblies
