FRAME COVER (TS250X)
TS250 1981 (X) USA (E03)

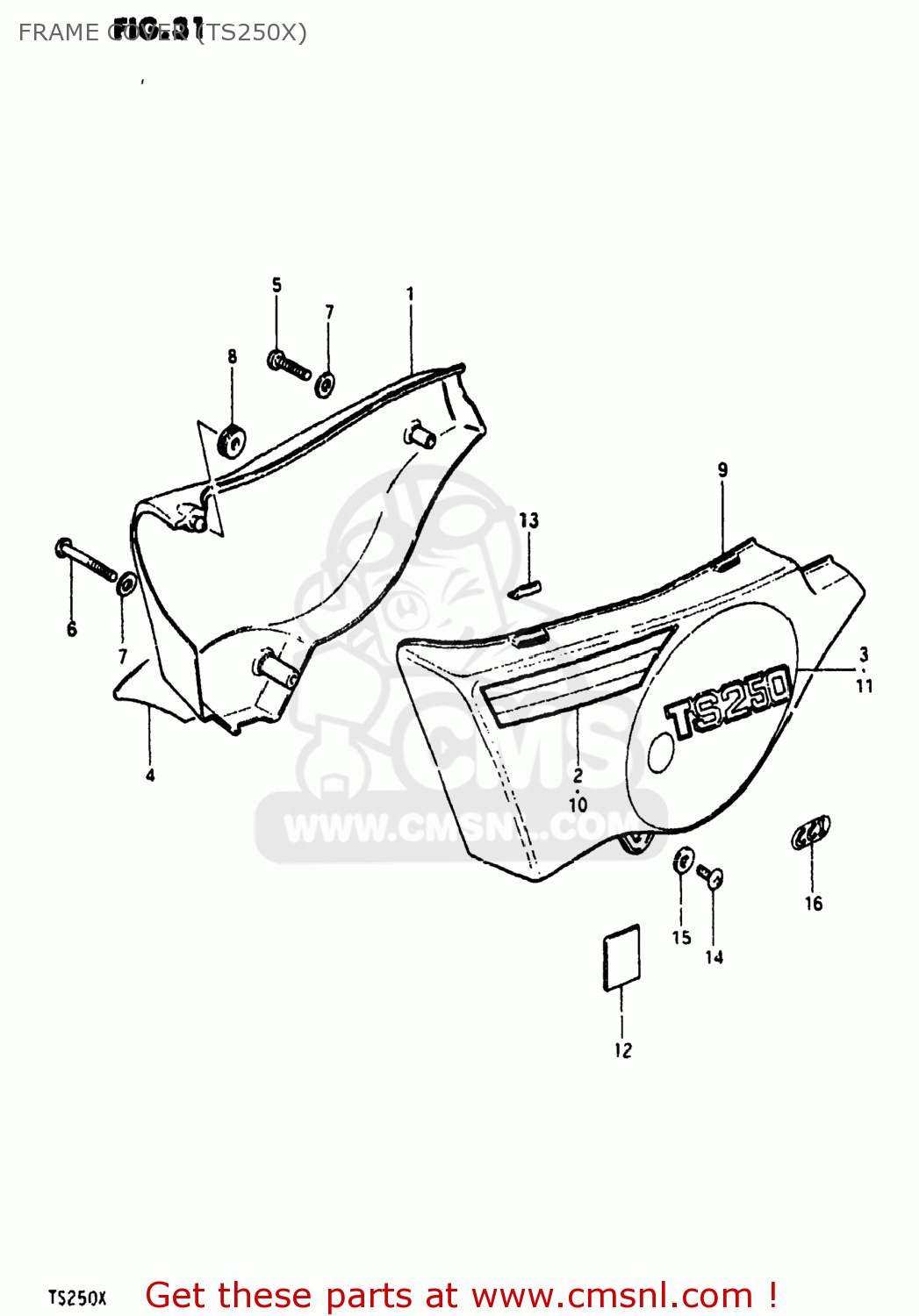

Frame cover (ts250x) diagram TS250 1981 (X) USA (E03)
FRAME COVER (TS250X) TS250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
471113090108Y
ref: 1
47110-30910
COVER,FRAME,RIGHT
€ 76.50
2
681363094075J
ref: 2
TAPE,FRAME COVER
€ 9.50
3
681313095075H
ref: 3
EMBLEM
€ 8.00
4
6813130910
ref: 4
EMBLEM,FRAME COVER,RIGHT
€ 0.00
5
0214206258
ref: 5
09125-06055
SCREW
€ 3.00
6
0214206458
ref: 6
02142-06457
SCREW
€ 2.00
7
0916006007
ref: 7
09160-06084
WASHER
€ 2.00
8
0932008018
ref: 8
CUSHION
€ 4.00
9
472113090108Y
ref: 9
47211-30901
COVER,FRAME,LEFT
€ 40.50
10
681463094075J
ref: 10
TAPE,FRAME COVER,LEFT
€ 10.00
11
681413095075H
ref: 11
EMBLEM,FRAME COVER
€ 7.00
12
3365137000
ref: 12
PROTECTOR(170X95X3.0)
€ 5.00
13
4711745000
ref: 13
CUSHION,FRAME COVER
€ 1.50
14
0214206128
ref: 14
02142-06127
SCREW
€ 1.50
15
0916006007
ref: 15
09160-06084
WASHER
€ 2.00
16
6817126000
ref: 16
EMBLEM,CCIS
€ 4.00
