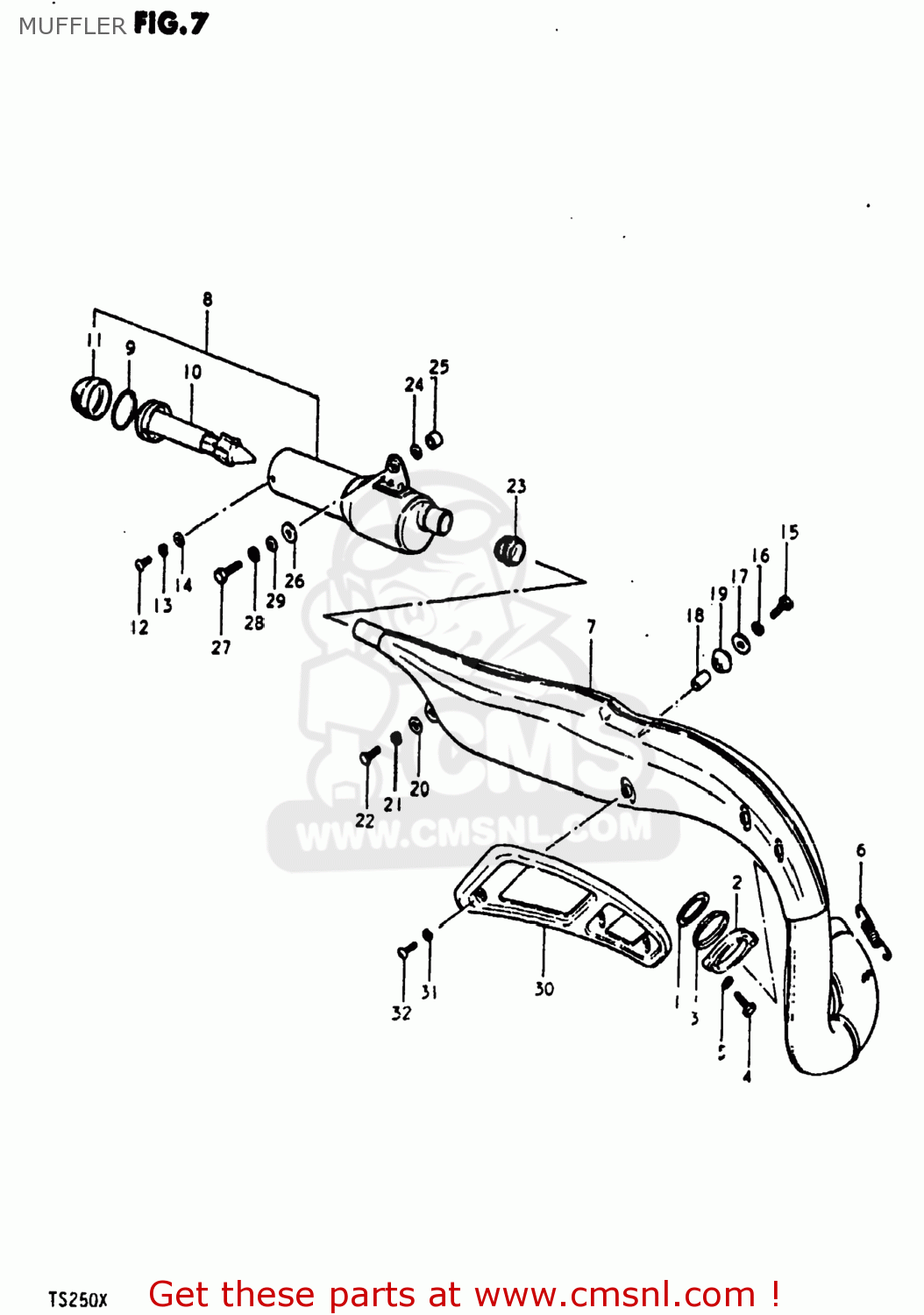

MUFFLER

ref

part #

description

quantity

1

1418130080
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 11.50

2

1418230000
ref: 2

CLAMP,EXHAUST PIPE

€ 36.50

3

1418430010
ref: 3
14184-30020

GASKET,EXHAUST PIPE

€ 5.50

4

0110706258
ref: 4
01500-06257

BOLT

€ 2.00

5

0832121068
ref: 5
08321-01067

LOCK WASHER

€ 2.50

6

0944311002
ref: 6

SPRING

€ 4.50

7

1431030900
ref: 7
14310-30911

BODY,MUFFLER

€ 466.00

8

1430330920
ref: 8
14303-30921-H01

MUFFLER ASSEMBLY

€ 97.00

9

0928055001
ref: 9

O-RING (D:3.5 ID:54.4)

€ 5.50

10

1485030510
ref: 10

TUBE,MUFFLER CLEAN OUT

€ 22.50

11

1464930520
ref: 11

COVER,SECOND MUFFLER TAIL

€ 10.00

12

0912806013
ref: 12

SCREW(6X8)

€ 1.50

13

0832121066
ref: 13
08321-0106A

WASHER,LOCK

€ 2.00

14

0832221068
ref: 14
08322-01067

WASHER

€ 2.00

15

0110708308
ref: 15
01500-08307

BOLT (8X30)

€ 2.50

16

0916008007
ref: 16
09160-08127

WASHER (8.7X22X2)

€ 2.00

17

0918008048
ref: 17
09180-08302

SPACER (8X12X15)

€ 3.50

18

1477230500
ref: 18

DAMPER,MUFFLER,FR

€ 3.00

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0832221088
ref: 20
08322-01087

WASHER

€ 2.00

21

0832121088
ref: 21
08321-01087

LOCK WASHER

€ 2.00

22

0110708168
ref: 22
01500-0816B

BOLT

€ 2.00

23-1

1477130900
ref: 23-1
14771-43D00

CONNECTOR,MUFFLER

€ 19.00

23-2

1477130901
ref: 23-2
14771-43D00

CONNECTOR,MUFFLER

€ 19.00

24

0916008004
ref: 24
09160-08134

WASHER

€ 2.50

25

0918008083
ref: 25
09180-08201

SPACER

€ 4.50

26

0932014006
ref: 26

CUSHION

€ 3.50

27

0110708258
ref: 27
01500-08257

BOLT

€ 2.50

28

0832121088
ref: 28
08321-01087

LOCK WASHER

€ 2.00

29

0916008004
ref: 29
09160-08134

WASHER

€ 2.50

30

1478130900
ref: 30

COVER,MUFFLER

€ 0.00

31

0832121068
ref: 31
08321-01067

LOCK WASHER

€ 2.50

32

0211206088
ref: 32
02112-06087

SCREW

€ 2.00

all assemblies
