RIGHT HANDLE SWITCH
TS250 1981 (X) USA (E03)

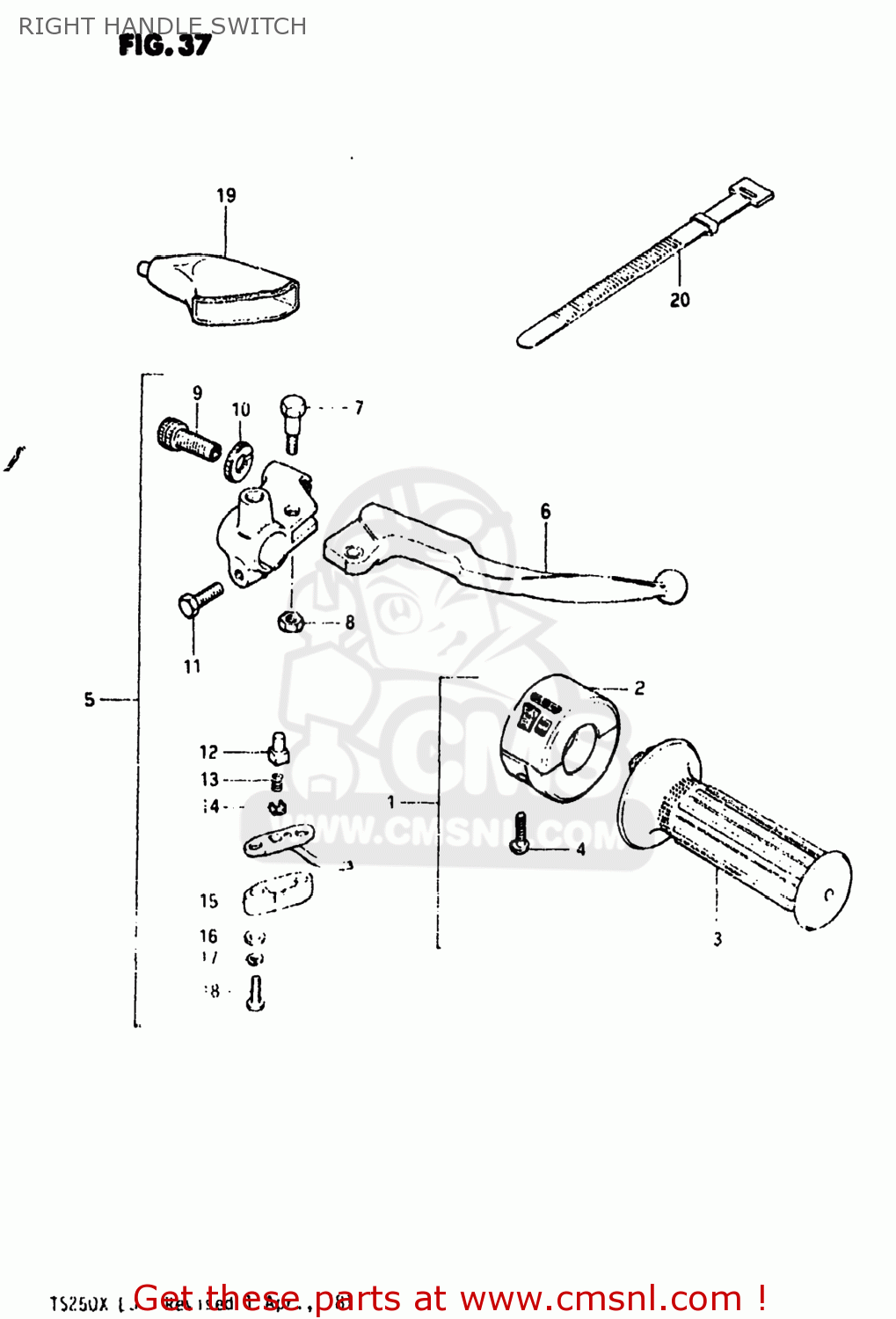

Right handle switch diagram TS250 1981 (X) USA (E03)
RIGHT HANDLE SWITCH TS250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710030900
ref: 1
57100-30940
CASE ASSEMBLY,THROTTLE
€ 45.00
2
5710030930
ref: 2
57100-30940
CASE ASSEMBLY,THROTTLE
€ 45.00
3
5711030900
ref: 3
GRIP,THROTTLE
€ 20.50
4
0211205258
ref: 4
02112-05257
SCREW
€ 2.00
5
5730037100
ref: 5
LEVER/SWITCH ASSEMBLY,BRAKE
€ 40.50
6
5742026500
ref: 6
LEVER,BRAKE
€ 29.00
7
5743111011
ref: 7
57431-11013
BOLT,LEVER
€ 6.00
8
0831921068
ref: 8
08319-2106A
NUT 6MM
€ 2.00
9
5744111010
ref: 9
ADJUSTER,CABLE
€ 8.00
10
5744211010
ref: 10
NUT,CABLE ADJUSTER
€ 4.00
11
0110706208
ref: 11
01500-06207
BOLT
€ 2.00
12
5746118600
ref: 12
57465-18601
HOLDER
€ 4.50
13
5746218600
ref: 13
57465-18601
SPRING
€ 4.50
14
5746318600
ref: 14
57465-18601
PLATE
€ 4.50
15
5748133010
ref: 15
COVER,FR BK TERMINAL BASE
€ 19.50
16
0832221038
ref: 16
08322-01037
WASHER
€ 2.00
17
0832121038
ref: 17
09162-03001
LOCK WASHER
€ 1.50
18
0912503105
ref: 18
09125-03105-XC0
SCREW
€ 2.50
19
5734140001
ref: 19
57341-40002
COVER,CLUTCH LEVER
€ 7.50
20
0940712402
ref: 20
CLAMP(L:120)
€ 3.00
