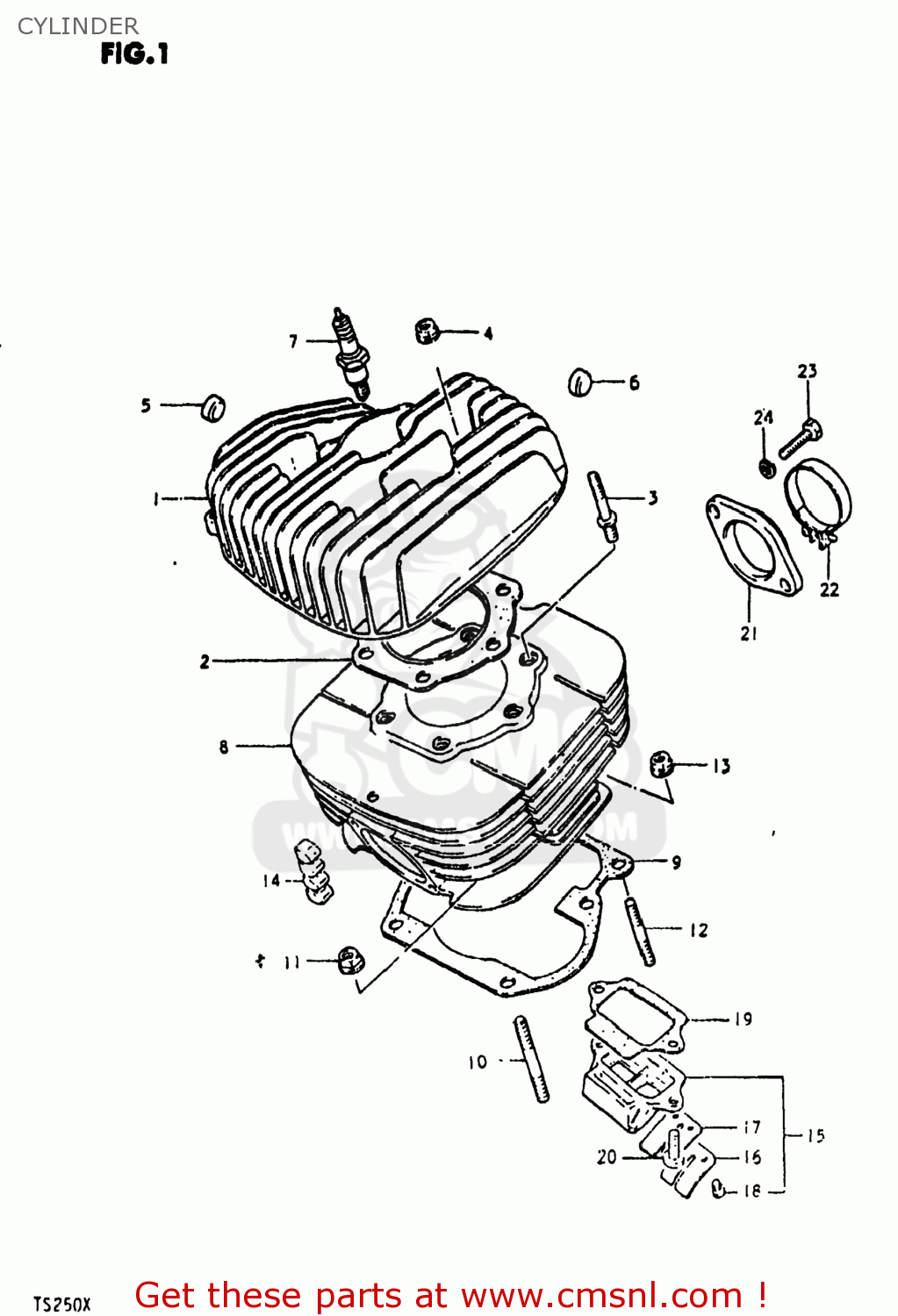

CYLINDER

ref

part #

description

quantity

1

1111130503
ref: 1

HEAD,CYLINDER

€ 275.00

2

1114130900
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 31.00

3

0910808018
ref: 3

BOLT,STUD

€ 4.00

4

0831616088
ref: 4
08316-10087

NUT

€ 2.50

5

1125228000
ref: 5
11252-13630

PAD,CYLINDER

€ 2.00

6

1125238001
ref: 6

PAD,CYLINDER HEAD

€ 3.50

7-1

0948200226
ref: 7-1
09482-00139

SPARK PLUG

€ 4.00

7-2

0948200140
ref: 7-2

SPARK PLUG W22EP

€ 3.00

8

1121030900
ref: 8

CYLINDER

€ 388.00

9

1124141100
ref: 9
11241-41100-H17

GASKET,CYLINDER (MCA)

€ 12.50

10

0142110258
ref: 10
01421-1025B

STUD 10X25

€ 3.00

11

0831616108
ref: 11
08316-10107

NUT

€ 2.00

12

0142108258
ref: 12
01421-0825A

STUD 8X25

€ 2.50

13

0831616088
ref: 13
08316-10087

NUT

€ 2.50

14

1125130500
ref: 14
11251-30530

PAD,CYLINDER

€ 6.00

15

1315041113
ref: 15

VALVE ASSY,REED

€ 118.50

16

1315241110
ref: 16

STOPPER,REED VALVE

€ 7.00

17

1315341110
ref: 17

VALVE,REED

€ 8.00

18

1315419011
ref: 18
02112-0308A

SCREW,REED VALVE

€ 1.50

19

1315641100
ref: 19
13156-41100-H17

GASKET,REED VALVE (MCA)

€ 4.50

20

0211206208
ref: 20
02112-06207

SCREW

€ 2.00

21

1311030900
ref: 21

PIPE,INTAKE

€ 30.50

22

0940248306
ref: 22
09402-48208

CLAMP

€ 4.50

23

0110706168
ref: 23
01500-06167

BOLT, UPPER

€ 3.00

24

0832121068
ref: 24
08321-01067

LOCK WASHER

€ 2.50

all assemblies
