WIRING HARNESS
TS250 1981 (X) USA (E03)

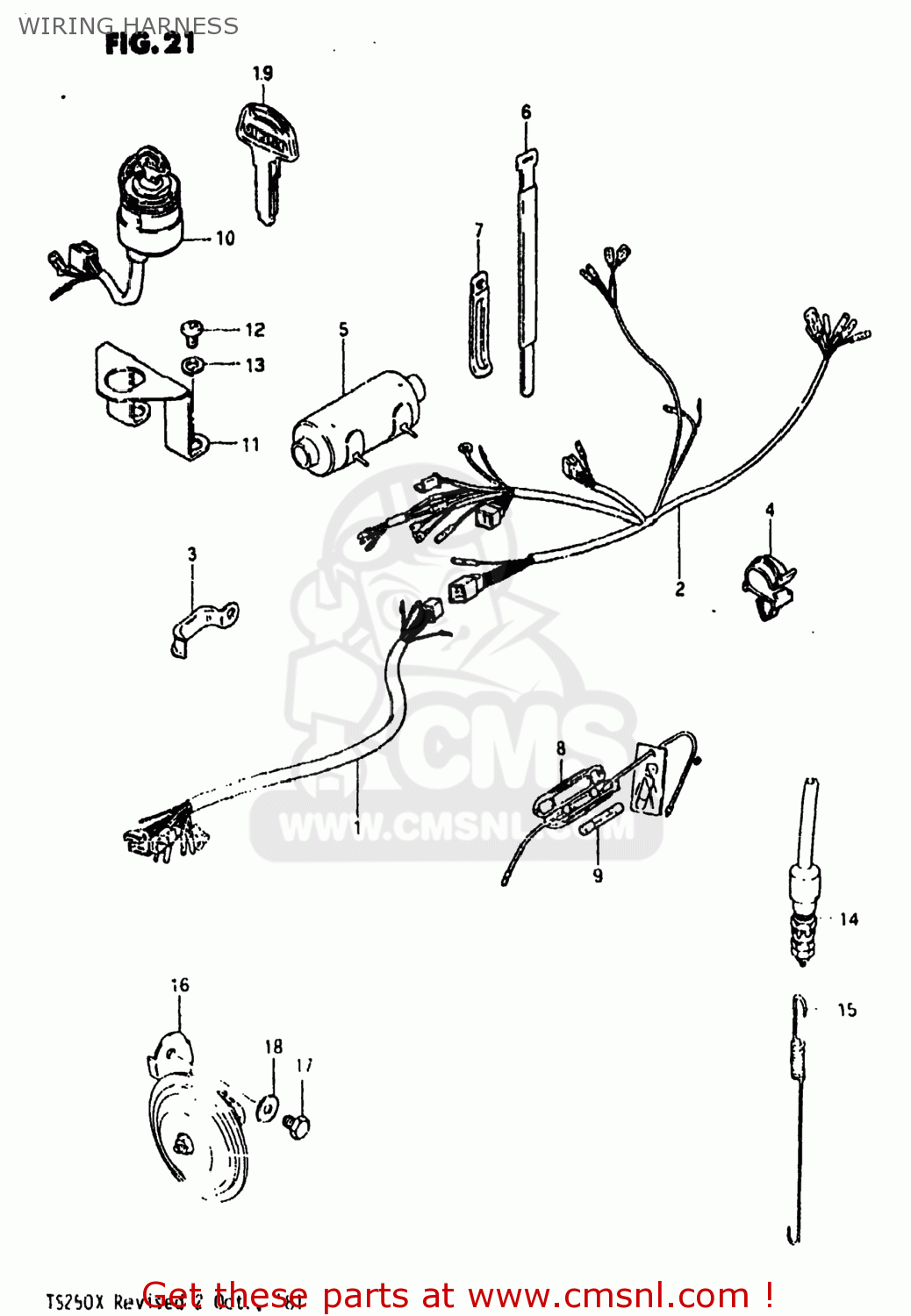

Wiring harness diagram TS250 1981 (X) USA (E03)
WIRING HARNESS TS250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661030910
ref: 1
HARNESS,WIRING
€ 28.00
2-1
3662030910
ref: 2-1
36620-30911
HARNESS,WIRING NO.2
€ 39.50
2-2
3662030911
ref: 2-2
HARNESS,WIRING NO.2
€ 39.50
3
0940309307
ref: 3
CLAMP
€ 2.50
4
0940307308
ref: 4
CLAMP
€ 1.50
5
3661830610
ref: 5
BOOT,WIRING HARNESS
€ 9.50
6-1
0940711302
ref: 6-1
09407-18301
CLAMP
€ 6.00
6-2
0940718301
ref: 6-2
CLAMP
€ 6.00
6-3
0940725301
ref: 6-3
CLAMP(L:250)
€ 4.50
7
0940406401
ref: 7
09404-06432
CLAMP L:35
€ 2.50
8
3674015010
ref: 8
36740-15011
BOX ASSEMBLY,FUSE
€ 11.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
3711048500
ref: 10
37110-48501
SWITCH ASSEMBLY,IGNITION
€ 64.00
11
3711548501
ref: 11
BRACKET,IGNITION SWITCH
€ 7.50
12
0211206108
ref: 12
02112-06107
SCREW
€ 1.50
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14-1
3774004570
ref: 14-1
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
14-2
3774004571
ref: 14-2
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
15
0944306027
ref: 15
SPRING
€ 4.50
16-1
3850030980
ref: 16-1
38500-30981
HORN ASSEMBLY
€ 0.00
16-2
3850030981
ref: 16-2
HORN ASSEMBLY
€ 0.00
17
0110706108
ref: 17
01500-06107
BOLT
€ 2.00
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
3714519710
ref: 19
37146-49300
KEY,BLANK
€ 13.00
