PILOT LAMP

TS250 1981 (X) USA (E03)

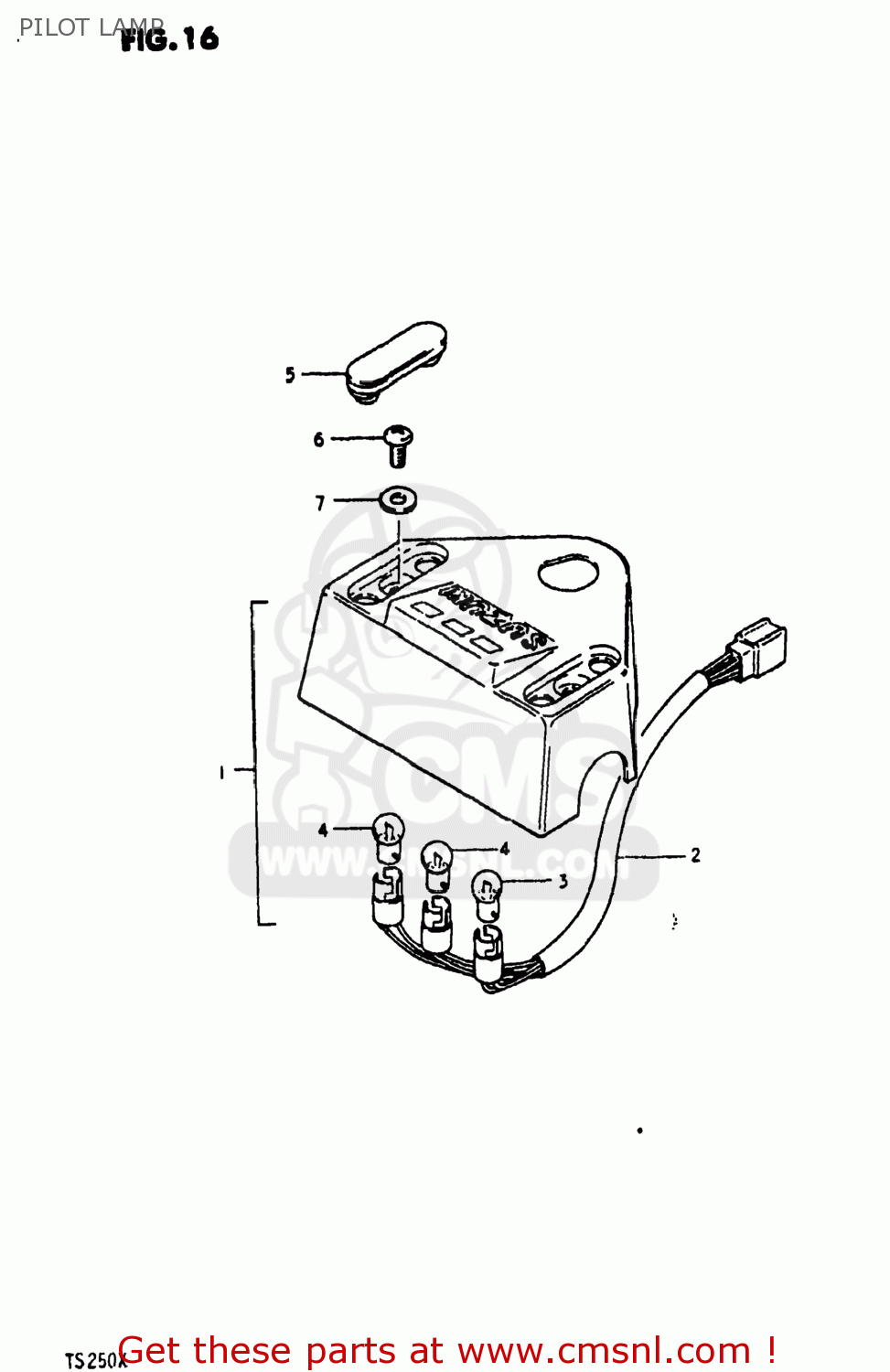

Pilot lamp diagram TS250 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

3638848500
ref: 0
36388-48501

CAP,PILOT BOX BOLT

€ 4.50

1-1

3638048500
ref: 1-1
36380-48501

CASE,PILOT BULB

€ 85.50

1-2

3638048501
ref: 1-2

LAMP ASSY,PILOT

€ 85.50

3632548500
ref: 2

SOCKET

€ 22.00

0947106001
ref: 3

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

0947106002
ref: 4

BULB(6V/3W)

€ 2.50

0211206128
ref: 6
02112-06127

SCREW 6X12

€ 2.00

0832221068
ref: 7
08322-01067

WASHER

€ 2.00
