CARBURETOR

TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

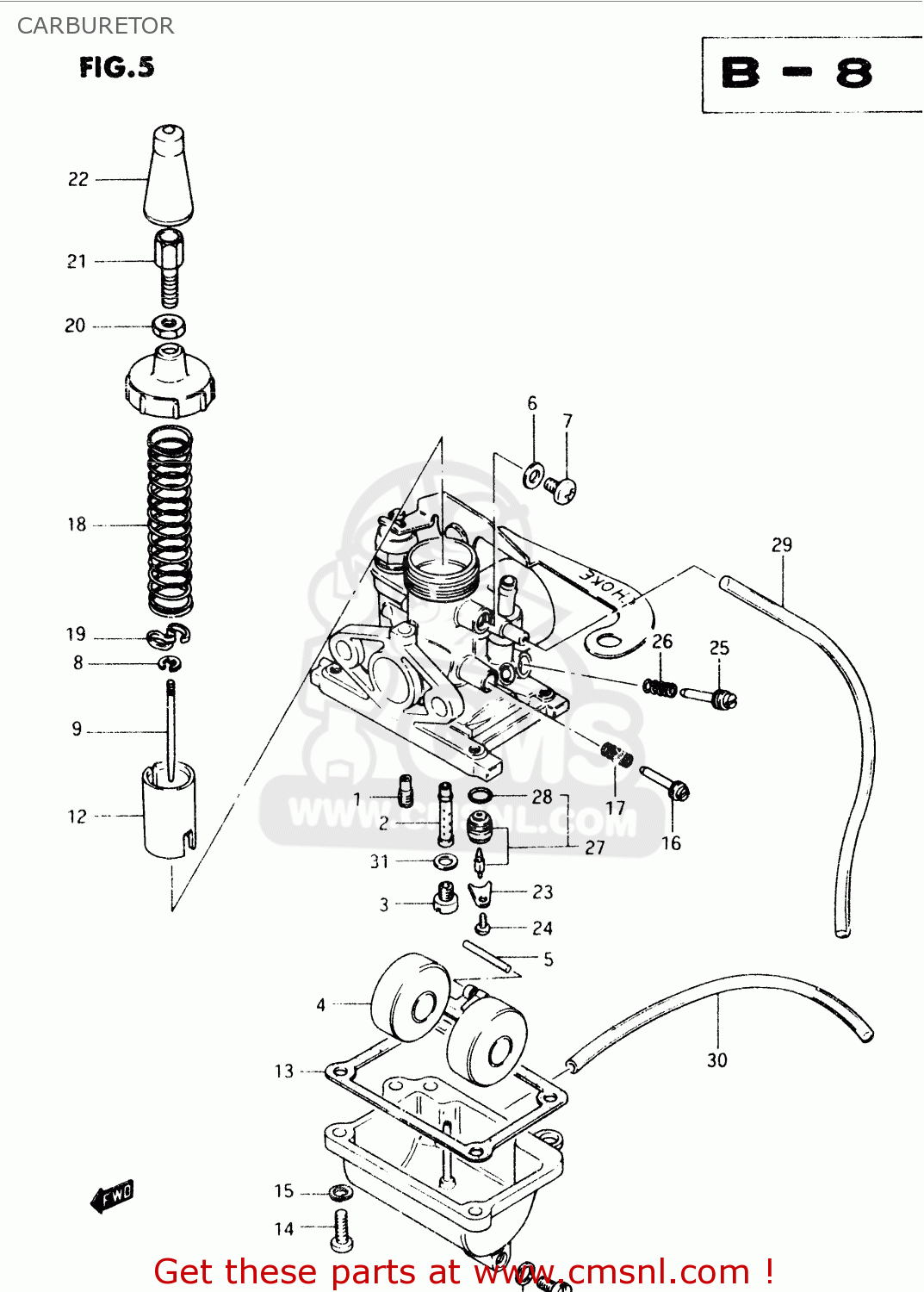

Carburetor diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

CARBURETOR TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
CARBURETOR TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
CARBURETOR TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
prices are in EUR
ref
part #
description
quantity
0
1320013620
ref: 0
MODEL E/G/H/J/M E2,E
CARBURETOR ASSY (VM15)
1320013620
€ 198.00
0
1320013690
ref: 0
MODEL R E2,E16
CARBURETOR ASSY
€ 134.50
0
1320013620
ref: 0
MODEL E/H E18
CARBURETOR ASSY (VM15)
1320013620
€ 198.00
0
1320013610
ref: 0
E1,E21
CARB.ASSY
€ 127.00
0
1320013640
ref: 0
MODEL J E18
CARBURETOR ASSY
€ 130.00
0
1320013680
ref: 0
MODEL M/R E18
CARBURETOR ASSY
€ 130.00
0
1320013650
ref: 0
E17
CARBURETOR ASSY
€ 129.50
0
1320013670
ref: 0
MODEL M E22
CARBURETOR ASS
€ 154.50
0
1320013690
ref: 0
MODEL R E22
CARBURETOR ASSY
€ 134.50
0
1320034B00
ref: 0
E25
CARBURETOR ASSY
€ 88.50
1-1
0949217006
ref: 1-1
JET,PILOT(17.5)
0949217006
€ 7.50
1-2
0949225002
ref: 1-2
E17
JET
€ 8.50
1-3
0949212005
ref: 1-3
MODEL M/R E18
JET,PILOT(12.5)
0949212005
€ 8.00
1-4
0949212006
ref: 1-4
E22
JET, PILOT (12.5)
€ 8.00
2-1
0949400443
ref: 2-1
E2,E16,MODEL E/H/J E
JET
0949400443
€ 16.00
2-2
0949400734
ref: 2-2
E17
JET, NEEDLE (E-6)
€ 0.00
2-3
0949400735
ref: 2-3
MODEL M/R E18
JET, NEEDLE (F-0)
€ 31.50
2-4
0949400419
ref: 2-4
E1,E21
JET,NEEDLE
0949400419
€ 12.00
2-5
0949400758
ref: 2-5
E22
JET,NEEDLE(F-5)
€ 0.00
2-6
0949400534
ref: 2-6
E25
JET, NEEDLE (D-8)
€ 13.50
3-1
0949167003
ref: 3-1
E2,E16,E18
JET,MAIN(67.5)
0949167003
€ 9.00
3-2
0949170012
ref: 3-2
E17
JET,PILOT AIR(70)
0949170012
€ 7.50
3-3
0949180009
ref: 3-3
E1,E21
JET,MAIN(80)
0949180009
€ 9.50
3-4
0949170010
ref: 3-4
E22
JET,MAIN(70)
0949170010
€ 9.00
3-5
0949167004
ref: 3-5
E25
JET,MAIN(67.5)
0949167004
€ 6.00
4-1
1325246110
ref: 4-1
FLOAT
1325246110
€ 24.00
4-2
1325002500
ref: 4-2
MODEL M E17,E22 MODE
FLOAT
1325002500
€ 16.50
5
1325420010
ref: 5
PIN,FLOAT
1325420010
€ 3.00
6
1352346110
ref: 6
GASKET,DRAIN PLUG (NAS)
1352346110
€ 3.00
7
0211205063
ref: 7
SCREW
€ 2.00
8
1339412110
ref: 8
CLIP,NEEDLE
€ 3.00
9-1
1338313620
ref: 9-1
E2,E16,MODEL E/H/J E
NEEDLE,JET
1338313620
€ 9.50
9-2
1338302100
ref: 9-2
E17
NEEDLE, JET
€ 13.50
9-3
1338313680
ref: 9-3
MODEL M/R E18
NEEDLE,JET
€ 11.50
9-4
1338313610
ref: 9-4
E1,E21
NEEDLE,JET
1338313610
€ 9.50
9-5
1338313670
ref: 9-5
E22
NEEDLE,JET
1338313670
€ 13.50
9-6
1338326900
ref: 9-6
E25
NEEDLE,JET
1338326900
€ 11.50
10
1324705010
ref: 10
PLUG
1324705010
€ 6.00
11
1324905010
ref: 11
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
12-1
1355146750
ref: 12-1
E2,E16,E18,E22
VALVE,THROTTLE(CA:2.0)
1355146750
€ 38.00
12-2
1355146780
ref: 12-2
E17
VALVE, PISTON (CA:2.5)
€ 0.00
12-3
1355113610
ref: 12-3
E1,E21
VALVE,THROTTLE
1355113610
€ 18.50
12-4
1355146180
ref: 12-4
E25
VALVE,THROTTLE
1355146180
€ 26.50
13
1325102410
ref: 13
GASKET (NAS)
1325102410
€ 4.50
14
0211204167
ref: 14
SCREW
0211204167
€ 1.00
15
0832121047
ref: 15
WASHER,LOCK 4M
0832121047
€ 2.00
16
1326701010
ref: 16
SCREW,THROTTLE STOP
1326701010
€ 6.00
17
1326801010
ref: 17
SPRING
1326801010
€ 3.50
18
1357346710
ref: 18
SPRING,THROTTLE VALVE RETURN
1357346710
€ 3.00
19
1358107910
ref: 19
PLATE
1358107910
€ 6.50
20
1366116600
ref: 20
NUT
1366116600
€ 5.00
21-1
1357722600
ref: 21-1
ADJUSTER,CABLE
1357722600
€ 6.00
21-2
1357748110
ref: 21-2
E25,MODEL M E17,E22
ADJUSTER,CABLE
1357748110
€ 8.00
22-1
1368133010
ref: 22-1
CAP,CABLE ADJUSTER
1368133010
€ 8.00
22-2
1368116600
ref: 22-2
E25,MODEL M E17,E22
CAP,RUBBER
1368116600
€ 7.00
23
1337346710
ref: 23
PLATE,NEEDLE VALVE FITING
1337346710
€ 4.50
24
0211203086
ref: 24
SCREW
€ 1.50
25-1
1326904010
ref: 25-1
EXCEPT MODEL J/M E18
SCREW,AIR
1326904010
€ 10.00
25-2
1326903A72
ref: 25-2
E22
SCREW,AIR
1326903A72
€ 7.50
26
1326801010
ref: 26
EXCEPT MODEL J/M E18
SPRING
1326801010
€ 3.50
27
1337046710
ref: 27
VALVE ASSY,NEEDLE
1337046710
€ 44.00
28
1337446710
ref: 28
O RING
1337446710
€ 4.50
29
1368336A00
ref: 29
1:300->200
HOSE
€ 8.00
30
1368336A00
ref: 30
1:300->160 E1,E21 L:
HOSE
€ 8.00
31
1338604700
ref: 31
PACKING,MAIN JET (NAS)
1338604700
€ 2.50
