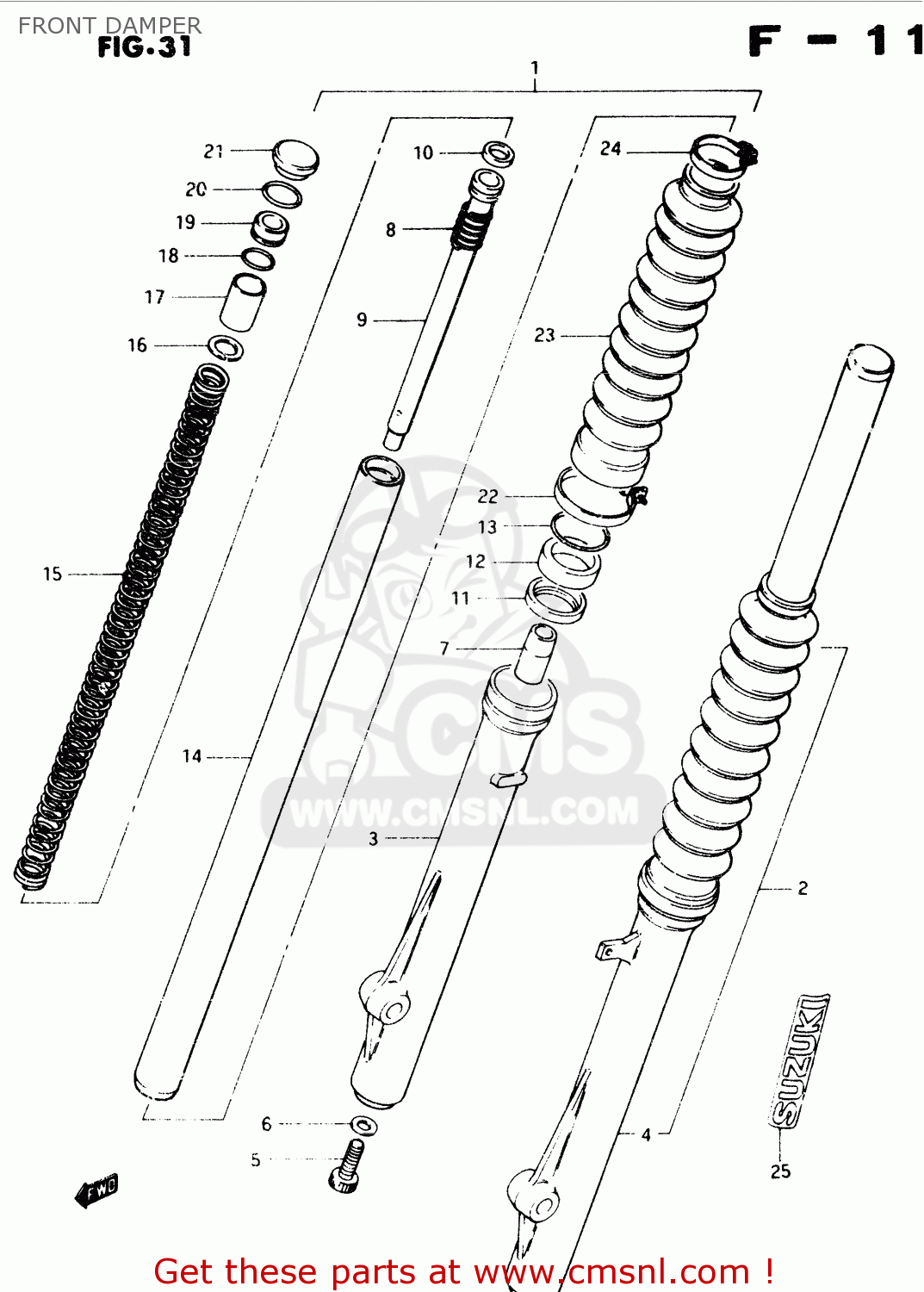

FRONT DAMPER

ref

part #

description

quantity

1

5110313620
ref: 1

DAMPER ASSY,FR FORK,R

€ 304.50

2

5110413620
ref: 2

DAMPER ASSY,FR FORK,L

€ 307.00

3

5113013620
ref: 3

OUTER TUBE, RH

€ 121.00

4

5114013620
ref: 4

TUBE,OUTER,L

€ 138.50

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114836011
ref: 6

GASKET (NAS)

€ 4.00

7

5119513620
ref: 7

PIECE, OIL LOCK

€ 9.50

8

5117748700
ref: 8

SPRING,REBOUND

€ 4.50

9

5114613640
ref: 9
<-51146-13620

CYLINDER

€ 18.00

10

5119633130
ref: 10

RING,PISTON

€ 7.50

11

5116805210
ref: 11

SPACER

€ 3.00

12

5115305210
ref: 12

SEAL,OIL

€ 8.00

13

5115648730
ref: 13

SEAL,OIL STOPPER RING

€ 2.50

14

5111013620
ref: 14

TUBE,FORK INNER

€ 149.50

15

5117113620
ref: 15

SPRING

€ 17.50

16

5117236331
ref: 16

SEAT,SPRING

€ 2.50

17

5117613620
ref: 17

SPACER

€ 3.50

18

5118133131
ref: 18

O RING

€ 5.00

19

5117548500
ref: 19

SEAT,SPRING

€ 9.00

20

5116948500
ref: 20

RING,STOPPER

€ 2.00

21

5118913620
ref: 21

CAP,FR FORK

€ 6.00

22

5157613620
ref: 22

BAND,FR FORK BOOT

€ 5.00

23-1

5157113620019
ref: 23-1
MODEL E/G ->51571-05

BOOT(BLACK)

€ 50.50

23-2

515711362019F
ref: 23-2
MODEL H/J

BOOT,FR FORK COVER

€ 53.50

23-3

5157105210
ref: 23-3
MODEL M/R

BOOT

€ 50.50

24

5157503D00
ref: 24
<-51575-13620

BAND,BOOT

€ 5.00

25

682511370017U
ref: 25
MODEL M

EMBLEM (GRAY)

€ 10.50

all assemblies
