CLUTCH
TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

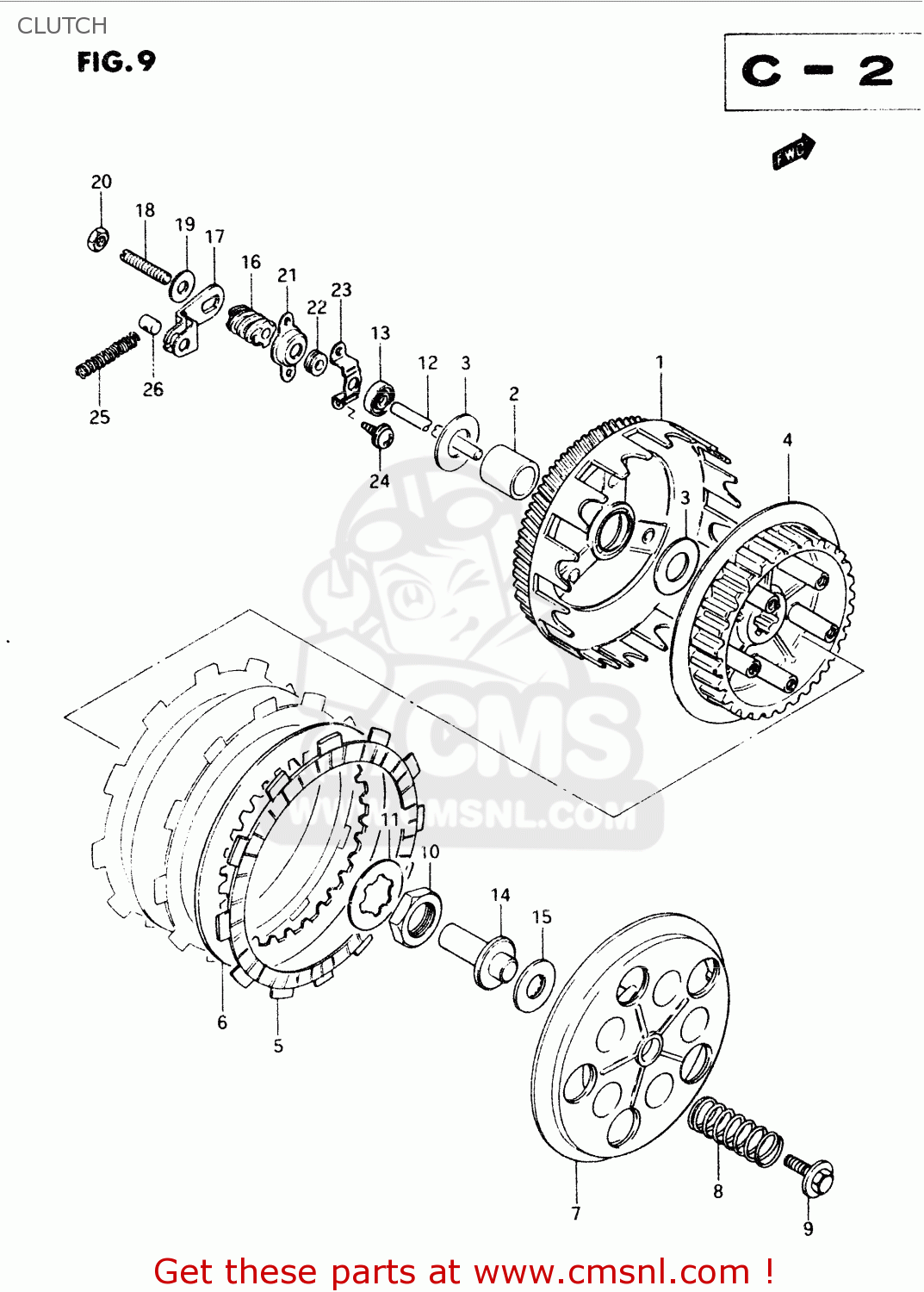

Clutch diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
CLUTCH TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
2120004700
ref: 1
NT:17/73
GEAR ASSY, PRIMARY DRIVEN
€ 173.00
2
0918017049
ref: 2
SPACER(17X22X28.5)
€ 20.50
3
0821117282
ref: 3
WASHER
€ 3.00
4
2141146000
ref: 4
HUB,CLUTCH SLEEVE
€ 41.00
5
2144104710
ref: 5
<-21441-04700
PLATE,CLUTCH DRIVE (NAS)
€ 10.00
6
2145128000
ref: 6
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
7
2146220400
ref: 7
DISC,CLUTCH PRESSURE
€ 19.50
8
0944015008
ref: 8
SPRING
€ 2.00
9
0911605003
ref: 9
BOLT 5X16
€ 2.50
10
0914016014
ref: 10
NUT
€ 4.50
11
0916717002
ref: 11
WASHER,LOCK
€ 2.00
12
2311114101
ref: 12
ROD,CLUTCH PUSH
€ 9.00
13
0928505004
ref: 13
SEAL,OIL(5.5X16X8)
€ 12.00
14
2312139101
ref: 14
PIECE,CLUTCH PUSH
€ 14.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
€ 8.50
16
2321136200
ref: 16
SCREW,CLUTCH RELEASE
€ 20.50
17
2321204701
ref: 17
ARM,CLUTCH
€ 13.50
18
0913406010
ref: 18
SCREW(6X25)
€ 3.00
19
0916006066
ref: 19
WASHER(6.5X20X1.6)
€ 2.00
20-1
0831022067
ref: 20-1
MODEL E/G/H/J/M
NUT 6MM
€ 2.50
20-2
0914006023
ref: 20-2
MODEL R
NUT
€ 2.00
21
2324136201
ref: 21
COVER,CLUTCH RELEASE SCREW
€ 4.50
22
0928105001
ref: 22
SEAL,DUST(5.3X13X5)
€ 2.50
23
2324536200
ref: 23
HOLDER,DUST SEAL
€ 5.50
24-1
0314105123
ref: 24-1
MODEL E/G/H/J/M
SCREW
€ 1.50
24-2
0311105123
ref: 24-2
MODEL R
TAPPING SCREW
€ 1.50
25
0944008026
ref: 25
SPRING
€ 2.00
26
2322239300
ref: 26
PIECE,RELEASE
€ 5.50
