REAR COMBINATION LAMP (E2,E16,E17,E18)

TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

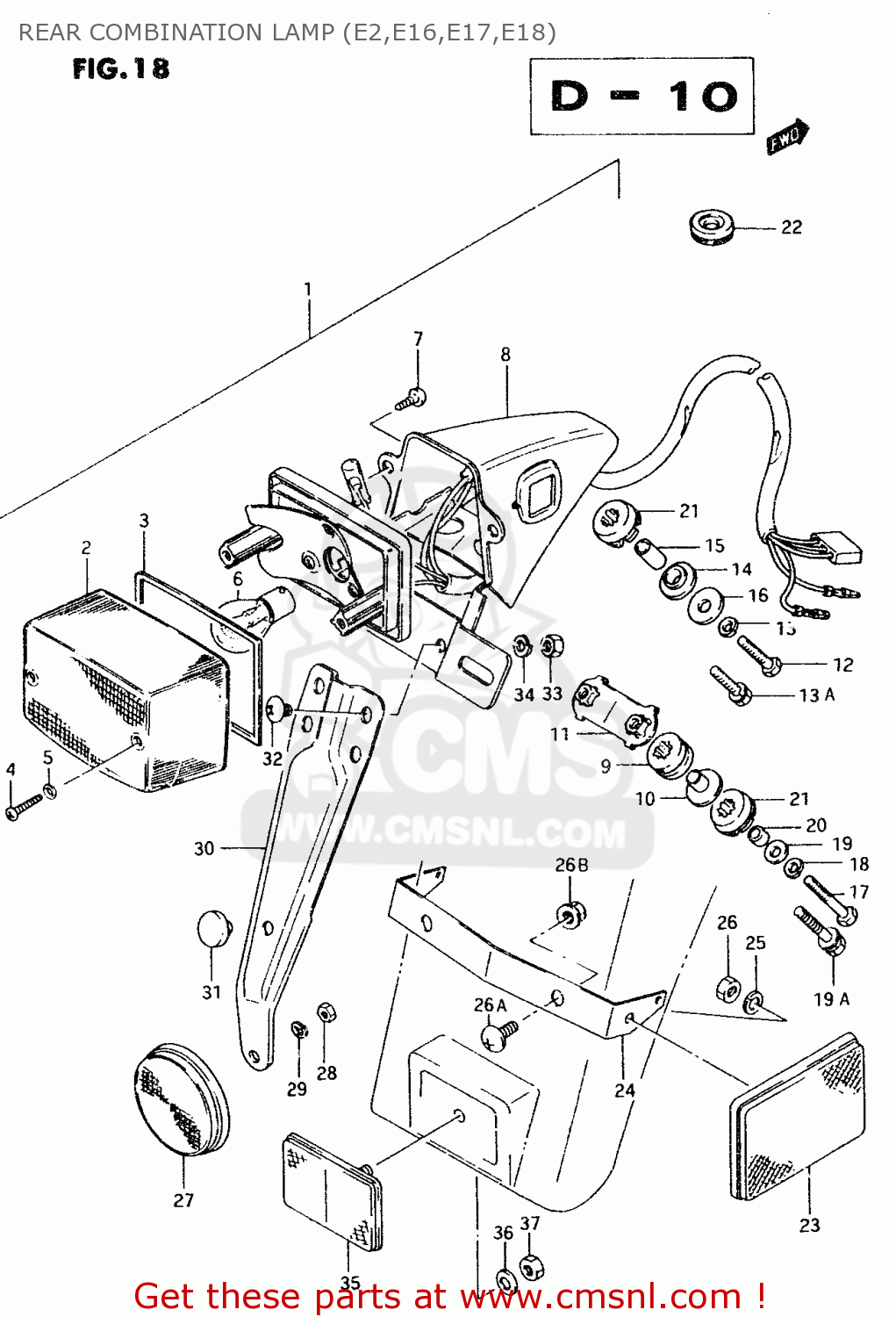

Rear combination lamp (e2,e16,e17,e18) diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

REAR COMBINATION LAMP (E2,E16,E17,E18) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
REAR COMBINATION LAMP (E2,E16,E17,E18) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
REAR COMBINATION LAMP (E2,E16,E17,E18) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3572013650
ref: 1-1
MODEL E E2
LAMP UNIT, REAR COMBINATION
€ 82.00
1-2
3572013770
ref: 1-2
MODEL G/H/J/M/R E2
LAMP UNIT,RR COMBNATION
3572013770
€ 82.00
1-3
3572013770
ref: 1-3
E16,E18
LAMP UNIT,RR COMBNATION
3572013770
€ 82.00
1-4
3572013790
ref: 1-4
MODEL M/R E17
LAMP UNIT, REAR COMBINATION
€ 101.00
2-1
3571236A70
ref: 2-1
MODEL E/G/H/J/M E2 <
LENS
3571236A70
€ 19.00
2-2
3571224531
ref: 2-2
MODEL R E2,E17
LENS
3571224531
€ 21.50
2-3
3571236A70
ref: 2-3
E16,E18 <-35712-1360
LENS
3571236A70
€ 19.00
2-4
3571224531
ref: 2-4
E17
LENS
3571224531
€ 21.50
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
3571313600
€ 3.50
4
0321104207
ref: 4
SCREW
0321104207
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112083
ref: 6
PURCHASE LOCALLY
BULB(12V21/5W)
0947112083
€ 6.00
7
0321205165
ref: 7
SCREW
€ 7.50
8
3573013652
ref: 8
BRACKET UNIT,TAIL LAMP
3573013652
€ 75.50
9
3576530950
ref: 9
CUSHION
3576530950
€ 18.00
10
3576630950
ref: 10
SPACER
3576630950
€ 2.00
11
3571613650
ref: 11
PLATE,RR COMBI
€ 0.00
12
0110706305
ref: 12
MODEL E/G/H/J/M
BOLT
€ 2.50
13
0832121064
ref: 13
MODEL E/G/H/J/M
WASHER,LOCK
0832121064
€ 2.00
13A
0157006303
ref: 13A
MODEL R
BOLT
€ 2.00
14
0932009003
ref: 14
CUSHION
0932009003
€ 2.00
15-1
0918006110
ref: 15-1
MODEL E/G/H/J/M
SPACER (6.8X10X16)
€ 3.00
15-2
0918006128
ref: 15-2
MODEL R
SPACER (6.8X10X16)
€ 3.00
16
0916006063
ref: 16
WASHER (6.5X22X1.6)
0916006063
€ 2.00
17
0110706455
ref: 17
MODEL E/G/H/J/M
BOLT
0110706455
€ 2.00
18
0832121064
ref: 18
MODEL E/G/H/J/M
WASHER,LOCK
0832121064
€ 2.00
19
0832221064
ref: 19
MODEL E/G/H/J/M
WASHER
0832221064
€ 2.00
19A
0158006453
ref: 19A
MODEL R
BOLT
€ 2.50
20
0918006090
ref: 20
SPACER (6.4X9X10.5)
€ 2.00
21
0932009010
ref: 21
CUSHION
0932009010
€ 2.50
22
0930807013
ref: 22
GROMMET
0930807013
€ 3.50
23
3595014A50
ref: 23
MODEL M/R E17
REFLEX REFLECTOR, REAR SIDE
€ 0.00
24
3597613720
ref: 24
MODEL M/R E17
BRACKET
3597613720
€ 10.50
25-1
0832121055
ref: 25-1
MODEL M E17
WASHER,LOCK
0832121055
€ 3.00
25-2
0832101053
ref: 25-2
MODEL R E17
LOCK,WASHER
€ 3.00
26-1
0831012055
ref: 26-1
MODEL M E17
NUT ,5MM
0831012055
€ 2.50
26-2
0831000053
ref: 26-2
MODEL R E17
NUT
€ 2.50
26A-1
0214206125
ref: 26A-1
MODEL M E17
SCREW 6X12
0214206125
€ 2.00
26A-2
0214206123
ref: 26A-2
MODEL R E17
SCREW 6X12
0214206123
€ 2.00
26B-1
0831626063
ref: 26B-1
MODEL M E17
NUT
€ 2.00
26B-2
0831620063
ref: 26B-2
MODEL R E17
NUT
0831620063
€ 2.00
27-1
3597030910
ref: 27-1
MODEL E E2
REFLEX REFLECTOR,RR
3597030910
€ 47.50
27-2
3597014A10
ref: 27-2
MODEL G/H/J/M/R E2
REFLEX REFLECTOR,RR
3597014A10
€ 12.00
28-1
0831000057
ref: 28-1
MODEL E/G/H/J/M E2
NUT
0831000057
€ 2.50
28-2
0831000063
ref: 28-2
MODEL R E2
NUT 6MM
0831000063
€ 2.00
29-1
0832121057
ref: 29-1
MODEL E/G/H/J/M E2
LOCK WASHER
0832121057
€ 2.00
29-2
0832101063
ref: 29-2
MODEL E E2
LOCK WASHER
0832101063
€ 2.00
30
3597448521
ref: 30
MODEL E/G/H/J/M E2
BRACKET
€ 6.00
31
0932105010
ref: 31
MODEL E/G/H/J/M E2
CUSHION
0932105010
€ 3.50
32-1
0214206127
ref: 32-1
MODEL E/G/H/J/M E2
SCREW 6X12
0214206127
€ 1.50
32-2
0214206123
ref: 32-2
MODEL R
SCREW 6X12
0214206123
€ 2.00
33-1
0831011067
ref: 33-1
MODEL E/G/H/J/M E2
NUT 6MM
€ 2.50
33-2
0831000063
ref: 33-2
MODEL R
NUT 6MM
0831000063
€ 2.00
34-1
0832121067
ref: 34-1
MODEL E/G/H/J/M E2
WASHER,LOCK
0832121067
€ 2.50
34-2
0832101063
ref: 34-2
MODEL R
LOCK WASHER
0832101063
€ 2.00
35-1
3597017300
ref: 35-1
MODEL E E16,E18
REFLEX REFLECTOR,RR
3597017300
€ 16.50
35-2
3597001A10
ref: 35-2
MODEL G/H/J/M E16,E1
REFLEX REFLECTOR,RR
3597001A10
€ 85.00
36-1
0832201057
ref: 36-1
MODEL G/H/J/M E16,E1
WASHER
0832201057
€ 2.50
36-2
0832201053
ref: 36-2
MODEL R E17
WASHER
0832201053
€ 2.50
37-1
0831000057
ref: 37-1
MODEL G/H/J/M E16,E1
NUT
0831000057
€ 2.50
37-2
0831000063
ref: 37-2
MODEL R E17
NUT 6MM
0831000063
€ 2.00
