LEFT HANDLE SWITCH

TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

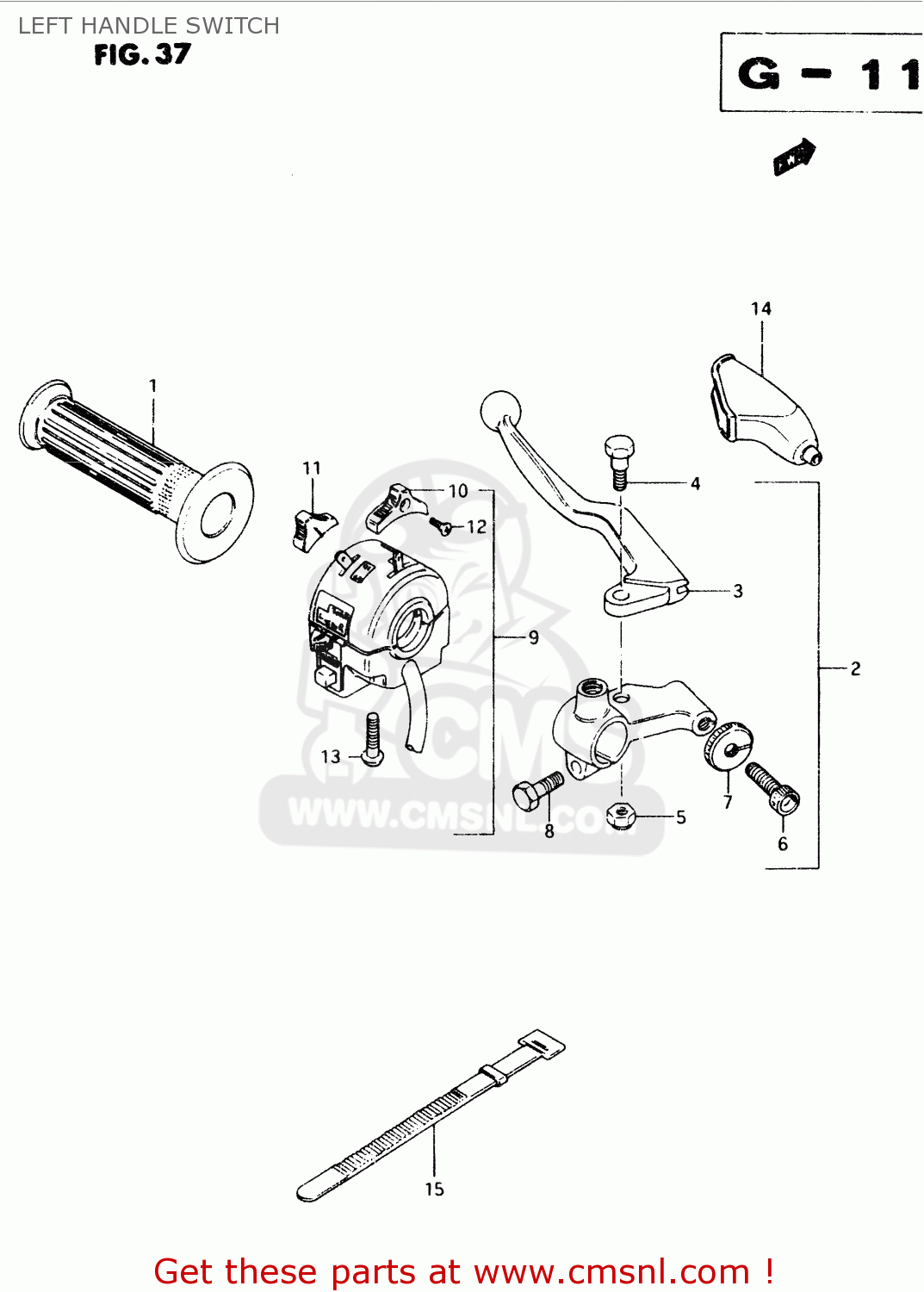

Left handle switch diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

LEFT HANDLE SWITCH TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

LEFT HANDLE SWITCH TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

prices are in EUR

ref

part #

description

quantity

1

5721113600
ref: 1

GRIP,LEFT

€ 7.50

2

5750048701
ref: 2

LEVER ASSY,CLUTCH

€ 50.00

3

5762048701
ref: 3

LEVER,CLUTCH

€ 31.00

4

5743111013
ref: 4

BOLT,LEVER PIVOT

€ 6.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744126010
ref: 6

ADJUSTER,CABLE

€ 4.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

0150006207
ref: 8

BOLT

€ 2.00

9-1

3740032460
ref: 9-1
E1,E2,E16,E17,E18,E2

SWITCH ASSY,HANDLE,L

€ 146.50

9-2

3740032490
ref: 9-2
E25

SWITCH ASSY,HANDLE,L

€ 76.50

10

3741145012
ref: 10

KNOB,LIGHTING SWITCH

€ 4.50

11

3742145012
ref: 11
EXCEPT E25

KNOB,DIMMER SWITCH

€ 5.50

12

0212203068
ref: 12

SCREW

€ 1.00

13

0211205257
ref: 13

SCREW

€ 2.00

14

5734140001
ref: 14

COVER,CLUTCH LEVER

€ 7.50

15

0940712402
ref: 15

CLAMP(L:120)

€ 3.00
