FUEL TANK (MODEL E/G/H)

TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

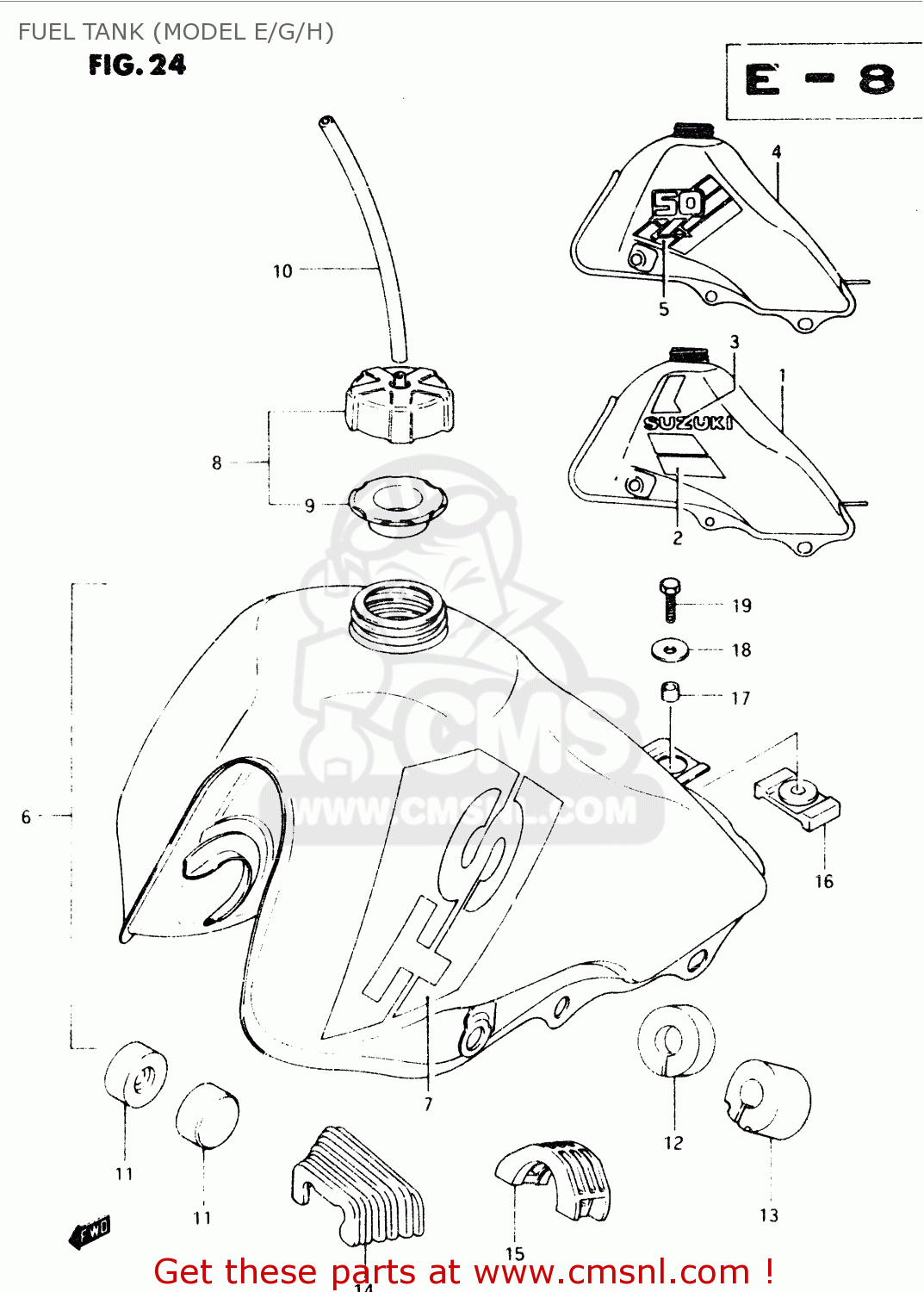

Fuel tank (model e/g/h) diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

FUEL TANK (MODEL E/G/H) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
FUEL TANK (MODEL E/G/H) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
FUEL TANK (MODEL E/G/H) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
prices are in EUR
ref
part #
description
quantity
1-1
441001371014C
ref: 1-1
MODEL E ->44110-1370
TANK ASSY, FUEL (RED)
€ 254.00
1-2
4410013710163
ref: 1-2
MODEL E ->44110-1370
TANK ASSY, FUEL (YELLOW)
€ 254.00
1-3
441001371021C
ref: 1-3
MODEL E ->44110-1370
TANK ASSY, FUEL (BLACK)
€ 254.00
1-4
441001371008Y
ref: 1-4
MODEL E ->44110-1370
TANK ASSY, FUEL (BLUE)
€ 254.00
2-1
681101365072P
ref: 2-1
MODEL E,FOR 14C
TAPE SET, FUEL TANK
681101365072P
€ 21.00
2-2
681101365067H
ref: 2-2
MODEL E,FOR 163
TAPE SET, FUEL TANK
€ 23.00
2-3
681101365088W
ref: 2-3
MODEL E,FOR 21C
TAPE SET, FUEL TANK
€ 27.00
3-1
6811146700064
ref: 3-1
MODEL E,FOR 14C,21C,
EMBLEM(WHITE)
6811146700064
€ 13.00
3-2
6811146700019
ref: 3-2
MODEL E,FOR 163
EMBLEM(BLACK)
6811146700019
€ 11.50
4-1
441001376014C
ref: 4-1
MODEL G ->44110-1370
TANK ASSY,FUEL
€ 254.00
4-2
4410013760163
ref: 4-2
MODEL G ->44110-1370
TANK ASSY,FUEL
€ 254.00
4-3
441001376021C
ref: 4-3
MODEL G ->44110-1370
TANK ASSY,FUEL
€ 254.00
4-4
441001376008Y
ref: 4-4
MODEL G ->44110-1370
TANK ASSY, FUEL (BLUE)
€ 254.00
5-1
68110136708DZ
ref: 5-1
MODEL G,FOR 14C
TAPE SET, FUEL TANK
€ 22.00
5-2
681101367074H
ref: 5-2
MODEL G,FOR 163
TAPE SET, FUEL TANK
€ 22.50
5-3
68110136708DY
ref: 5-3
MODEL G,FOR 21C
TAPE SET, FUEL TANK
€ 20.00
5-4
68110136708EA
ref: 5-4
MODEL G,FOR 08Y
TAPE SET, FUEL TANK
€ 19.00
6-1
441001377014L
ref: 6-1
MODEL H
TANK ASSY, FUEL (WHITE)
€ 371.00
6-2
441001377021C
ref: 6-2
MODEL H
TANK ASSY, FUEL (BLACK)
€ 371.00
6-3
441001377025Y
ref: 6-3
MODEL H
TANK ASSY,FUEL
€ 371.00
7-1
681101369076G
ref: 7-1
MODEL H,FOR 14L,25Y
TAPE SET, FUEL TANK
681101369076G
€ 27.00
7-2
681101369090L
ref: 7-2
MODEL H,FOR 21C
TAPE SET, FUEL TANK
€ 26.50
8
4420005812
ref: 8
CAP SET,FUEL TANK
4420005812
€ 19.50
9
4424805210
ref: 9
GASKET (NAS)
4424805210
€ 4.50
10
0935250823300
ref: 10
HOSE
0935250823300
€ 13.00
11
0932910019
ref: 11
CUSHION
0932910019
€ 6.00
12
4454213610
ref: 12
->44545-13610
CUSHION, LOWER RH
4454213610
€ 5.00
13
4454513610
ref: 13
CUSHION
4454513610
€ 5.00
14
4455513700
ref: 14
CUSHION,FUEL TANK LWR
4455513700
€ 9.50
15
4454113600
ref: 15
CUSHION,FUEL TANK CTR
4454113600
€ 8.50
16
4454213600
ref: 16
CUSHION,FUEL TANK RR
4454213600
€ 4.00
17
0918006011
ref: 17
SPACER (6.1X9X9)
0918006011
€ 2.00
18-1
0916006066
ref: 18-1
MODEL E <-09160-0602
WASHER(6.5X20X1.6)
0916006066
€ 2.00
18-2
0916006012
ref: 18-2
MODEL G/H
WASHER(6,5X22X1.6)
€ 2.00
19
0150006207
ref: 19
BOLT
0150006207
€ 2.00
