REAR COMBINATION LAMP (E25)

TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

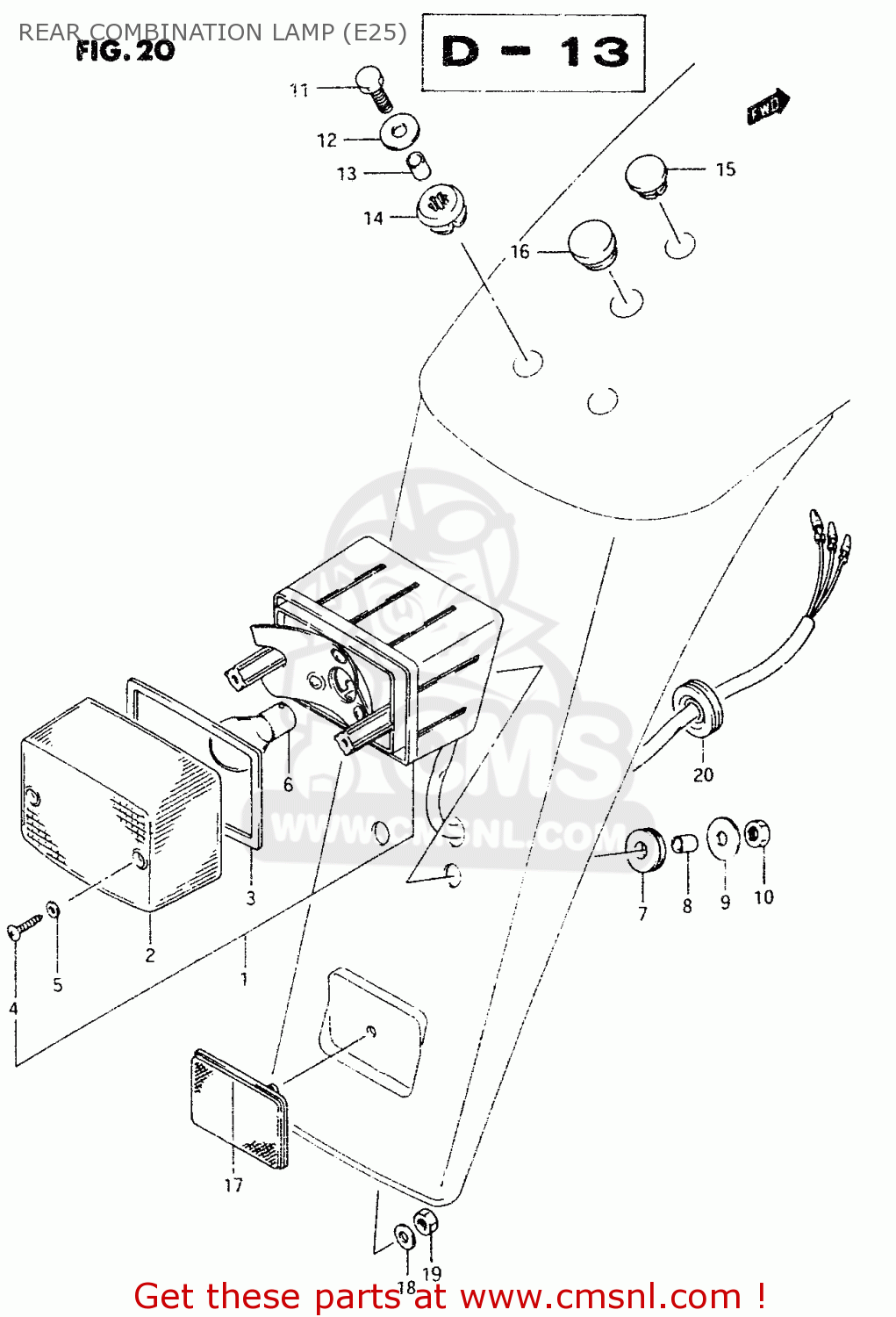

Rear combination lamp (e25) diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

REAR COMBINATION LAMP (E25) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
REAR COMBINATION LAMP (E25) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
REAR COMBINATION LAMP (E25) TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
prices are in EUR
ref
part #
description
quantity
1
3571013780
ref: 1
LAMP ASSY, REAR COMBINATION
€ 78.50
2
3571236A70
ref: 2
LENS
3571236A70
€ 19.00
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
3571313600
€ 3.50
4
0321104207
ref: 4
SCREW
0321104207
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112083
ref: 6
BULB(12V21/5W)
0947112083
€ 6.00
7
0932008013
ref: 7
CUSHION
0932008013
€ 4.00
8
0918006152
ref: 8
SPACER
0918006152
€ 3.00
9
0916006063
ref: 9
WASHER (6.5X22X1.6)
0916006063
€ 2.00
10-1
0831012066
ref: 10-1
MODEL G/H/J/M
NUT
0831012066
€ 2.00
10-2
0831000063
ref: 10-2
MODEL R
NUT 6MM
0831000063
€ 2.00
11
0150006207
ref: 11
BOLT
0150006207
€ 2.00
12
0916006027
ref: 12
WASHER (6.5X20X1.2)
0916006027
€ 2.00
13
0918006090
ref: 13
SPACER (6.4X9X10.5)
€ 2.00
14
0932009010
ref: 14
CUSHION
0932009010
€ 2.50
15
0925014005
ref: 15
PLUG(OD:19)
0925014005
€ 2.00
16
0925018003
ref: 16
PLUG(OD:22)
0925018003
€ 2.00
17
3597001A10
ref: 17
REFLEX REFLECTOR,RR
3597001A10
€ 85.00
18
0832201057
ref: 18
WASHER
0832201057
€ 2.50
19-1
0831000057
ref: 19-1
MODEL G/H/J/M
NUT
0831000057
€ 2.50
19-2
0831610053
ref: 19-2
MODEL R
NUT
0831610053
€ 2.50
20-1
0930807013
ref: 20-1
MODEL G/H/J/M
GROMMET
0930807013
€ 3.50
20-2
0930807010
ref: 20-2
MODEL R
GROMMET
0930807010
€ 2.50
