MAGNETO
TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

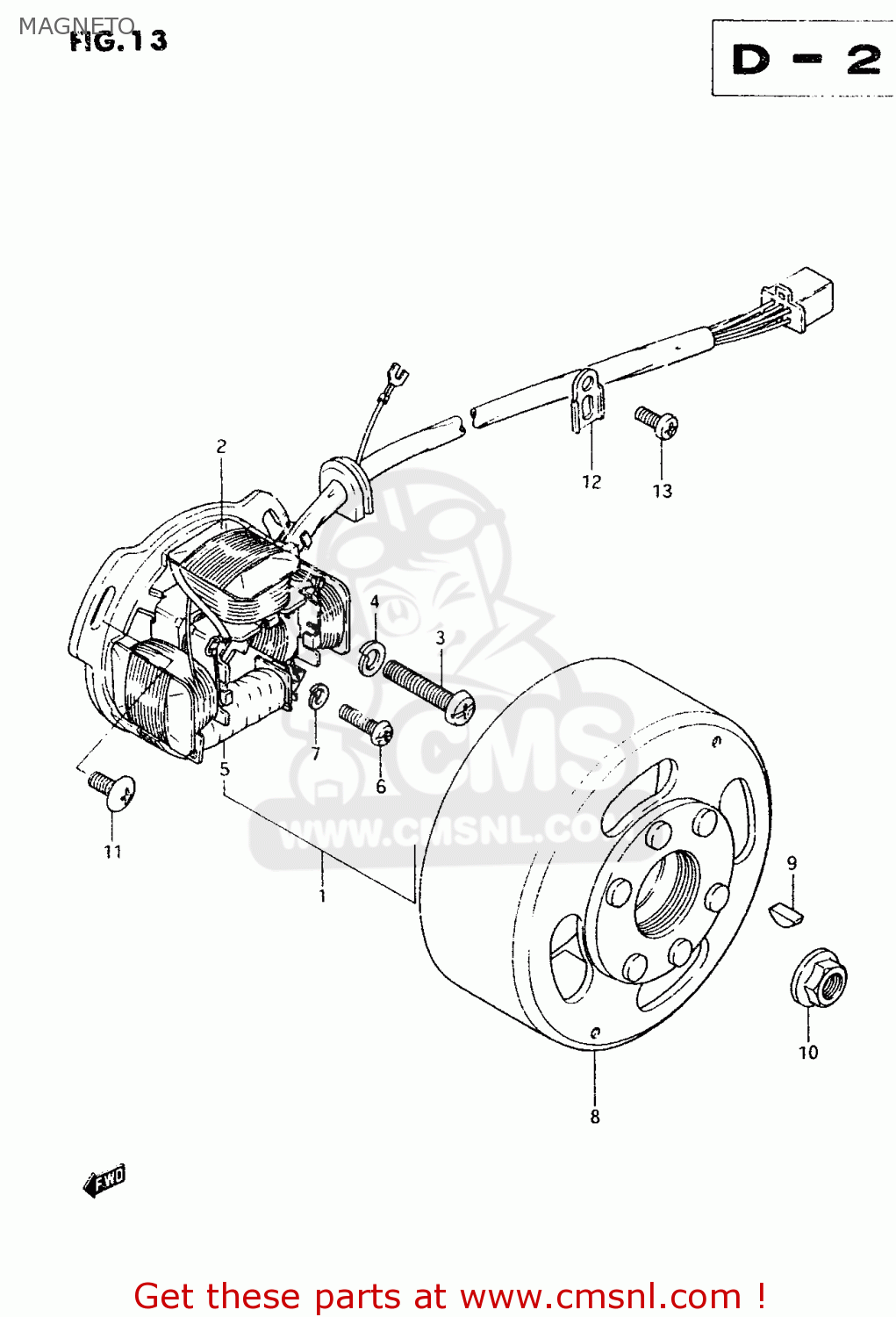

Magneto diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
MAGNETO TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
3210113620
ref: 1
STARTER ASSY
€ 238.50
2
3212048720
ref: 2
COIL,STARTER
€ 132.50
3-1
0211206308
ref: 3-1
MODEL E/G/H/J/M
SCREW 6X30
€ 2.50
3-2
0211206307
ref: 3-2
MODEL R
SCREW
€ 2.50
4-1
0832121067
ref: 4-1
MODEL E/G/H/J/M
WASHER,LOCK
€ 2.50
4-2
0832101063
ref: 4-2
MODEL R
LOCK WASHER
€ 2.00
5
3214035410
ref: 5
COIL,PRIMARY
€ 58.50
6-1
0211204167
ref: 6-1
MODEL E/G/H/J/M
SCREW
€ 1.00
6-2
0211204163
ref: 6-2
MODEL R
SCREW 4X16
€ 1.00
7-1
0832121047
ref: 7-1
MODEL E/G/H/J/M
WASHER,LOCK 4M
€ 2.00
7-2
0832101043
ref: 7-2
MODEL R
WASHER,LOCK
€ 2.00
8
3210213620
ref: 8
ROTOR ASSY
€ 164.50
9
0834131039
ref: 9
KEY
€ 2.00
10-1
0831610107
ref: 10-1
MODEL E/G/H/J/M
NUT
€ 2.00
10-2
0831610103
ref: 10-2
MODEL R
NUT
€ 2.00
11-1
0214205128
ref: 11-1
MODEL E/G/H/J/M
SCREW
€ 1.50
11-2
0214205123
ref: 11-2
MODEL R
SCREW 5X12
€ 1.50
12
3149745000
ref: 12
CLAMP,GENERATOR LEAD WIRE
€ 1.50
13-1
0211205087
ref: 13-1
MODEL E/G/H/J/M
SCREW
€ 2.00
13-2
0211205083
ref: 13-2
MODEL R
SCREW
€ 2.00
