CRANKCASE COVER

TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

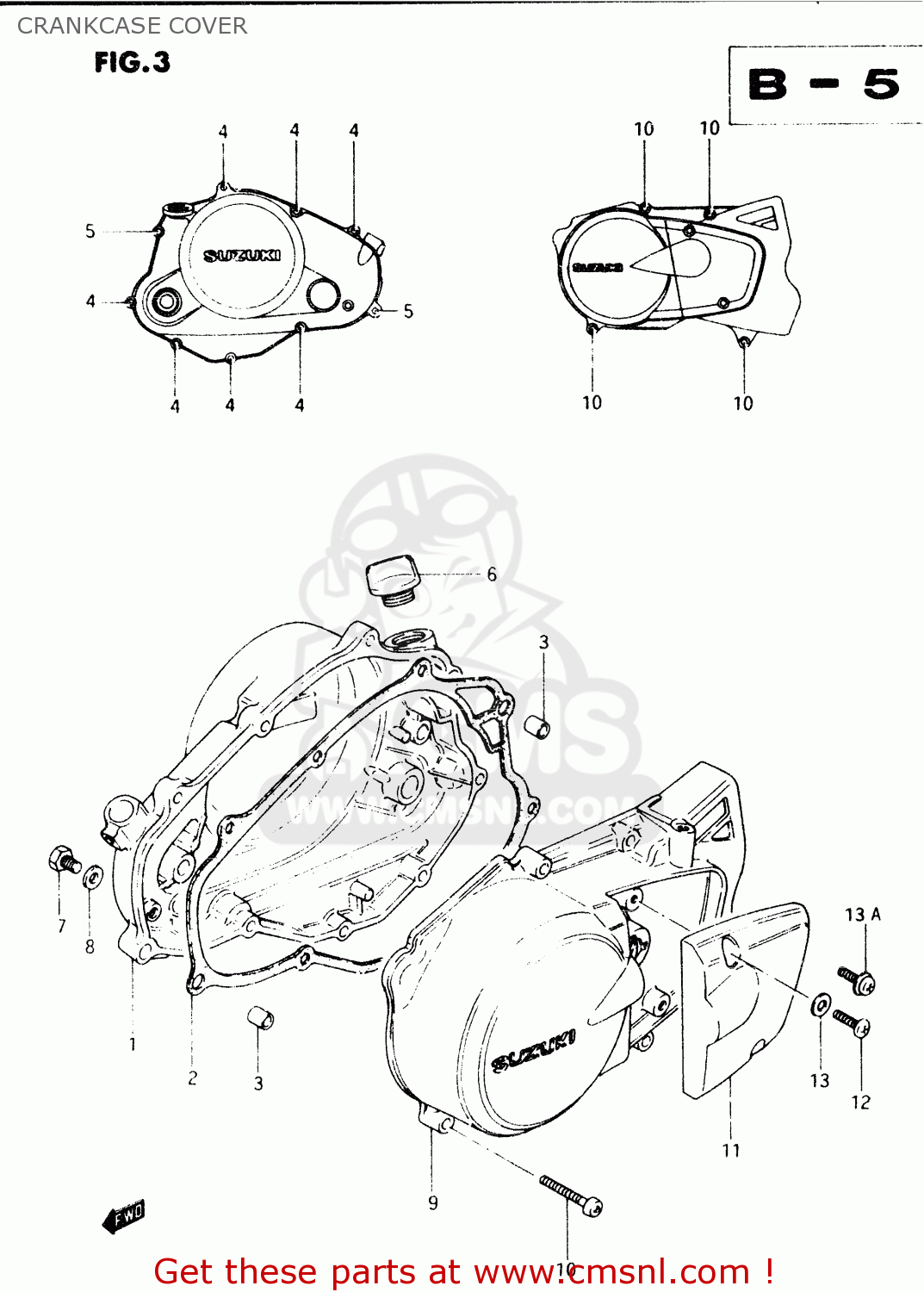

Crankcase cover diagram TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)

CRANKCASE COVER TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
CRANKCASE COVER TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
CRANKCASE COVER TS50XK 1988 (J) (E01 E02 E16 E18 E21 E25)
prices are in EUR
ref
part #
description
quantity
1
1134113601
ref: 1
COVER,CLUTCH
1134113601
€ 112.00
2
1148213610
ref: 2
<-11482-13600
GASKET,CLUTCH COVER (NAS)
1148213610
€ 25.00
3
0421109129
ref: 3
PIN
0421109129
€ 2.00
4-1
0211206255
ref: 4-1
MODEL E/G/H/J/M
SCREW
€ 1.50
4-2
0211206253
ref: 4-2
MODEL R
SCREW
0211206253
€ 1.50
5-1
0211206355
ref: 5-1
MODEL E/G/H/J/M
SCREW
€ 2.50
5-2
0211206353
ref: 5-2
MODEL R
SCREW
€ 2.50
6
0920020810
ref: 6
PLUG SET
0920020810
€ 8.00
7
0912806037
ref: 7
SCREW(6X10)
0912806037
€ 2.00
8
0916806001
ref: 8
GASKET(6.2X11X1) (NAS)
0916806001
€ 1.50
9
1135113602
ref: 9
COVER,MAGNETO
1135113602
€ 58.00
10-1
0912505066
ref: 10-1
MODEL E/G/H/J/M
SCREW(5X25)
0912505066
€ 2.00
10-2
0211205253
ref: 10-2
MODEL R
SCREW
0211205253
€ 1.50
11
1138713601
ref: 11
CAP,CLUTCH RELEASE ADJUST
1138713601
€ 17.00
12
0211205125
ref: 12
MODEL E/G/H/J/M
SCREW
0211205125
€ 1.50
13
0832221055
ref: 13
MODEL E/G/H/J/M
WASHER,5MM
0832221055
€ 2.50
13A
0211215123
ref: 13A
MODEL R
SCREW 5X12
0211215123
€ 1.50
