AIR CLEANER (MODEL K5)
VL800 VOLUSIA 2004 (K4) USA (E03)

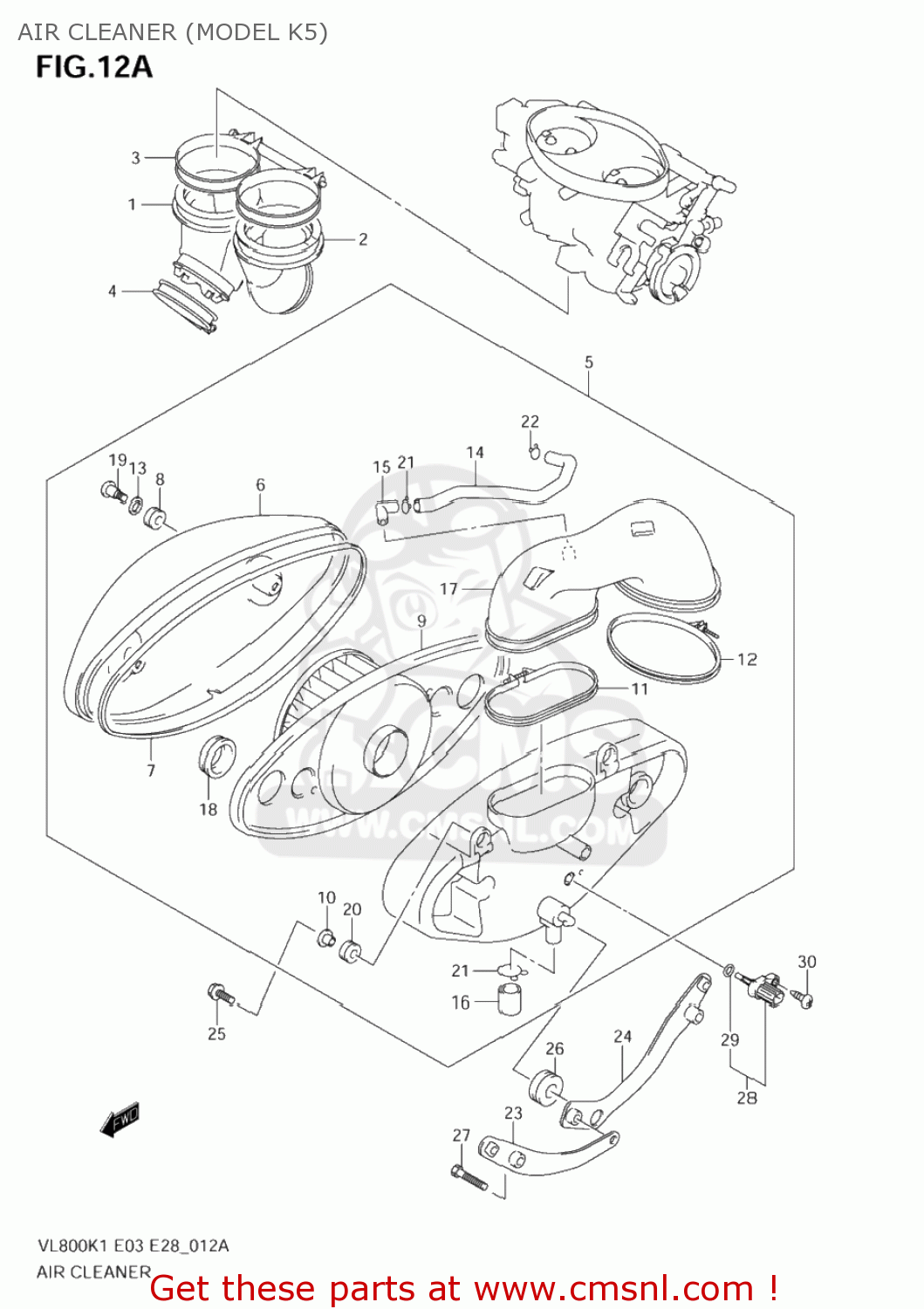

Air cleaner (model k5) diagram VL800 VOLUSIA 2004 (K4) USA (E03)
AIR CLEANER (MODEL K5) VL800 VOLUSIA 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1311141F00
ref: 1
PIPE,INTAKE NO.1
€ 26.00
2
1312141F00
ref: 2
PIPE,INTAKE NO.2
€ 26.00
3
1317041F00
ref: 3
CLAMP,INTAKE PIPE
€ 27.00
4
1317015G00
ref: 4
CLAMP,INTAKE PIPE
€ 4.00
5
1370041F20
ref: 5
CLEANER ASSY,AIR
€ 408.00
6
1374141F00
ref: 6
CAP,AIR CLEANER
€ 186.50
7
1374641F00
ref: 7
GASKET (NAS)
€ 13.50
8
1374741F00
ref: 8
CUSHION
€ 2.50
9
1378041F20
ref: 9
FILTER ASSY
€ 52.00
10
1381229C50
ref: 10
COLLAR,CLEANER CASE
€ 1.50
11
1382641F00
ref: 11
CLAMP
€ 18.00
12-1
1382641F10
ref: 12-1
CLAMP
€ 26.50
12-2
1382641F11
ref: 12-2
CLAMP
€ 26.50
13
1383341F00
ref: 13
WASHER
€ 3.50
14
1385341F10
ref: 14
TUBE,BREATHER
€ 21.50
15
1385814D10
ref: 15
13858-14D20
JOINT
€ 6.00
16
1385941B10
ref: 16
PLUG
€ 5.50
17
1388141F10
ref: 17
TUBE,OUTLET
€ 89.00
18
1389141F20
ref: 18
TUBE,INLET
€ 7.50
19
0913906087
ref: 19
09139-06126
SCREW(6X20)
€ 4.00
20
0932009016
ref: 20
CUSHION
€ 2.50
21
0940114301
ref: 21
CLIP
€ 2.00
22
0940116301
ref: 22
CLAMP
€ 2.50
23
1376041F00
ref: 23
BRACKET,AIR CLEANER FR
€ 15.50
24
1377041F00
ref: 24
BRACKET,AIR CLEANER RR
€ 22.50
25
0913906063
ref: 25
SCREW(6X20)
€ 4.00
26
0932008018
ref: 26
CUSHION
€ 4.00
27
0150006253
ref: 27
01500-0625A
BOLT
€ 2.50
28
1365041F10
ref: 28
SENSOR,AIR TEMP
€ 41.50
29
1365541F10
ref: 29
O RING
€ 7.00
30
0351205163
ref: 30
03511-0516A
SCREW
€ 2.50
