WATER PUMP
VL800 VOLUSIA 2004 (K4) USA (E03)

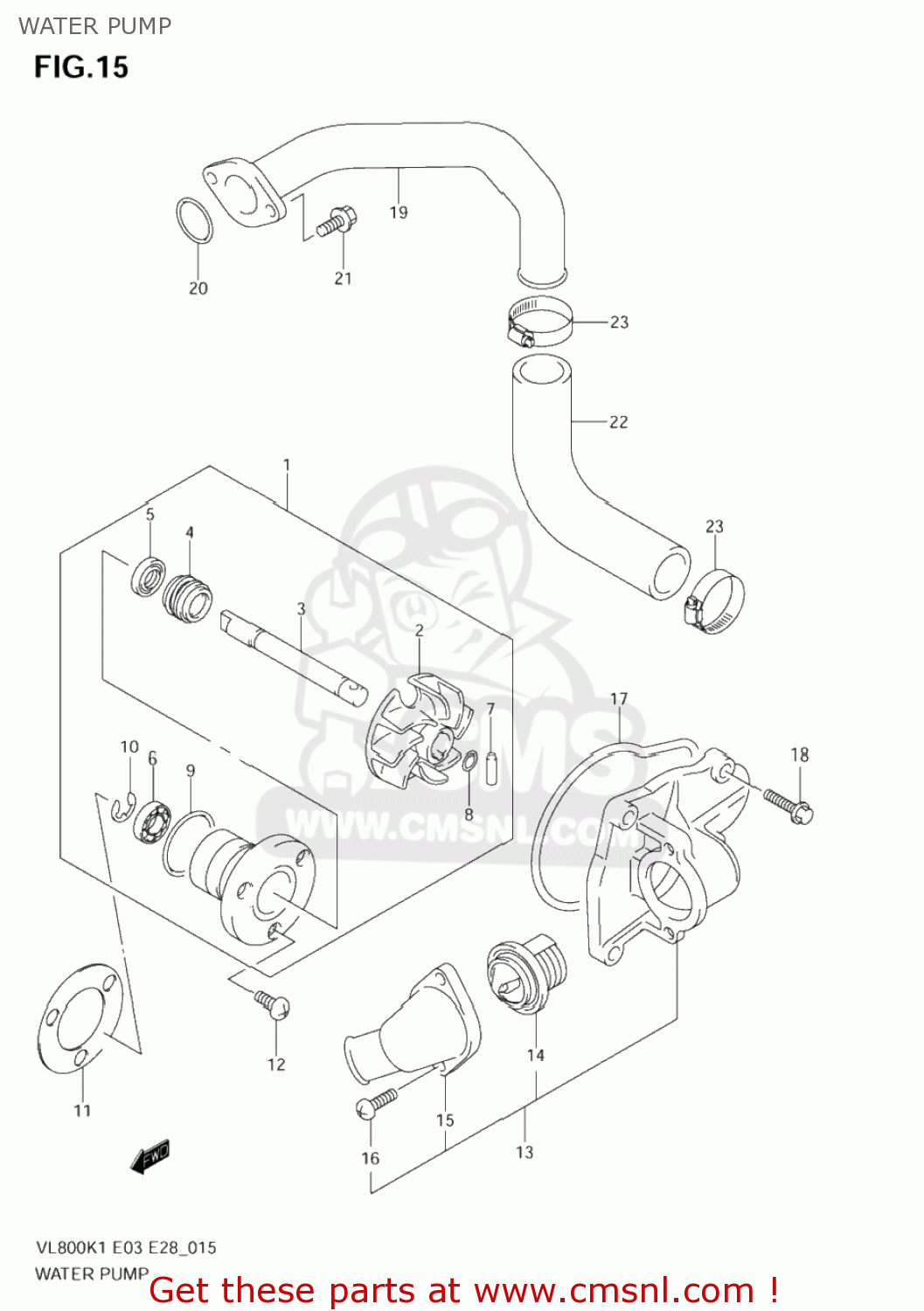

Water pump diagram VL800 VOLUSIA 2004 (K4) USA (E03)
WATER PUMP VL800 VOLUSIA 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1740038A02
ref: 1-1
17400-38A10
PUMP ASSEMBLY,WATER
€ 133.50
1-2
1740038A10
ref: 1-2
PUMP ASSY,WATER
€ 133.50
2
1749138A00
ref: 2
IMPELLER
€ 12.50
3
1751138A00
ref: 3
SHAFT
€ 30.50
4-1
1747002F00
ref: 4-1
SEAL,MECHANICAL
€ 21.50
4-2
1747002F10
ref: 4-2
SEAL,MECHANICAL
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
€ 4.50
6
0926210004
ref: 6
BEARING(10X22X6)
€ 20.50
7
1751638A00
ref: 7
PIN
€ 4.00
8
1751538A00
ref: 8
O RING
€ 1.50
9
1741738A00
ref: 9
O RING
€ 2.50
10
0833211086
ref: 10
08332-1108A
E RING
€ 2.00
11
1743138A10
ref: 11
GASKET,WATER PUMP (NAS)
€ 5.00
12
0211206123
ref: 12
02112-0612A
SCREW
€ 1.50
13-1
1741038A00
ref: 13-1
CASE ASSY,WATER PUMP
€ 166.50
13-2
1741041F01
ref: 13-2
CASE ASSY,WATER PUMP
€ 158.00
13-3
1741041F10
ref: 13-3
CAP ASSY,WATER PUMP
€ 96.50
14
1767033410
ref: 14
THERMOSTAT,WATER
€ 37.00
15-1
1741245C00
ref: 15-1
CONNECTOR
€ 47.00
15-2
1741241F00
ref: 15-2
CONNECTOR
€ 30.00
16
0211206163
ref: 16
02112-0616A
SCREW 6X16
€ 2.00
17
1743538A00
ref: 17
O RING,WATER PUMP CAP
€ 5.00
18
0154706203
ref: 18
01547-0620B
SCREW
€ 2.50
19
1789041F00
ref: 19
PIPE,CYLINDER INLET
€ 29.00
20
0928024007
ref: 20
O RING(D:2.3,ID:24.4)
€ 2.00
21
0154706163
ref: 21
01547-0616B
BOLT
€ 2.50
22
1785838820
ref: 22
HOSE,WATER PUMP OUTLET
€ 16.50
23
0940232511
ref: 23
CLAMP
€ 11.50
