THROTTLE BODY (MODEL K5)
VL800 VOLUSIA 2004 (K4) USA (E03)

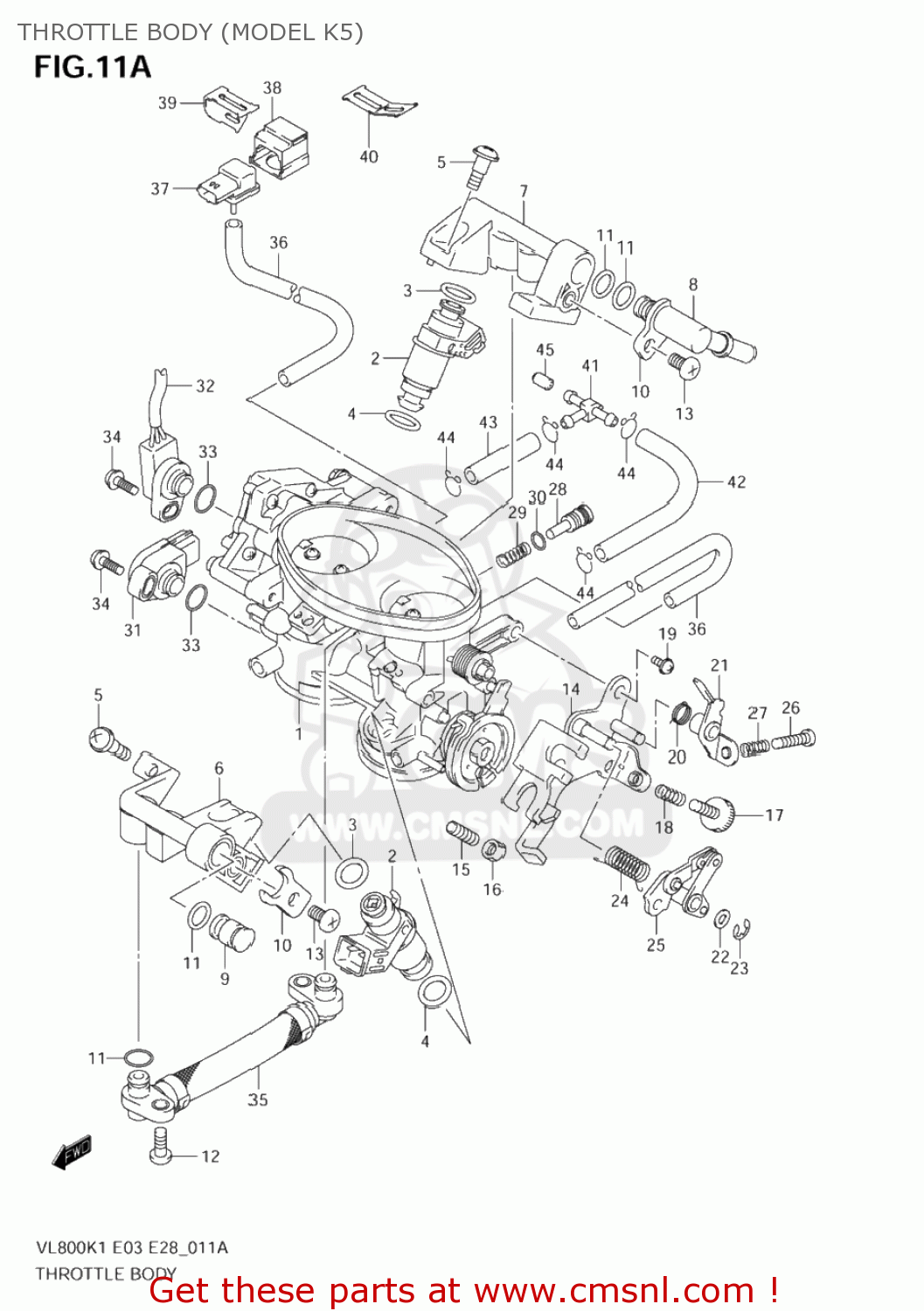

Throttle body (model k5) diagram VL800 VOLUSIA 2004 (K4) USA (E03)
THROTTLE BODY (MODEL K5) VL800 VOLUSIA 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1340141F00
ref: 1-1
THROTTLE BODY KIT
€ 883.00
1-2
1340141F10
ref: 1-2
THROTTLE BODY KIT
€ 0.00
2
1571014G00
ref: 2
INJECTOR ASSY
€ 311.00
3
1572110G00
ref: 3
O RING
€ 7.00
4
1572210G00
ref: 4
O RING
€ 13.00
5
1360234F50
ref: 5
SCREW,THROTTLE COVER
€ 2.50
6
1347110F00
ref: 6
PIPE,FUEL
€ 37.50
7
1347110F10
ref: 7
PIPE,FUEL
€ 38.50
8
1347341F00
ref: 8
JOINT
€ 111.50
9
1347610F00
ref: 9
PLUG
€ 19.00
10
1342810F00
ref: 10
PLATE
€ 10.50
11
1572124F00
ref: 11
O RING
€ 7.50
12
1360210F00
ref: 12
SCREW
€ 2.50
13
1360210F10
ref: 13
SCREW
€ 2.50
14
1356541F00
ref: 14
PLATE,STAY
€ 82.00
15
1326710G00
ref: 15
SCREW,STOP
€ 9.50
16
1366110G00
ref: 16
NUT
€ 3.00
17
1360510F00
ref: 17
SCREW,IDLE
€ 23.50
18
1326835F00
ref: 18
SPRING
€ 4.50
19
1360110G00
ref: 19
SCREW
€ 3.00
20
1342635F10
ref: 20
SPRING
€ 4.00
21
1341440F00
ref: 21
LEVER,LINK
€ 25.50
22
1342735F10
ref: 22
WASHER
€ 3.50
23
1342435F10
ref: 23
E CLIP
€ 3.00
24
1342640F00
ref: 24
SPRING
€ 4.00
25
1342040F20
ref: 25
LEVER SET,LINK
€ 60.00
26
1360210F20
ref: 26
SCREW
€ 3.50
27
1354324F00
ref: 27
SPRING
€ 4.50
28
1327910G00
ref: 28
SCREW,ADJUST
€ 8.50
29
1327110G00
ref: 29
SPRING
€ 3.00
30
1329510G00
ref: 30
O RING
€ 2.50
31
1358040F20
ref: 31
SENSOR ASSY,TH
€ 163.50
32
1358041F00
ref: 32
SENSOR ASSY,TH
€ 158.50
33
1357540F00
ref: 33
O RING
€ 3.50
34
1360540F00
ref: 34
SCREW
€ 3.00
35
1368010F00
ref: 35
PIPE ASSY,FUEL
€ 85.50
36
1368341FA0
ref: 36
HOSE
€ 15.00
37
1859142F00
ref: 37
SENSOR,PRESSURE
€ 367.00
38
1859542F20
ref: 38
HOLDER,SENSOR
€ 15.00
39
1859841F00
ref: 39
BRACKET,BOOST SENSOR FR
€ 3.50
40
1859941F00
ref: 40
BRACKET,BOOST SENSOR RR
€ 3.00
41
1347124F30
ref: 41
JOINT
€ 11.50
42
1368341FB0
ref: 42
HOSE
€ 0.00
43
1368341FC0
ref: 43
HOSE
€ 4.00
44
1369324F00
ref: 44
CLIP
€ 2.00
45
1368510F00
ref: 45
PIPE
€ 5.00
