REAR SWINGING ARM (MODEL K3/K4/K5)

VL800 VOLUSIA 2004 (K4) USA (E03)

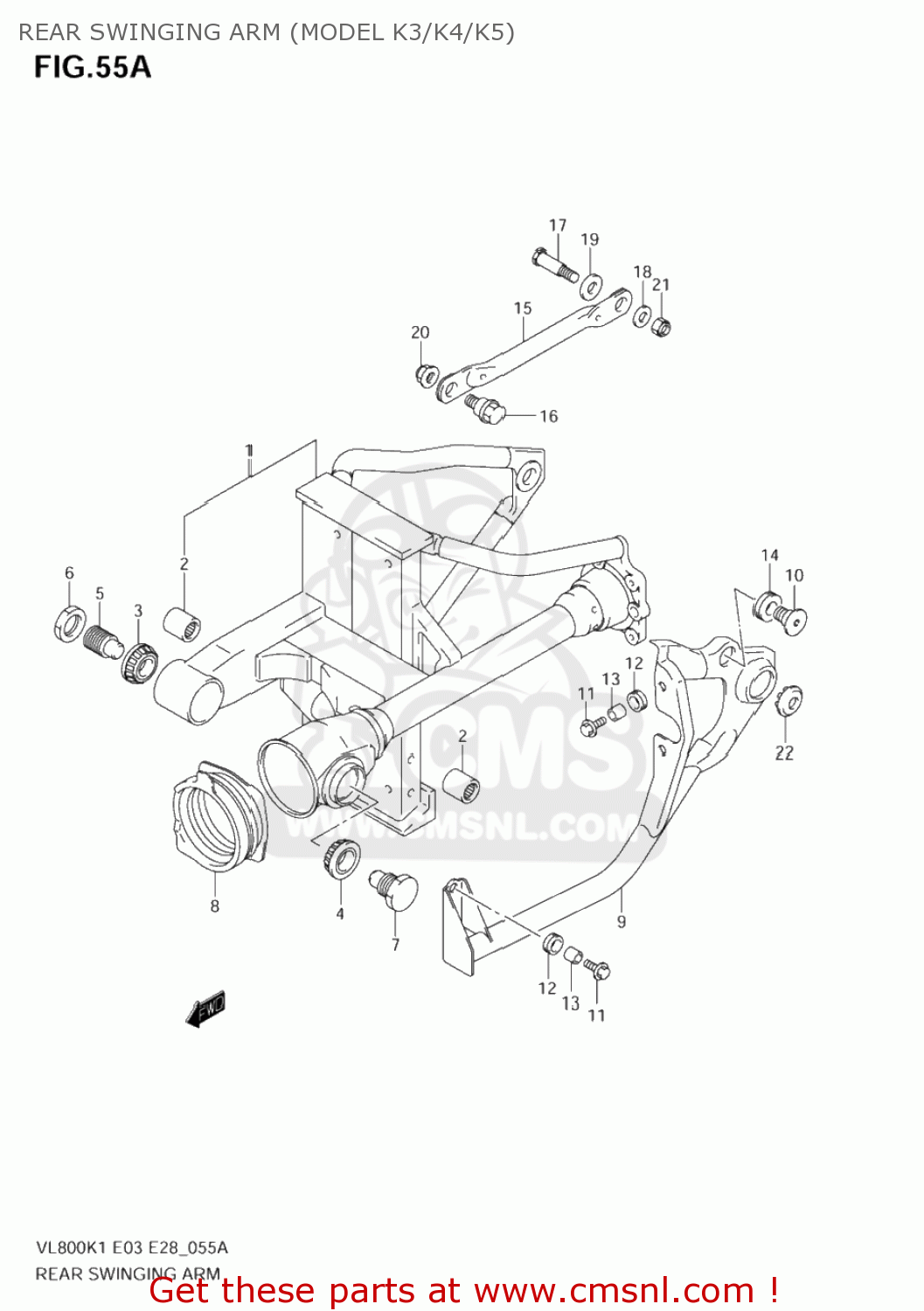

Rear swinging arm (model k3/k4/k5) diagram VL800 VOLUSIA 2004 (K4) USA (E03)

REAR SWINGING ARM (MODEL K3/K4/K5) VL800 VOLUSIA 2004 (K4) USA (E03)

REAR SWINGING ARM (MODEL K3/K4/K5) VL800 VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6110141871019
ref: 1
61101-41890-019

SWINGINGARM SET,RR

€ 919.00

2

0926317037
ref: 2

BEARING(17X24X25)

€ 19.00

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

5

6121324A00
ref: 5

BOLT,RR SWGARM PIVOT

€ 17.00

6

0914024007
ref: 6

NUT

€ 4.50

7

6121310F00
ref: 7

BOLT,SWINGINGARM PIVOT,L

€ 16.00

8

6137241F00
ref: 8

BOOT,PROPELLER SHAFT

€ 11.00

9

6112041F10019
ref: 9

COVER,RR SWINGINGARM,L(BLACK)

€ 160.50

10

6112741F10
ref: 10

BOLT,RR SWGARM

€ 10.50

11

0911606152
ref: 11

BOLT(6X20)

€ 2.00

12-1

0932010049
ref: 12-1

CUSHION

€ 2.00

12-2

0932010056
ref: 12-2

CUSHION

€ 2.00

13

0918006286
ref: 13

SPACER(6.5X10X9.4)

€ 2.50

14

0932022003
ref: 14

CUSHION

€ 3.00

15

6431041F00
ref: 15

TORQUE LINK,RR

€ 15.50

16

0911110062
ref: 16

BOLT(10X22)

€ 5.00

17

0911110057
ref: 17

BOLT(10X41)

€ 4.00

18

0916010085
ref: 18
09160-10142

WASHER (10X20X2.3)

€ 2.00

19

0932012501
ref: 19

CUSHION

€ 5.50

20

0831931103
ref: 20
08319-3110A

NUT

€ 3.00

21

0915910027
ref: 21

NUT

€ 3.00

22

4189942F10
ref: 22

CAP,FRAME PIVOT

€ 8.50
