HANDLEBAR (MODEL K1/K2/K3/K4)

VL800 VOLUSIA 2004 (K4) USA (E03)

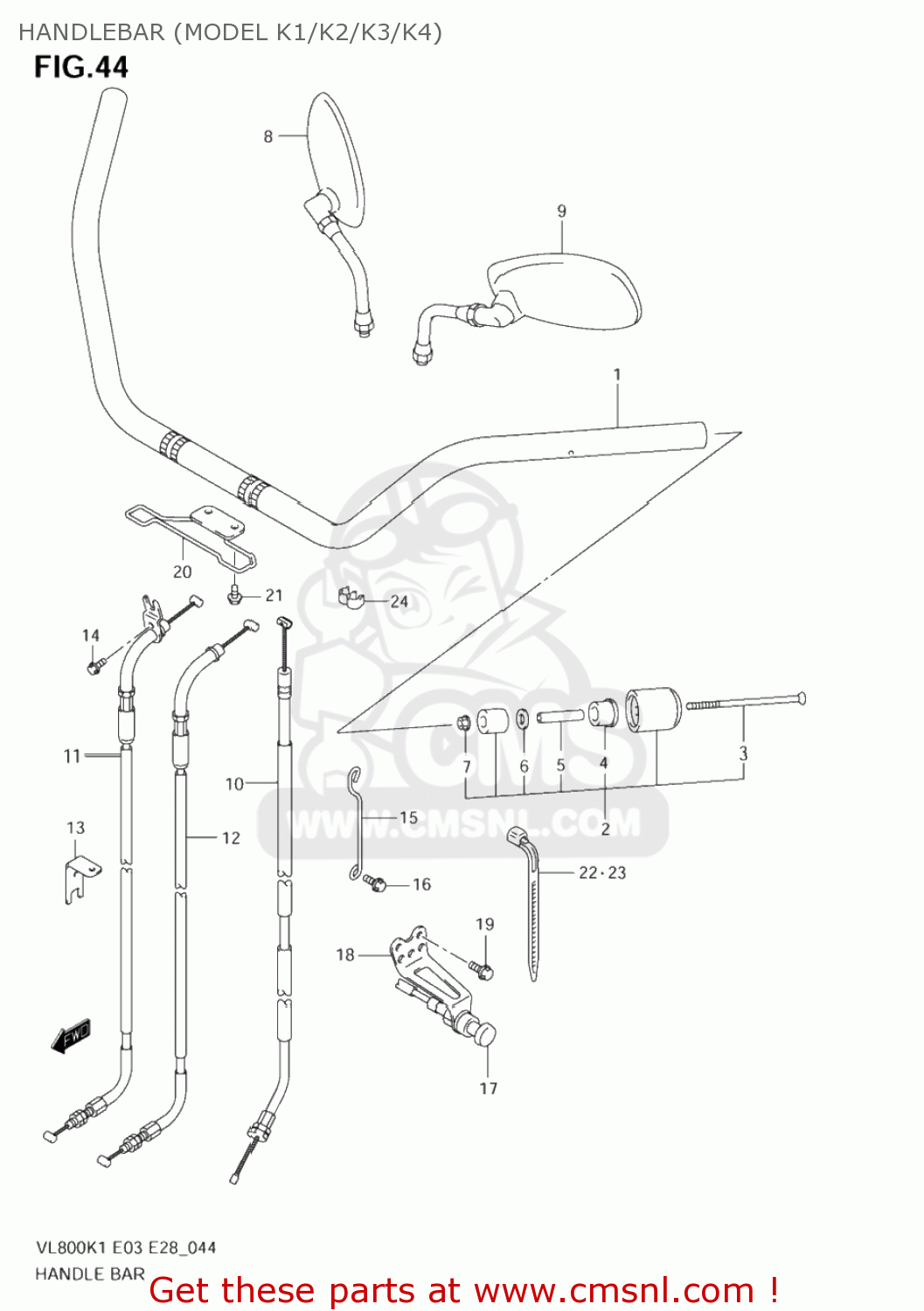

Handlebar (model k1/k2/k3/k4) diagram VL800 VOLUSIA 2004 (K4) USA (E03)

HANDLEBAR (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2004 (K4) USA (E03)

HANDLEBAR (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611141F00
ref: 1

HANDLEBAR

€ 255.50

2

5620041810
ref: 2

BALANCER SET,HANDLEBAR

€ 60.50

3

0912706017
ref: 3

SCREW(6X127)

€ 2.50

4

5627226D01
ref: 4

EXPANDER,HANDLE BALANCER NO.2

€ 5.00

5

5627609D01
ref: 5

SPACER,EXPANDER

€ 6.00

6

0916006121
ref: 6

WASHER(6.5X18X2)

€ 10.50

7

0915906024
ref: 7

NUT

€ 2.00

8

5650041F00
ref: 8
56500-41F01

MIRROR ASSY,RE

€ 60.50

9

5660041F00
ref: 9
56600-41F01

MIRROR ASSY,RE

€ 60.50

10

5820041F10
ref: 10

CABLE ASSY,CLUTCH

€ 58.00

11

5830041F00
ref: 11

CABLE ASSY,THROTTLE

€ 81.50

12

5830041F10
ref: 12

CABLE ASSY,THROTTLE NO.2

€ 81.00

13

5862341F00
ref: 13

PLATE,THROTTLE CABLE

€ 7.00

14

0155006163
ref: 14
01550-0616A

BOLT

€ 2.50

15-1

5862641F00
ref: 15-1

GUIDE,THROTTLE CABLE

€ 4.50

15-2

5862641F01
ref: 15-2

GUIDE,THROTTLE CABLE

€ 4.50

16

0913905033
ref: 16

SCREW(5X10)

€ 2.00

17

5841041F00
ref: 17

CABLE,STARTER

€ 35.50

18

5849141F00
ref: 18

BRACKET,STARTER CABLE

€ 19.00

19

0155006163
ref: 19
01550-0616A

BOLT

€ 2.50

20

5862041F00
ref: 20

GUIDE,CABLE

€ 14.50

21

0155006123
ref: 21
01550-0612A

BOLT

€ 2.50

22

0940719401
ref: 22

CLAMP(L:190)

€ 2.00

23

0940725401
ref: 23

CLAMP(L:235)

€ 4.00

24

0940800033
ref: 24

CLAMP

€ 2.50
