REAR COMBINATION LAMP (MODEL K1/K2/K3)

VL800 VOLUSIA 2004 (K4) USA (E03)

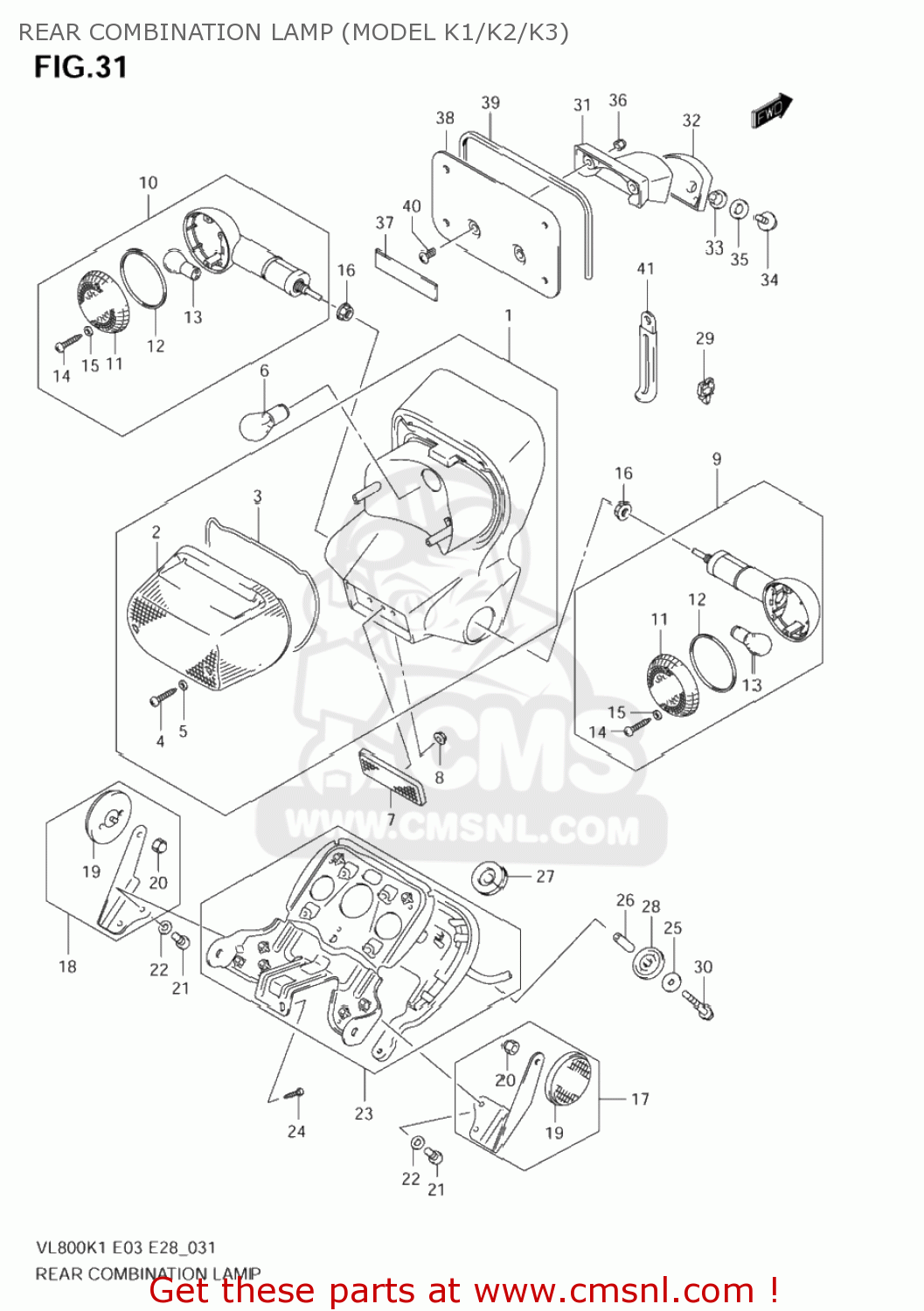

Rear combination lamp (model k1/k2/k3) diagram VL800 VOLUSIA 2004 (K4) USA (E03)

REAR COMBINATION LAMP (MODEL K1/K2/K3) VL800 VOLUSIA 2004 (K4) USA (E03)
REAR COMBINATION LAMP (MODEL K1/K2/K3) VL800 VOLUSIA 2004 (K4) USA (E03)
REAR COMBINATION LAMP (MODEL K1/K2/K3) VL800 VOLUSIA 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3573541F30999
ref: 1
35735-41F31-999
LAMP UNIT
€ 94.50
2
3571210F30
ref: 2
LENS
3571210F30
€ 50.00
3
3561380F00
ref: 3
GASKET,FR TURN SIGNAL LAMP (NAS)
€ 6.00
4
0321104207
ref: 4
SCREW
0321104207
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112083
ref: 6
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
7
3597007F00
ref: 7
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 20.50
8
0831620053
ref: 8
08316-2005A
NUT
0831620053
€ 2.00
9
3560341F00
ref: 9
LAMP ASSY,RR TURNSIGNAL,R
3560341F00
€ 98.50
10
3560441F00
ref: 10
LAMP ASSY,RR TURNSIGNAL,L
3560441F00
€ 98.50
11
3565238A21
ref: 11
LENS
3565238A21
€ 16.50
12
3561338A00
ref: 12
GASKET (NAS)
3561338A00
€ 11.50
13
0947112045
ref: 13
BULB(12V21W)
0947112045
€ 5.00
14
0321104253
ref: 14
03211-0425B
SCREW
0321104253
€ 2.00
15
3562743010
ref: 15
GASKET (NAS)
3562743010
€ 2.00
16
0831620103
ref: 16
08316-2010B
NUT
0831620103
€ 3.50
17
3507841F30
ref: 17
REFLEX REFLECTOR,R
3507841F30
€ 29.50
18
3507941F30
ref: 18
REFLEX REFLECTOR,L
€ 31.00
19
3597014A10
ref: 19
REFLEX REFLECTOR,RR
3597014A10
€ 12.00
20
0831320057
ref: 20
NUT
0831320057
€ 1.50
21
0211205123
ref: 21
02112-0512A
SCREW
0211205123
€ 1.50
22
0832101053
ref: 22
08321-0105A
LOCK,WASHER
€ 3.00
23
3571841F00
ref: 23
SOCKET & CORD ASSY
€ 171.00
24
0321105163
ref: 24
03211-0516A
SCREW
0321105163
€ 1.50
25
0916006088
ref: 25
WASHER(6.5X20X1.6)
0916006088
€ 2.00
26
0918006275
ref: 26
SPACER(6.5X9X23)
0918006275
€ 2.50
27
0930810017
ref: 27
GROMMET
€ 3.50
28
0932009046
ref: 28
CUSHION
0932009046
€ 7.00
29
0940311313
ref: 29
CLAMP
0940311313
€ 2.50
30
0155006353
ref: 30
01550-0635A
BOLT
0155006353
€ 2.50
31
3592841F00
ref: 31
STAY,LICENSE PLATE HOLDER
3592841F00
€ 101.00
32
3592941F00
ref: 32
CUSHION,LICENSE HOLDER STAY
3592941F00
€ 29.00
33
0916906077
ref: 33
WASHER
0916906077
€ 4.50
34
0155006303
ref: 34
01550-0630A
BOLT
0155006303
€ 2.50
35
0916006109
ref: 35
WASHER(6.5X18X1.6)
0916006109
€ 2.00
36
0831310067
ref: 36
NUT
0831310067
€ 2.00
37
3365226E00
ref: 37
PROTECTOR(20X90)X1.0
3365226E00
€ 3.00
38
6346141F30
ref: 38
63461-41F31
HOLDER,LICENSE
€ 56.00
39
9463519C00
ref: 39
MOLDING
9463519C00
€ 6.00
40
0214206163
ref: 40
02142-0616A
SCREW
0214206163
€ 2.50
41
0940406432
ref: 41
CLAMP(L:65)
0940406432
€ 2.50
