SECOND AIR (MODEL K1/K2/K3/K4)

VL800 VOLUSIA 2004 (K4) USA (E03)

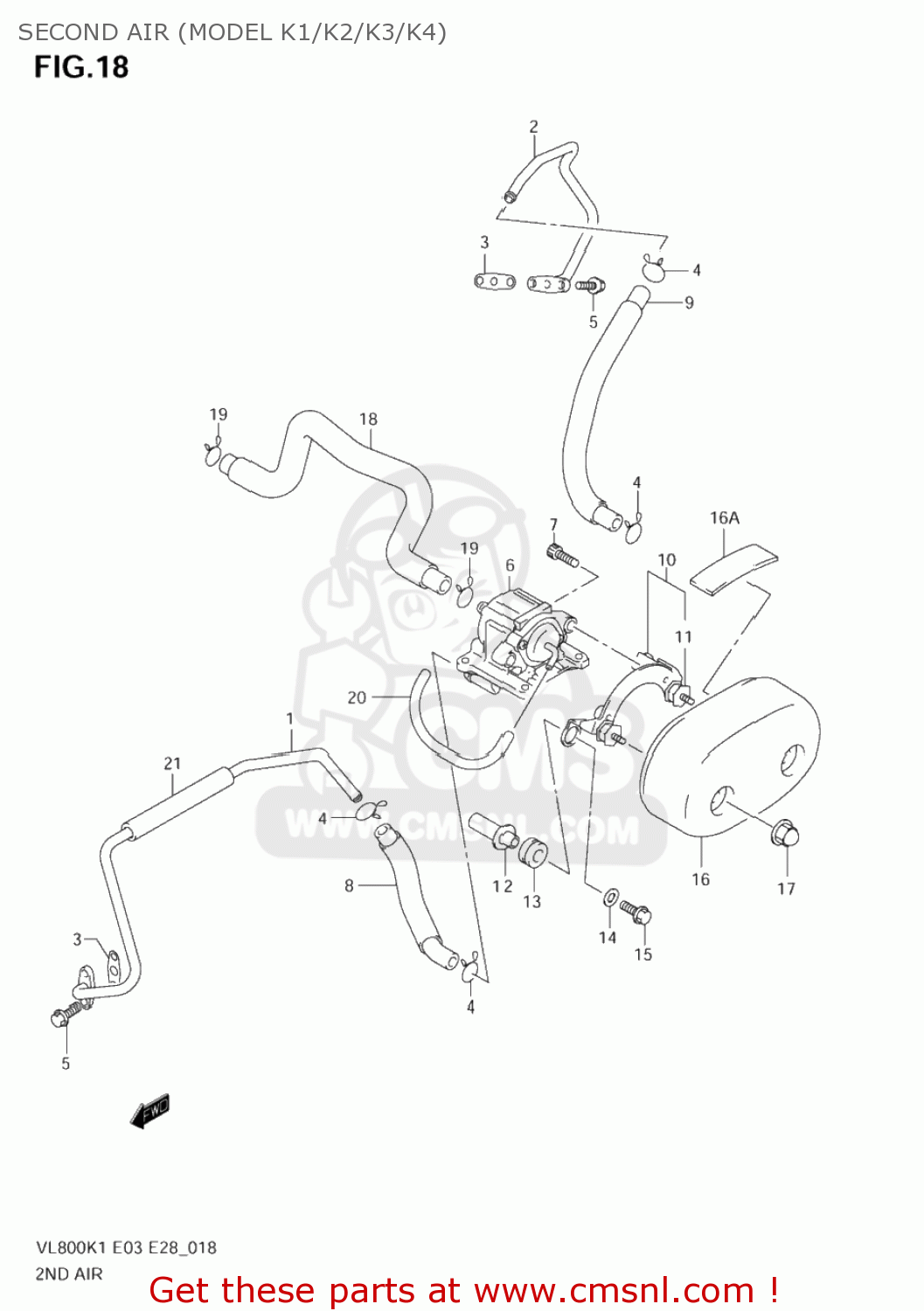

Second air (model k1/k2/k3/k4) diagram VL800 VOLUSIA 2004 (K4) USA (E03)

SECOND AIR (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2004 (K4) USA (E03)

SECOND AIR (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1841041F10
ref: 1

PIPE,2ND AIR FR

€ 0.00

2

1842041F10
ref: 2

PIPE,2ND AIR RR

€ 0.00

3

1844145C01
ref: 3

GASKET,2ND AIR PIPE (NAS)

€ 6.00

4

0940115101
ref: 4

CLIP

€ 2.00

5

0154706167
ref: 5

BOLT

€ 2.00

6

1845041F00
ref: 6
18450-41F01

VALVE ASSY,2ND

€ 164.00

7

0713006203
ref: 7
07130-0620B

BOLT,CRKCASE,R

€ 3.00

8

1846141F00
ref: 8

HOSE,2ND AIR VALVE FR

€ 73.00

9

1847141F00
ref: 9

HOSE,2ND AIR VALVE RR

€ 92.00

10

1861041F00
ref: 10

BRACKET,2ND AIR SPRT

€ 59.00

11

1778841F00
ref: 11

BOLT,2ND AIR COV

€ 6.50

12

1862041F00
ref: 12

SPACER,2ND AIR SPRT BRKT

€ 6.50

13

0932010015
ref: 13

CUSHION

€ 2.50

14

0916006141
ref: 14

WASHER(6.5X20X1)

€ 2.00

15

0155006553
ref: 15
01550-0655B

BOLT, HYDRAULIC UNIT NO.2

€ 2.00

16

1878141F00
ref: 16

COVER,2ND AIR

€ 38.00

16A

1878541F00
ref: 16A

SHEET,2ND AIR COVER

€ 5.50

17

0831320057
ref: 17

NUT

€ 1.50

18

1871141F00
ref: 18

HOSE,2ND AIR CLEANER

€ 31.00

19

0940115101
ref: 19

CLIP

€ 2.00

20

0935535755600
ref: 20

HOSE(3.5X7.5X600)

€ 10.00

21

1841941F00
ref: 21

PROTECTOR,2ND AIR PIPE FR

€ 18.50
