MAGNETO (MODEL K5)

VL800 VOLUSIA 2004 (K4) USA (E03)

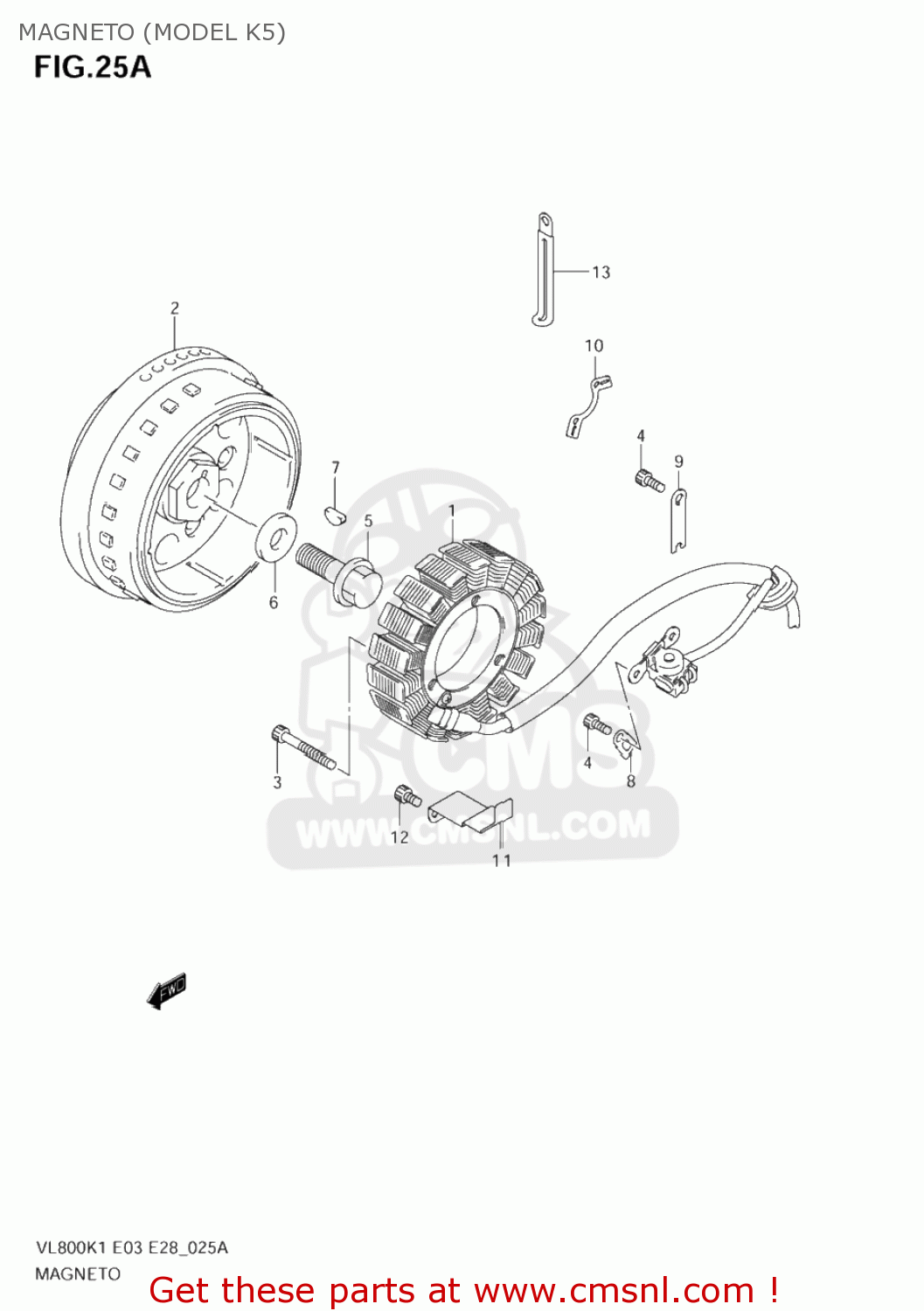

Magneto (model k5) diagram VL800 VOLUSIA 2004 (K4) USA (E03)

MAGNETO (MODEL K5) VL800 VOLUSIA 2004 (K4) USA (E03)
MAGNETO (MODEL K5) VL800 VOLUSIA 2004 (K4) USA (E03)
MAGNETO (MODEL K5) VL800 VOLUSIA 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3210141F10
ref: 1
STARTER ASSY
€ 400.50
2
3210241F10
ref: 2
ROTOR ASSY
€ 413.00
3
0713006403
ref: 3
07130-0640B
BOLT
0713006403
€ 3.50
4
0713005103
ref: 4
07130-0510B
BOLT
€ 2.00
5
0910314001
ref: 5
BOLT(14X43)
0910314001
€ 7.00
6
0916014021
ref: 6
WASHER(14X29X4)
0916014021
€ 5.00
7
0942005007
ref: 7
KEY
0942005007
€ 3.00
8
3149745000
ref: 8
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
9
3237138A10
ref: 9
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
10
3237141F00
ref: 10
CLAMP,MAGNETO LEAD
€ 2.00
11
3237145C00
ref: 11
CLAMP,MAGNETO LEAD WIRE
3237145C00
€ 3.00
12
0713006103
ref: 12
07130-0610B
BOLT,VAC.PIPE
€ 2.50
13
0940408206
ref: 13
CLAMP(L:65 T:0.8)
0940408206
€ 3.50
