REAR FENDER (VL800ZK4/ZK5)

VL800 VOLUSIA 2004 (K4) USA (E03)

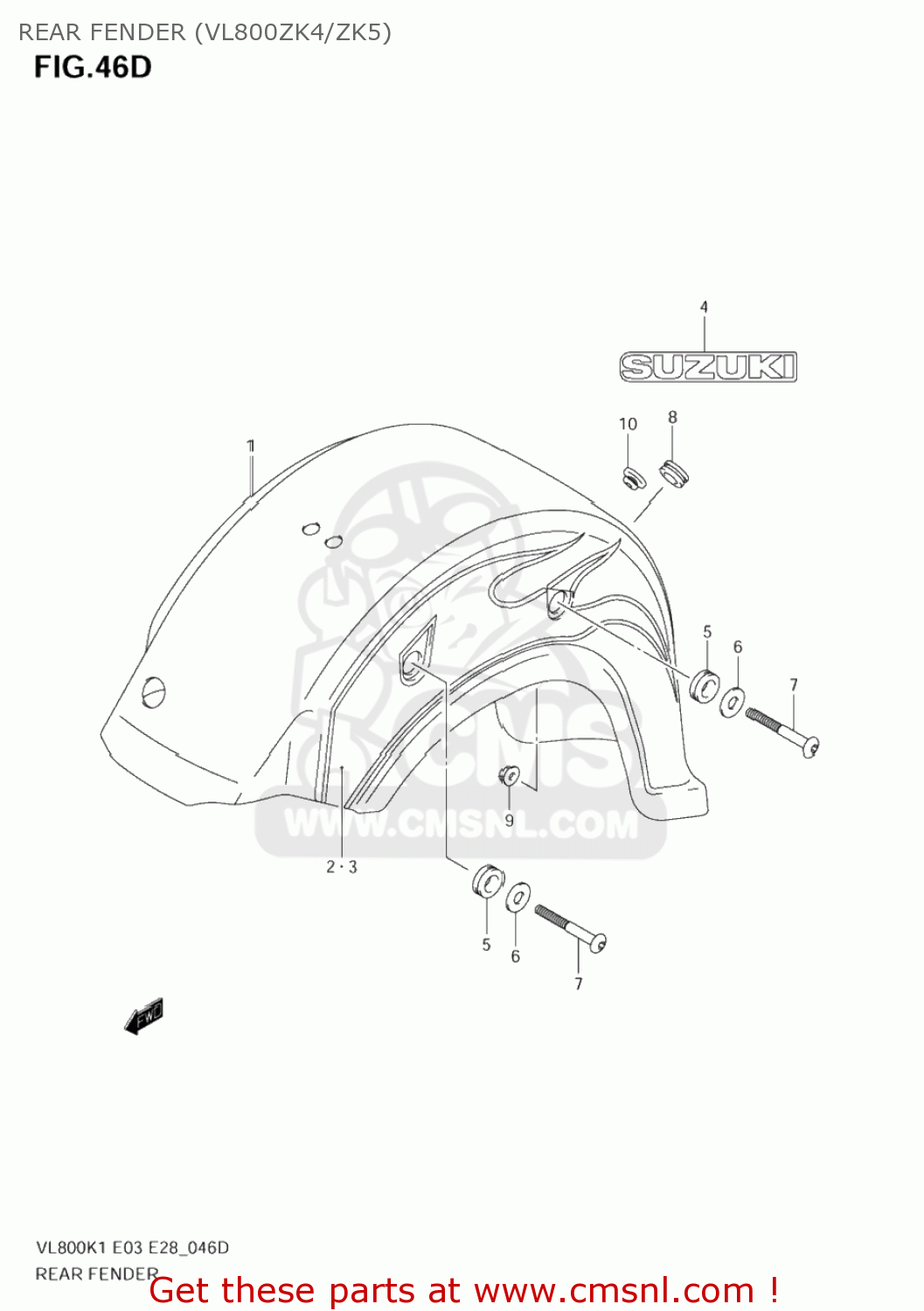

Rear fender (vl800zk4/zk5) diagram VL800 VOLUSIA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311041F60YAU
ref: 1-1

FENDER,RR

€ 547.50

1-2

6311041FD0YU7
ref: 1-2

FENDER,RR

€ 537.50

2-1

6817041F30AWC
ref: 2-1

TAPE SET,RR FENDER,R

€ 63.50

2-2

6817041F50CEN
ref: 2-2

TAPE SET,RR FENDER,R

€ 113.50

3-1

6818041F30AWC
ref: 3-1

TAPE SET,RR FENDER,L

€ 66.50

3-2

6818041F50CEN
ref: 3-2

TAPE SET,RR FENDER,L

€ 113.50

4-1

6817126F00NV8
ref: 4-1

EMBLEM,SUZUKI

€ 8.00

4-2

6817141F00CHF
ref: 4-2

EMBLEM,SUZUKI

€ 7.00

4719124F00
ref: 5

CUSHION,FRAME COVER UPR RR

€ 3.00

0916015002
ref: 6

WASHER(15.5X26X2.3)

€ 2.00

6316141F00
ref: 7

BOLT,RR FENDER

€ 5.00

0932015008
ref: 8

CUSHION

€ 3.50

0831610083
ref: 9
08316-1008B

NUT

€ 3.00

0932110007
ref: 10

CUSHION

€ 4.50
