CAMSHAFT - VALVE

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

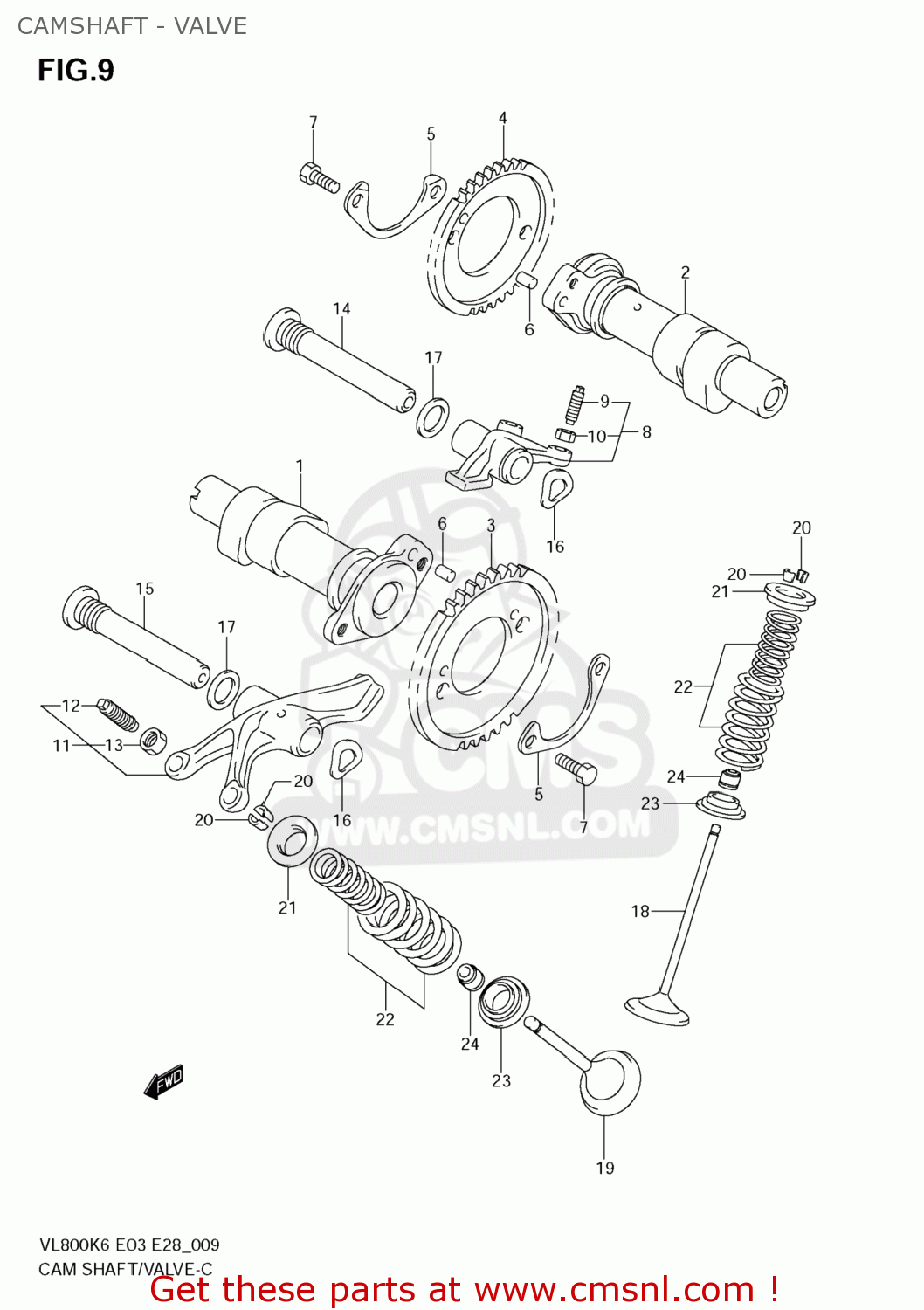

Camshaft - valve diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

CAMSHAFT - VALVE VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

CAMSHAFT - VALVE VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1271141F00
ref: 1

CAMSHAFT,FR

€ 162.50

2

1271341F00
ref: 2

CAMSHAFT,RR

€ 162.50

3

1274141F00
ref: 3

SPROCKET,CAMSHAFT

€ 35.50

4

1274137400
ref: 4

SPROCKET,CAMSHAFT(NT:42)

€ 34.50

5

1274744001
ref: 5

WASHER,SPROCKET

€ 2.00

6

0422105109
ref: 6

PIN

€ 1.50

7

0911106027
ref: 7

BOLT(6X12.5)

€ 1.50

8

1284038A10
ref: 8

ARM COMP,INTAKE VALVE ROCKER

€ 46.00

9

1284238A00
ref: 9

SCREW,TAPPET ADJUSTING

€ 4.00

10

1284332400
ref: 10

NUT,ADJUSTING SCREW

€ 2.50

11

1285038A10
ref: 11

ARM,EXHAUST VALVE ROCKER FR

€ 60.50

12

1284238A00
ref: 12

SCREW,TAPPET ADJUSTING

€ 4.00

13

1284332400
ref: 13

NUT,ADJUSTING SCREW

€ 2.50

14-1

1286138A01
ref: 14-1

SHAFT,INTAKE VALVE ROCKER ARM

€ 30.00

14-2

1286139G00
ref: 14-2

SHAFT,VALVE ROCKER ARM

€ 24.00

14-2

1286139G00
ref: 14-2

SHAFT,VALVE ROCKER ARM

€ 24.00

15-1

1287138A01
ref: 15-1

SHAFT,EXHAUST VALVE ROCKER ARM

€ 27.00

15-1

1287138A01
ref: 15-1

SHAFT,EXHAUST VALVE ROCKER ARM

€ 27.00

15-2

1287139G00
ref: 15-2

SHAFT,VALVE ROCKER ARM

€ 20.50

15-2

1287139G00
ref: 15-2

SHAFT,VALVE ROCKER ARM

€ 20.50

16

0916412018
ref: 16

WASHER

€ 1.50

17

0916814002
ref: 17
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

18

1291138A03
ref: 18

VALVE,INTAKE

€ 23.00

19

1291238A03
ref: 19

VALVE,EXHAUST

€ 50.50

20

1293224400
ref: 20

COTTER,VALVE

€ 2.00

21

1293133201
ref: 21

RETAINER,VALVE SPRING

€ 5.50

22

1292038A00
ref: 22

SPRING SET,VALVE

€ 10.50

23

1293333201
ref: 23

SEAT,VALVE SPRING

€ 4.50

24

0928905015
ref: 24

SEAL,OIL(5.5X11X8.2)

€ 6.50
